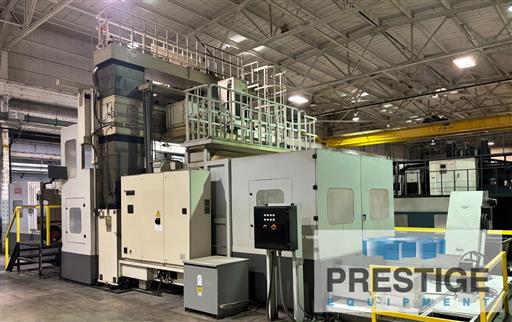

Prestige Equipment is the world's leading provider of SNK RB200F CNC 5-Axis Bridge Mill & machine tools & fabricating equipment. Take a look at our wide selection of new and used CNC Bridge Type Vertical Machining Centers (VMC) for sale.
Product Specifications
Features:
✓
Installed 2015
✓
Fanuc 31i-A CNC Control
✓
40-Position ATC
✓
157" x 78" Table
✓
2-Axis Swivel Spindle
✓
Thru-Spindle Coolant
✓
Chip Conveyor
Product Specifications
CAPACITIES:
X-Axis Travel
167"
Y-Axis Travel
114"
Z-Axis Travel
23"
W-Axis
33"
B-Axis, Spindle Tilt
+/-95 Degrees
C-Axis, Spindle Rotation
360 Degrees
Spindle Speeds
6,000 RPM
Spindle Drive Motor
25 HP
Spindle Taper
50
Tool Changer
40 ATC
Table Size
157" x 79?
Table Weight Capacity
33,000 Lbs.
Equipped With:
Fanuc 31i-A CNC Control
40-Position ATC
157" x 78" Table
2-Axis Swivel Spindle
400 PSI Thru-Spindle Coolant
Chip Conveyor
Features:
✓
Installed 2015
✓
Fanuc 31i-A CNC Control
✓
40-Position ATC
✓
157" x 78" Table
✓
2-Axis Swivel Spindle
✓
Thru-Spindle Coolant
✓
Chip Conveyor
