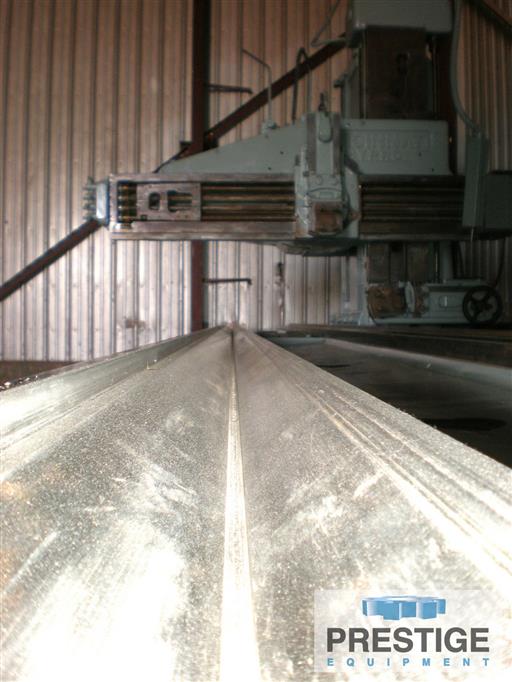

Cincinnati Hypro 36" x 38" x 336" Planer
Model:
Planer
Age:
N/A
Ref#:
43916
Prestige Equipment is the world's leading provider of Cincinnati Hypro 36" x 38" x 336" Planer & machine tools & fabricating equipment. Take a look at our wide selection of new and used Openside Planers for sale.
Product Specifications
Features:
✓
Cast Iron Vee ways for table
✓
2 Rail Heads, (1 complete w/clapper box, 1 missing parts)
✓
1 Side Head w/clapper box
✓
Auto Recirculating Lube System
✓
Power Feeds and Rapid Traverse on all Heads
✓
Operator's Pendant Control
Product Specifications
Specifications:
Area of Table, Working
36" x 324"
Area of Table, Overall
36" x 350"
Maximum Table Stroke................... 324"
324"
Maximum Under Rail..................... 38"
38"
Maximum Planing Width.................. 36"
36"
Vertical Travel of Rail Head Slide..... 15"
15"
Vertical Travel of Side Head........... 12"
12"
All Heads Swivel (left or right)....... 45°
45°
Equipped With:
Cast Iron Vee ways for table
2 Rail Heads, (1 complete w/clapper box, 1 missing parts)
1 Side Head w/clapper box
Auto Recirculating Lube System
Power Feeds and Rapid Traverse on all Heads
Operator's Pendant Control
Electrics:
All G.E. Drive System
50 HP Motor Generator Set
25 HP D.C. Motor (direct)
220/440VAC / 3 Phase / 60 Hz / 60/120 AMP
1765 RPM / 107/240V / 88/212 AMP / 250-1200 RPM
Dimensions:
Machine Height, w/out Pendant
10' 4"
Width, w/out drive
120"
Length, installed
56' 6"
Length, shipping
29' 2"
Estimated Weight
125,000 lbs
Features:
✓
Cast Iron Vee ways for table
✓
2 Rail Heads, (1 complete w/clapper box, 1 missing parts)
✓
1 Side Head w/clapper box
✓
Auto Recirculating Lube System
✓
Power Feeds and Rapid Traverse on all Heads
✓
Operator's Pendant Control
