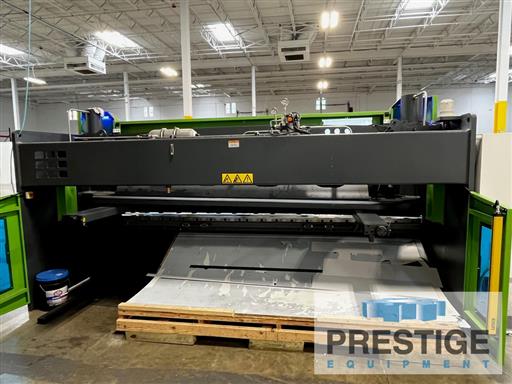

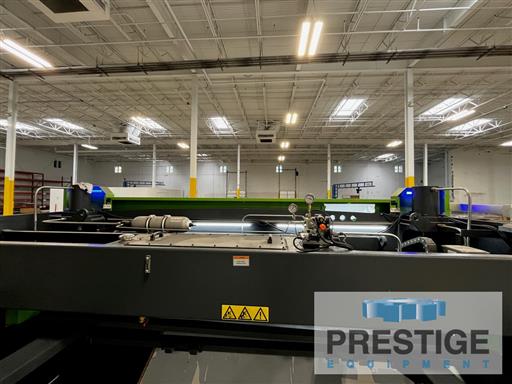

Prestige Equipment is the world's leading provider of AccurlUSA MS8-8 x 4000 Hydraulic Squaring Shear & machine tools & fabricating equipment. Take a look at our wide selection of new and used Power Squaring Shears for sale.
Product Specifications
Features:
✓

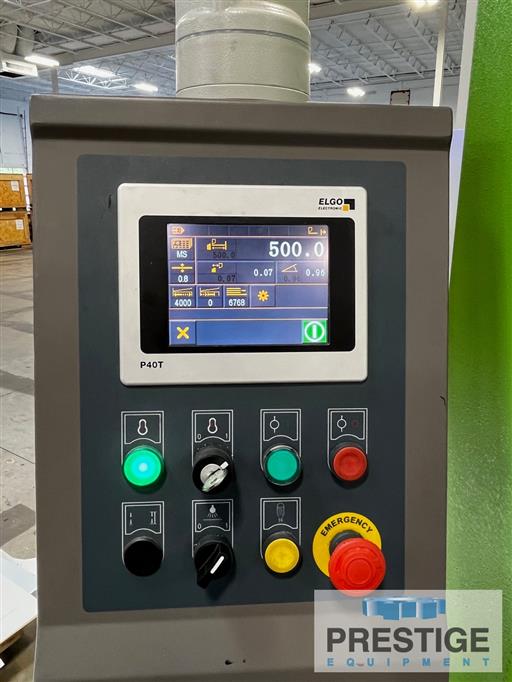

ELGO P40 Control
✓
36" Squaring Arm with Scale and Flip Stop for Front Gauging
✓
Automatic Blade Gap Adjustment
✓
Automatic Rake Angle Adjustment
✓
39" Front Operated Back Gauge
✓
Built in Safety Systems (Light Guards & Laser Beam Safety Photocells)
Product Specifications
CAPACITY:
Capacity, MS
1/4"
Cutting Length
13'
Strokes Per Minute
20
Back Gauge Range
39"
Number of Hold Downs
14
Blade Length
158"
Working Table Height
30"
Hold Down Force
65 Tons
Main Motor
15 HP
Approximate Shipping Weight
24,450 Lbs
Equipped With:
ELGO P40 Control
36" Squaring Arm with Scale and Flip Stop for Front Gauging
Automatic Blade Gap Adjustment
Automatic Rake Angle Adjustment
39" Front Operated Back Gauge
Built in Safety Systems (Light Guards & Laser Beam Safety Photocells)
Flush Floor
Features:
✓
ELGO P40 Control
✓
36" Squaring Arm with Scale and Flip Stop for Front Gauging
✓
Automatic Blade Gap Adjustment
✓
Automatic Rake Angle Adjustment
✓
39" Front Operated Back Gauge
✓
Built in Safety Systems (Light Guards & Laser Beam Safety Photocells)
