Doral 6048 6-Wheel Structural Plate Shot Blast System
Model:
6048
Age:
2016
Ref#:
43956
Prestige Equipment is the world's leading provider of Doral 6048 6-Wheel Structural Plate Shot Blast System & machine tools & fabricating equipment. Take a look at our wide selection of new and used Airless Peening Shot Blast for sale.
Product Specifications
Product Specifications
MAXIMUM WORK:
Maximum Plate Width
62"
Maximum I-Beam
30" x 48"
Misc Parts
Based On work fixture Design
WORK CONVEYORS:
Speed, Variable
Powered
Roller Width
68"
Total Length, Entry & Exit
103'
Length, Entry
40'
Length, Machine
26'
Length, Exit
40'
Roller Spacing Centerlines
36"
Floor to Top Of Rollers
36"
Roller Diameter
4.5"
BLAST CABINET DIMENSIONS:
Length
21'
Width
15'
Height
12'6"
Floorline To Top Of Elevator
16'6"
Pit, Width
15'
Pit, Length
26'
Height, Bottom to top of Elevator
20'
CABINET CONSTRUCTION:
12 to 14% Manganese Steel 1/2" Thick Blast Zone & Other Abrasive Contact areas
3/16" & 1/4" Thick Mild Steel Entry & Exit Vestibules
Length, Entry Vestibule
5'2"
Length, Blast Cabinet
8'
Length, Exit Vestibule
7'3"
Rubber curtains & cast poly finger seals provide abrasive retention in Vestibules
SHOT BLAST WHEELS:

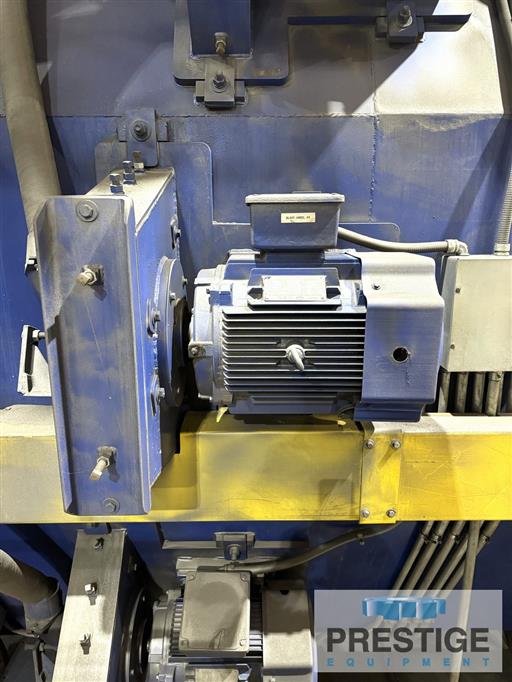

North Star Blast Wheels direct drive premium wear plate package
Horsepower
25 HP / 3600 PRM
No Of Blast Wheels
6
Position, top, bottom, center
2,2,2
Diameter
16"
(8) Blades Center Feed
1/2" Thick 1-Piece front & rear Manganese steel liners
1" Thick cat wear alloy liners top & end liners 5-piece
Air Force One 30 HP Abrasive Blow Off
ABRASIVE RECOVERY SYSTEM:
Lower & upper screw conveyors
Bucket elevator with cast iron buckets
Single lip airwash Seperator with screen trays
Adjustable air volume
2 HP Screw conveyor
5 HP Bucket Elevator
DUST COLLECTION:
SSC-12 SOC Cartridge Dust Collector Blower 20 HP, 7,200 CFM
SSC-20 SOC Cartridge Dust Collector Blower 25 HP, 10,000 CFM
ELECTRICAL CONTROLS:
Nema 12 floor mounted cabinet, 72" H x 48" W
Main Breaker, 480 V, 3 PH,60HZ, 400 AMP, All IE Control Components
120 V Control Voltage
E-STOPS Located On main Panel & Work Conveyors
NOTE:
Excellent Condition, Under 100 Blasting Hours
