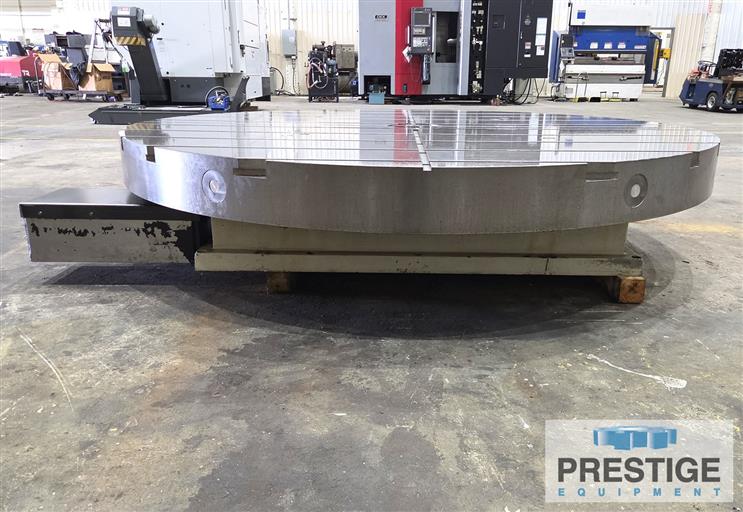

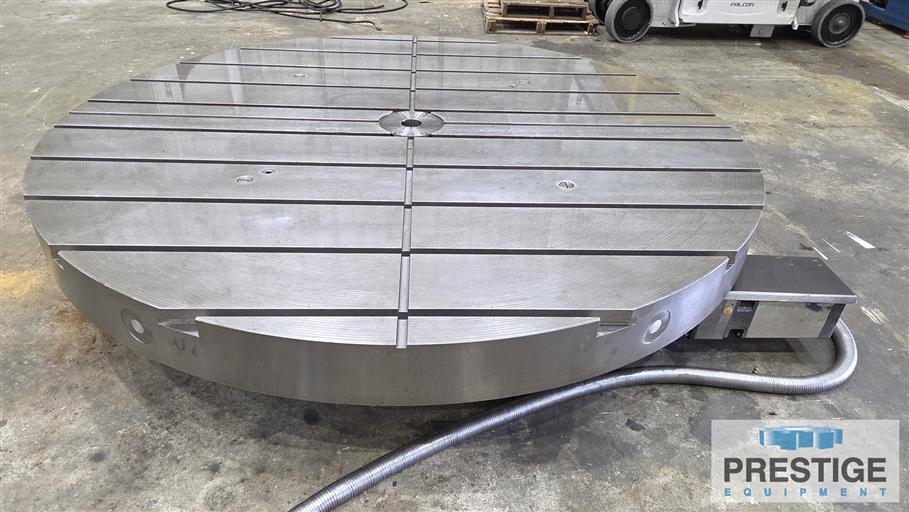

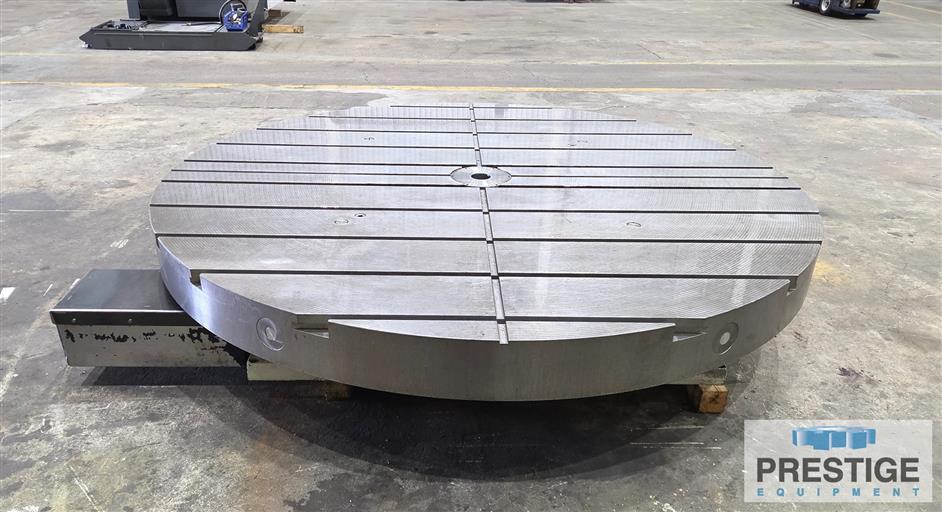

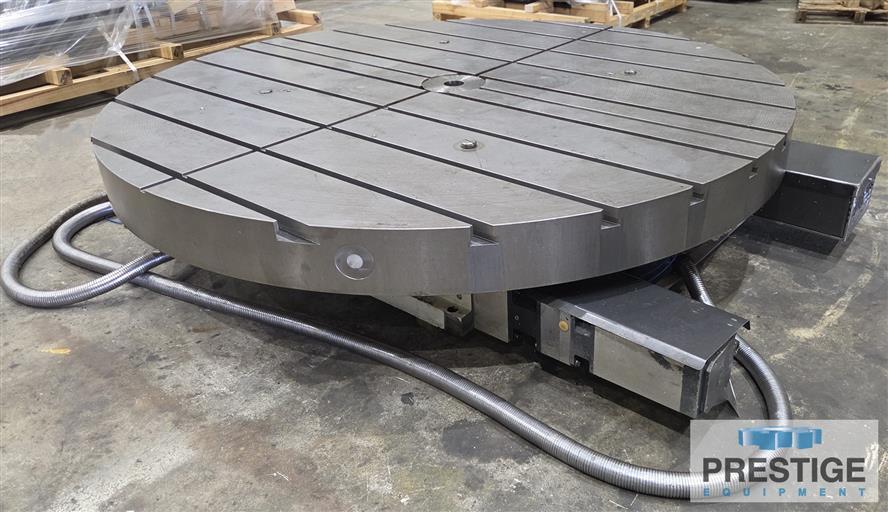

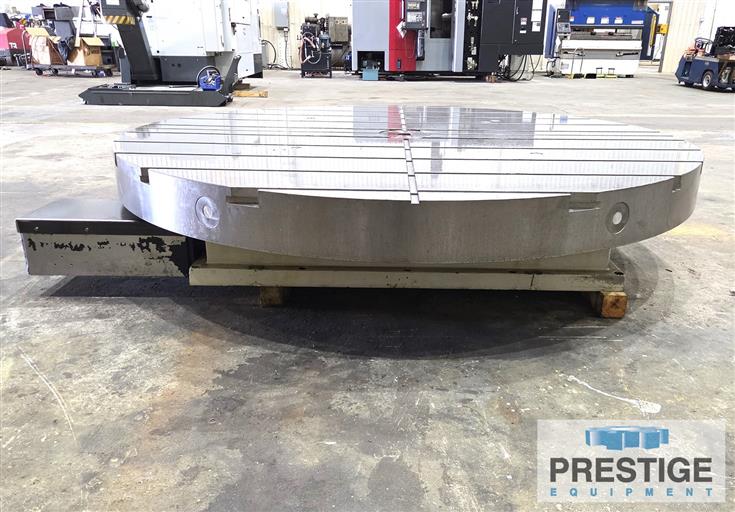

98" FIBRO B-Axis Contouring CNC Rotary Table

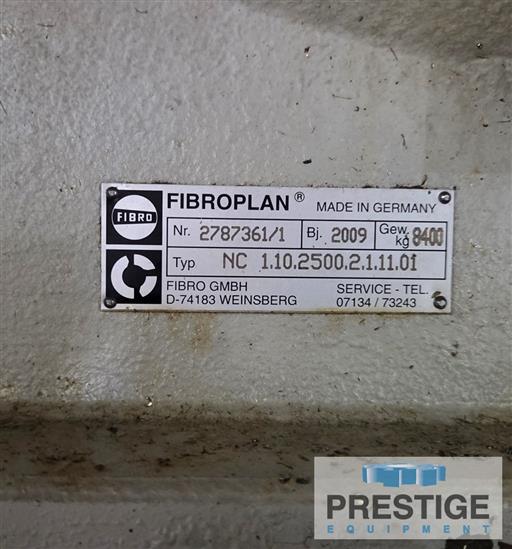

Model:
NC1.10.2500.2.1.11.01
Age:
2009
Ref#:
45150
Prestige Equipment is the world's leading provider of 98" FIBRO B-Axis Contouring CNC Rotary Table & machine tools & fabricating equipment. Take a look at our wide selection of new and used CNC Rotary & Index Tables for sale.
Product Specifications
Features:
✓
Full B-Axis
✓
Positioning & Circular Milling
✓
Vertical & Horizontal Capability
✓
Worm Drive
✓
Hydraulic Clamping
✓
Heidenhain Encoder
✓
High Accuracy
Product Specifications
SPECIFICATIONS:
Table Diameter (Round)
98.42"
Table Indexing, B-Axis (Contouring)
.001 degrees

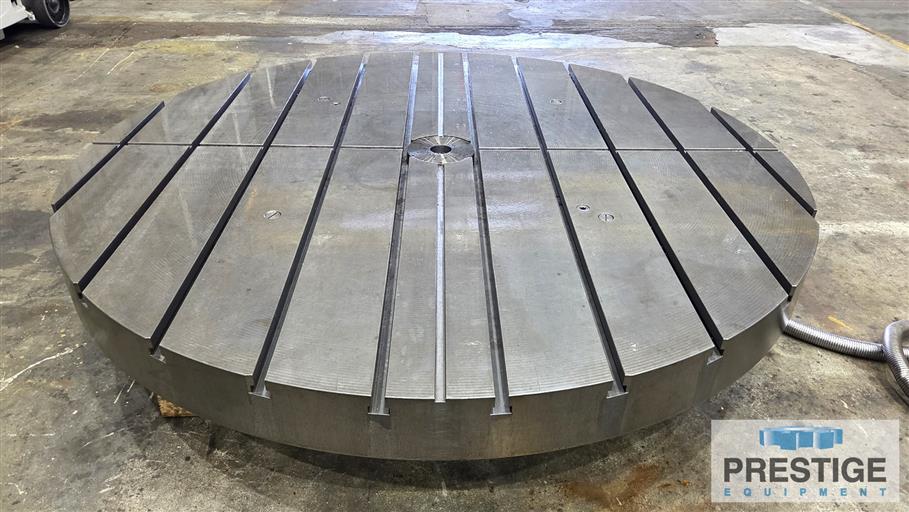

Number T-Slots
10
Center Bore
3.14"
Table Work Height
17.83"
Table Speed, Max.
1.875 RPM
Table Capacity, Horizontal
66,000 lbs.
Table Capacity, Vertical
26,400 lbs.
Table Weight, approx.
19,100 lbs.
Overall Dimensions
98" x 108" x 22" Ht.
Equipped With:
Full B-Axis
Positioning & Circular Milling
Vertical & Horizontal Capability
Worm Drive
Hydraulic Clamping
Heidenhain Encoder
High Accuracy
Note:
Table Was Used in a Precision Machining Operation with a Siemens 840D CNC Control
Excellent Condition. (Control is Not Included)
Very Low Hours!
Features:
✓
Full B-Axis
✓
Positioning & Circular Milling
✓
Vertical & Horizontal Capability
✓
Worm Drive
✓
Hydraulic Clamping
✓
Heidenhain Encoder
✓
High Accuracy
