CNC 5-AXIS MACHINING CENTERS / AEROSPACE PROFILERS

• CINCINNATI “High Performance” 5-Axis 3-Spindle CNC Aerospace Gantry-Type Profiler, Travels: X-324”, Y-110”, Z-28”, 480” Rail Length, Table Size: 324” x 120”, Spindle To Table 32.5”, 46” Rail To Table, 40” Distance Between Spindles, +/- 30 Degrees A/B Axis (Spindle Tilt), 100 HP Spindles, 10,000 RPM, CAT 50 Taper, Chip Conveyor, Cincinnati A2100 CNC Controls, S/N RC00C01010004, New 2001 VIEW VIDEO
• SNK HPS-120B 5-Axis Twin Pallet CNC High Speed Aerospace Profiler/Machining Center, Travels X-124”, Y-51.96”, Z-28.03”, Pallet Size 120” x 48”, A-Axis Spindle Swivel: -180/+45 Degrees, C-Axis Spindle Rotation: 360 Degrees, Horizontal Table Setup Position, Vertical Table Machining Position, 8800 Lb. Work Weight, 20,000 RPM, 39 HP, 60 ATC, HSK-80A Taper, Through Spindle Coolant, S/N A6K2301, New 2005 VIEW VIDEO
• (3) CINCINNATI V5-3000 5-Axis High Speed Aerospace Profiler/Machining Center, Travels: X-120”, Y-30”, Z-35”, Table Size 130″ X 30″, A-Axis Spindle Tilt: +/- 40 Degrees, B-Axis Spindle Tilt: +/- 40 DEGREES, 10-15,000 RPM, 21 ATC, HSK 63 Taper, SIEMENS ACRAMATIC 2100 5-AXIS CNC Control, Color Touch Screen, Through Spindle Coolant, (2) JORGENSEN Chip Conveyors, Oil Chiller, Rigid Tapping, S/N’s QF00A01000007, QF00A01000008 & QF00A01000005, New 2000

CNC 5-AXIS MACHINING CENTERS

• GROB G550 5-Axis Universal Machining Center: Siemens 840Dsl CNC Control, Travels: X-31.5”, Y-40.15”, Z-40.1”, (2) 27.56” Diameter Pallets, 2-Axis Tilting Rotary Table, A-Axis Table Swivel: -180/+45 Degrees, B-Axis Table Rotation: 0.001 Degrees, 16,000 RPM, 120 ATC, HSK-A63 Taper, 43 HP, KNOLL High Pressure Coolant System, Probe, Mist Collector, Oil Skimmer Chip Conveyor, New 2014 VIEW VIDEO
• (2) MAZAK VARIAXIS 630-5X II 5-Axis CNC Vertical Machining Centers, Mazatrol Matrix CNC Control, Travels: X-24.8”, Y-30.1”, Z-23.6”, (2) 19.7” x 19.7” Pallets, A-Axis Trunnion Table Tilt: +120/ -130 Deg., C-Axis Table Rotation: 0.001 Degrees, 18,000 RPM, 120 ATC, 35 HP, CAT 40 Taper, Mazak Superflow T8-1000 Through Spindle Coolant, Chip Conveyor, S/N 203493 (2008), S/N 195079 (2007) VIEW VIDEO

CNC 9-AXIS TURNING & MILLING CENTER

• MAZAK INTEGREX i-400ST CNC 9-AXIS TURNING AND MILLING CENTER, Matrix-2 CNC Control, 26.91″ Max. Swing/Machining Diameter, 69.80” Max. Machining Length, 4″ Max. Bar Work, Travels: X1-24.21″, X2-9.06″, Y-10.24″, Z1-62.40″, Z2-64.66″, Main Spindle: 12” Chuck, 3300 RPM, 40 HP; Sub Spindle: 10” Chuck, 4000 RPM, 35 HP, 12,000 RPM/30 HP B-Axis Milling Spindle with 240 Degree Swivel, 36 ATC, 9-Position Lower Turret, Tool Probe, MAZAK Super-Flow High Pressure Through Spindle Coolant, Chip Conveyor, S/N 234035, New 2011

CNC HORIZONTAL MACHINING CENTER CELL WITH PALLET SYSTEM, CONSISTING OF:

• (3) MAKINO A88 CNC Horizontal Machining Centers, Travels X-35.4”, Y-31.5”, Z-40”, 12,000 RPM, 244 ATC, 24.8”x 24.8” Pallets, 50 HP, 6600 Lb. Work Weight, High Pressure Through Spindle Coolant, Chip Conveyor, SN 178 (2000), SN 177 (2000), SN 128 (2000)
• (1) MAKINO A88E CNC Horizontal Machining Centers, Travels X-35.4”, Y-31.5”, Z-40”, 12,000 RPM, 244 ATC, 24.8”x 24.8” Pallets, 50 HP, 6600 Lb. Work Weight, High Pressure Through Spindle Coolant, Chip Conveyor, SN 457, New 2005
• WITH 32-Station In-Line Automatic Pallet System With 24.8”x 24.8” Pallets

CNC LATHES

• MAZAK Quick Turn Nexus 250-II CNC Turning Center, Mazatrol Nexus CNC Control, 17.32″ Swing, 10″ Chuck, 20.25″ Centers, 12-Position Turret, 3″ Bar, C-Axis, Live Milling, Y-Axis, 4000 RPM, 35 HP, S/N 215122, New 2005 VIEW VIDEO

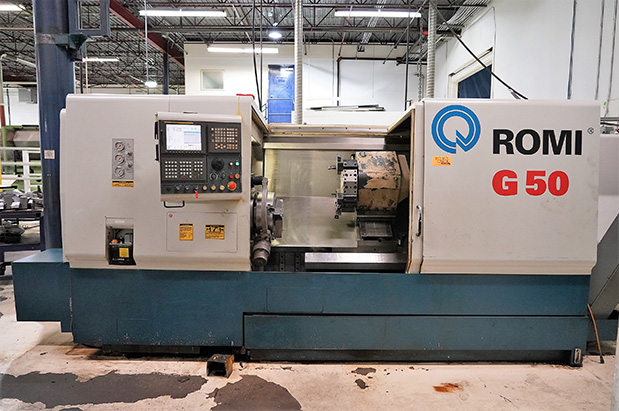

• ROMI G50 CNC Lathe, FANUC 21iTB CNC Control, 26″ Swing, 60″ Centers, 21.65″ Turning Diameter, 4.52″ Bar Capacity, 2000 RPM, 50 HP, 12-Position Turret, Programmable Tailstock, S/N 016.005785-401, New 2005 VIEW VIDEO
• ROMI G50 CNC Lathe, FANUC 21iTB CNC Control, 26″ Swing, 20″ Centers, 21.65″ Turning Diameter, 4.52″ Bar Capacity, 2000 RPM, 50 HP, 12-Position Turret, Programmable Tailstock, S/N 016.005786-401, New 2005 VIEW VIDEO
• (2) OKUMA Crown L1060 CNC Lathes, OSP-U10l CNC CONTROL 21.65″ Swing, 15.75″ Max. Turning Dia., 10.63″ Swing Over CS, 19.68″ Max. Turn Length, 12-Pos. Turret, 3.15″ Bore, 3500 RPM, Tailstock, Chip Conveyor, S/N 1767 & 1763 VIEW VIDEO 1 / VIEW VIDEO 2
• DAINICHI B82, 31″ Max. Turning Diameter, 82″ Max. Center Distance, 12-Position Turret, Programmable Tailstock, 60 HP, S/N 20043

CNC MACHINING CENTERS

• OKUMA V4020 3-Axis Vertical Machining Center, S/N 1028, Travels: X-40″, Y-40″, Z-20″, 47″ x 20″ Table, 20 ATC, 8000 RPM, 15 HP, CAT 40 Taper, OSP-U10M CNC Control, S/N 1028 VIEW VIDEO
• MAZAK H630N 4-Axis CNC Horizontal Machining Center, Travels: X-35.4, Y-31.5″, Z-40.2, (2) 24.8” x 24.8” Pallets, 40 ATC, 12,000 RPM, 50 HP, Through Spindle Coolant, Chip Conveyor, Mazatrol M-32 CNC Control, S/N 105837 VIEW VIDEO

INSPECTION

• ZEISS Accura Bridge Type CMM, S/N 201309820107, Travels: X-44.24″, Y-70.86″, Z-39.37″, 99.8″ x 62.2″ Floor Plate, New 2013
• MITUTOYO CRT-A916 Crystal Apex Bridge Type CMM, S/N 0023205, CRYSTAL APEX Bridge Type CMM, Travels: X-35.6″, Y-63.2″, Z-23.8″, RENISHAW PH10MQ Probe
• MITUTOYO B-241 Bridge Type CMM, S/N 800808, Travels: X- 27.55″, Y- 39.37″, Z-19.68″, 59.84″ X 51.18″ Granite Table, RENISHAW PH10 Probe
• MITUTOYO BHN710 Bridge Type CMM, S/N 0623708, 59.84″ X 51.18″ Granite Table, Travels: X-27.55″, Y-39.37″, Z-23.62″, RENISHAW PH10 Probe

CRANES

• 3-Ton P & H MODEL 3 Travelling Bridge Crane, Single Girder, Underslung, Pendant Control, S/N 6729,

MISCELLENEOUS MACHINERY & SHOP SUPPORT

• 2007 PUCKMASTER LT500 Hydraulic Briquette Machine, S/N LT500-07-1039
• 2004 ZOLLER Smile 500 Tool Presetter S/N VSM500-00081
• ZOLLER Smile 600 Tool Presetter, S/N SMU-642MW-00093
• 2008 ETM ISSNT INDCL110 Shrinker S/N 320341
• 10-TANK ANODIZING LINE: 14’6″L x 3’W X 5’D Stainless Steel Tank, 1/2/6/9 Heated Tanks, 1-2-3-4-5-6-8-9 Circulation Tanks, Rectifier Tank 6, P & H Manual Pendant Controlled 3-Ton Single Girder Underslung Bridge Crane, RPE DC Rectifier & Filter System
• 10-TANK MANUAL TEST ANODIZING LINE: 40″L x 12″ W x 16″ D, Stainless Steel Tank, 1/2/5/8/9 Stainless Steel Tanks, Circulation All Tanks
• ENGINEERED AIR 2-Door Dry Filter Paint Booth
• KING KC-45 Bench Top Milling & Drilling Machine, S/N 330763, New 2003

PLUS: TOOLING, TOMBSTONES, VISES, SHELVING, SHOP SUPPORT, and MUCH, MUCH, MORE!
