* PRE-AUCTION OFFERS ARE INVITED *

FEATURED ASSETS:

LASERS:

• 2020 Bodor P Series 4 kW Fiber Laser, 4000 MM x 2000 MM, X/Y-axis Position Accuracy: 0.0011″, X/Y Axis Repositioning Accuracy: 0.0007″, Max Acceleration: 1.5 G, Table Load Bearing: 1600 kg, Power Capacity: 52.1 KVA/ 79.1 A, Machine Weight: 14000 kg w/ IPG m# YLS-4000-K Laser System, 303 Run Time Hours VIEW VIDEO / VIEW LOT #6
• Mazak Turbo-X48 CO2 Laser, 1000 W, Travels: 104.3″ x 50″ x 3.9″, Max. Work Piece Size: 98.4″ x 49.2″ x 0.35″, Mazatrol L-32B CNC, Orion RKE3750B-V Chiller, S/N: 113336 Machine Weight: 17,637 lbs,  VIEW LOT #5

CNC PUNCH:

• Trumpf TC200 CNC Punch,22 Ton, 50” x 80” Hydraulic Punch, .25” Max. Sheet Thickness, Trumpf CNC-CC220, 16-Station Automatic Tool Changer (Linear Magazine), Ball Transfer Table, Assorted Tool Cartridges, Tooling (1) 5 Drawer Lista Cabinet and (1) 7 Drawer Kennedy Cabinet w/ Contents Consisting of: Obounds and Multi-Set Tool Pre-setter SOLD!

CNC HORIZONTAL MACHINING CENTERS:

• Haas EC400 CNC Horizontal Machining Center, Haas CNC Control, Travels: X-22″, Y-25″, Z-22″, (2) 15.7″ x 15.7″ Pallets, Automatic Pallet Changer, 24 Position ATC, 30 HP Motor, 8100 Max. RPM, CAT 40 Spindle Taper, Probe, Hand Pendant, Max Torque 90 ft-lb @ 2000 RPM, High Pressure Coolant, Chip Conveyor, Dimensions: 93″ x 105″ x 58″, Weight: 16,000 Lbs., Hours: 6,503, S/N 2054108, [2013] (NOTE: Tombstone and Tooling NOT Included) VIEW VIDEO / VIEW LOT #26
• (2) Haas EC300 CNC Horizontal Machining Center,Haas CNC Control, Travels: X-20″, Y-18″, Z-14″, (2) 11.8″ x 11.8″ Pallets, Automatic Pallet Changer, 24 Position ATC, 8000 Max. RPM, 20 HP Motor, Hand Pendant, High Pressure Coolant, Chip Conveyor, Dimensions: 93″ x 105″ x 58″, Weight: 16,000 Lbs., [2013], (NOTE: Tombstone and Tooling NOT Included) VIEW LOT #24 / VIEW LOT #25
• Toyoda FA400 CNC Horizontal Machining Center, Fanuc 16i-M CNC Control, Travels: X-19.7″, Y-19.7″, Z-23.6″, (2) 15.7″ x 15.7″ Pallets, Automatic Pallet Changer, 60-Position ATC, 14,000 Max. RPM, 40 Taper, High Pressure Coolant, Chip Conveyor, Machine Weight: 18,000 LBS, Hours: 13,583, S/N NM9216 [2000] VIEW LOT #8

PRESS BRAKES:

• Amada HFB-170-4 8-Axis CNC Hydraulic Press Brake, 187 Ton x 168” Max. Bending Length, 148” Between Housings, 17.7” Open Height, 16.1” Throat Depth, 7” Stroke Length, 15 HP, Operateur 8-Axis CNC Control, Flush Floor (Note: (9) Upper Tool Holders with Brake) VIEW VIDEO / VIEW LOT #23
• Niagara HBM-135-8-10 CNC Hydraulic Press Brake, 135 Ton x 120” Max. Bending Length, 102” Between Housings, 8” Stroke, 15” Open Height, 7” Throat Depth, 25 HP, Hurco Autobend10 CNC Control, Ram Speed: Approach: 125 IPM: Forming: 18- 62 IPM, Return: 125 IPM, Dimensions (L x W x H): 129″ x 55″ x 108″ VIEW LOT #3
• Trumpf V85S CNC Hydraulic Press Brake, 95 Ton, 8′ Long Bed, Synchronized 6 Axis: Y1, Y2, X2, R, Z1, Z2, CNC: Delem DA69 3D color videographic, Bending length: 2500 mm, Distance between uprights: 1750 mm, Throat depth: 420 mm, Max stroke cylinder: 365 mm, Max open height: 595 mm, Weight approx: 9050 kg, NOTE: Brake is currently not operational, has a motion board issue VIEW LOT #2

CNC VERTICAL MACHINING CENTER:

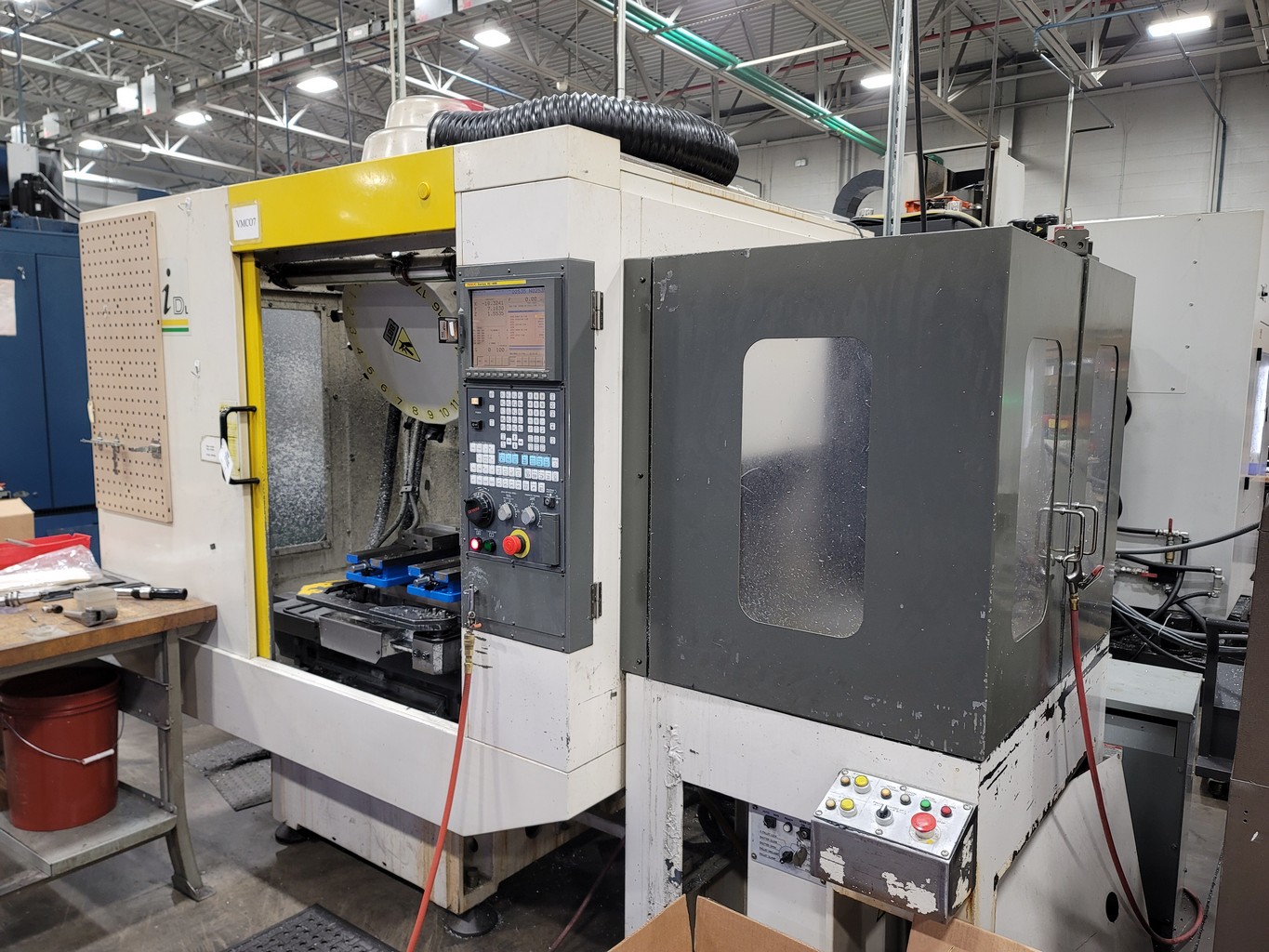

• Fanuc Robodrill Model A-T21iDL CNC Vertical Machining Center, Fanuc Series 16iMB CNC Control, 2-Station Pallet Shuttle, Table Size: 33.46″ x 16.14″, Travels: X-27.55″, Y-11.81″, Z-15.74″, Max. Table Work Weight: 660 LBS, 21-Position ATC, 30 Taper Spindle, 20,000 Max. RPM, Chip Conveyor, Machine Weight: 5500 LBS, S/N P037UP138, [2003] (NOTE: Vises and Tooling Not Included) VIEW LOT #7
• Tree VMC-500 CNC Vertical Machining Center,Travels: X-19.69″ Y-19.69″, Z-19.69″, Table Size: 31.5″ x 19.69″, 20-Position ATC, 40 Taper, 8000 RPM Max. Spindle Speed, 15 HP Motor, Tree (Siemens) PC-2100 CNC Control, Hand Pendant, S/N 980961060 [1998] VIEW LOT #12
• Tree VMC-750 CNC Vertical Machining Center,Travels: X-29.53″, Y-19.69″, Z-19.69″, Table Size: 39″ x 19.69″, 20-Position ATC, 40 Taper, 10,000 RPM Max. Spindle Speed, 15 HP Motor, Tree (Siemens) PC-2100 CNC Control, Hand Pendant, S/N 985961160 [1998] VIEW LOT #13

CNC SWISS-TYPE LATHES:

• Citizen L-20 CNC Swiss-Type Lathe, Cincom CNC Control, 0.79″ (20mm) Max. Machining Diameter, 7.87″ (200mm) Max. Machining Length, 0.31″ (8mm) Max. Drilling Diameter, 0.94″ (24mm) Max. Through Hole Diameter, 180-7200 RPM Spindle Speeds, 5000 Max. Tool Spindle Speed, Pickoff Spindle, 3-Spindle Backworking, S/N X9010 VIEW LOT #11
• Citizen L16 CNC Swiss-Type Lathe, Cincom CNC Control, 0.63″ (16mm) Max. Machining Diameter, 7.87″ (200mm) Max. Machining Length, 0.31″ (8mm) Max. Drilling Diameter, 0.79″ (20mm) Max. Through Hole Diameter, 300-10,000 RPM Spindle Speeds, 5000 Max. Tool Spindle Speed, Pickoff Spindle, 3-Spindle Backworking, FMB Mini Turbo 4200 Bar Feeder VIEW LOT #10

INSERTION PRESSES:

• Haeger HP6-B 6-Ton Insertion Press, 18″ Throat, Elec. Foot Switch, 3/8″ – 8″ Ram Adjustment VIEW LOT #19
• (2) Haeger 824 8-Ton x 24” Throat Insertion Presses, 8 Ton, 24″ Throat, 480 v, 5.2 AMPS, 3 ph w/ Bowl Feeder VIEW LOT #17 / VIEW LOT #18

INSPECTION EQUIPMENT:

• Mitutoyo BRT710 Coordinate Measuring Machine, 40″ x 28″ x 24″ Travels, 38.5″ x 64″ Granite Table, Renishaw PH9 Probe, Renishaw PHC9 Probe Head Controller, S/N 91605 VIEW LOT #20
• MicroVu M14 Optical Comparator, S/n: 3258 VIEW LOT #21
• Deltronic DH14-MPC Optical Comparator, S/n: A4805273 VIEW LOT #22

HORIZONTAL BAND SAW:

• DoAll C-305NC Horizontal Band Saw, 12″ x 12″,Auto Index Bar Feed, 1.25″ Blade Width, Band Length: 144″, 230 v, 3 ph, 60 Hz, 22.5 AMPS VIEW VIDEO / VIEW LOT #14

FORKLIFTS:

• Yale 4,700 Lb. Forklift, Solid Tire, LP Gas VIEW LOT #15
• Yale 5,000 Lb. Forklift, Solid Tire, LP Gas, Side Shift VIEW LOT #16

ADDITIONAL MACHINERY & EQUIPMENT:

• Teledyne Spotwelder 30 KVA, 208 v, 60 Hz w/ Unitrol Simplicity Weld Controller, Miller m# COOLMATE 3 Coolant System 115 v S/N LC145360 VIEW LOT #1
• ACT (8) Filter Dust Collector VIEW LOT #6A
• Heat Curtain, 10’ Wide, (2) 200,000 BTU Heating Units VIEW LOT #9
• Metalsoft Fabrivision Digital Inspection System, Table Size: 4′ x 4′, 115 v, 60 Hz, 3 AMPS VIEW LOT #27
