POWER TRANSFORMER AND SWITCHGEAR EQUIPMENT

• ABB 30MVA Three Phase, 60 Hertz Power Transformer, S/N CS00141001, Mfg. 03/2015, Rated 30.0/40.0 MVA at 55 Degree C Rise, 33.6/44.8 MVA at 65 Degree C Rise, HV 115000 Volts 550 KV BIL, LV 13800Y/7970 Volts 150 KV BIL, Impedance 9.10% at 115000-13800Y Volts and 30 MVA, Cooling Class ONAN/ONAF/ONAF, Unit Weights: Core and Coils 5693 Lbs., Tank and Fittings 21,412 Lbs., Radiators 11,196 Lbs., Tank Oil 4,378 Gallons 32,833 Lbs., Radiator Oil 496 Gallons 3,712 Lbs., Total Weight 126,903 Lbs. [2015]

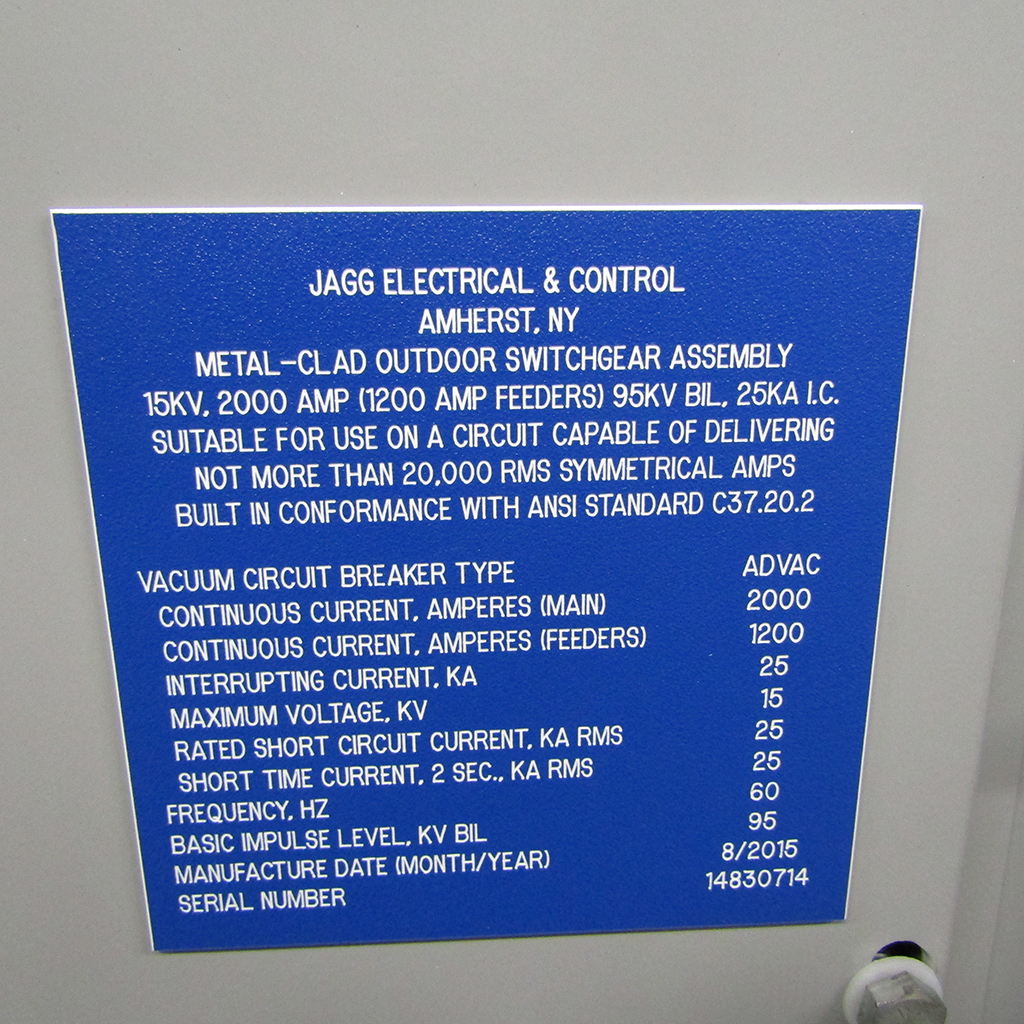

• ABB 15KV, 2000AMP Metal-Clad Enclosed Outdoor Walk-In Switchgear Assembly by JAGG, S/N 14830714, Mfg. 8/2015, 2000 AMP (1200 AMP Feeders, 95KV BIL, 25KA I.C., Suitable for use on a circuit capable of delivering not more than 20,000 RMS Symmetrical AMPS, Unit was built in conformance with ANSI Standard V37.20.2, Specs: Vacuum Circuit Breaker Type ADVAC, Continuous Current, Amperes (Main) 2000, Interrupting Current, Amperes (Feeders) 1200, Maximum Voltage 15KV, Rated Short Circuit Current 25KA RMS, Short Time Current, 1SEC., 25KA RMS, Frequency 60HZ, Basic Impulse Level 95KV BIL, Includes Sheltered Aisle Switchgear Enclosure: DIMS 177” Wide X 280”. Deep X 123” Tall, 11ga Metal, 2” Foam Insulated [2015]
