FEATURED ASSETS:

CNC LATHE

• Okuma LU45II 4-Axis CNC Lathe, new 2019, Okuma OSP-P300 CNC control, 25.59″ max. turning dia., 78.74″ max. turning length, A2-11 spdl. nose, 12–2,800 RPM in (4) ranges, 50/40 HP, large, hardened box ways, live quill tailstock, 18″ pwr. chuck, 12-pos. upper turret, 10-pos. lower turret, related accessories and tooling, S/N 220278 VIEW LOT #102


CNC EXTERNAL WHIRLING LATHE

• Leistritz LWN-300 CNC External Whirling Lathe, new 2013, Siemens Sinumerik CNC control, 1.57″–7.87″ workpiece dia., customizable workpiece length up to 314.96″, (7) CNC controlled hyd. steadyrests, cutting head recently refurbished w/new bearings, S/N 741337_0 VIEW LOT #107

CNC HERRINGBONE GEAR SHAPERS

• (7) Bourn & Koch HDS-1600-300 CNC Herringbone Gear Shapers, all new in 2012, Siemens Sinumerik 9-axis CNC control, 62.92″ max. gear dia., 11.81″ max. face dia., 44″ worktable dia., 9.975″ worktable bore, 1–25 RPM infinitely variable work spdl. spd., 40± deg max. helix angle, 13″ each Z-axis travels, 34″ X-axis travel, 200″/min. -X, 1,575″/min. -Z rapid traverse, S/N 64043; S/N 64044; S/N 64045; S/N 64046; S/N 64047; S/N 64048; S/N 64049. (Assorted steadyrests, tailstocks and related tooling available for each machine) Selection of B&K factory spares available VIEW LOT #110 / VIEW LOT #111 / VIEW LOT #112 / VIEW LOT #113 / VIEW LOT #114 / VIEW LOT #115 / VIEW LOT #116


HOLLOW SPINDLE LATHE

• Kingston 34 HP-2000 Hollow Spindle Lathe, Like New (Purchased 2014), 7-1/4″ spdl. bore, 34″ swing x 78″ btwn. centers, taper attachment, Atlas 21″ 4-jaw front chuck, Atlas 19-3/4″ 3-jaw rear chuck, 30 HP, spindle speeds 8–700 RPM in (2) ranges, Newall DP700 D.R.O., S/N 2M030417S (Note: Factory Cosmoline still on the machine) VIEW LOT #101

HORIZONTAL FORCING WHEEL PRESSES

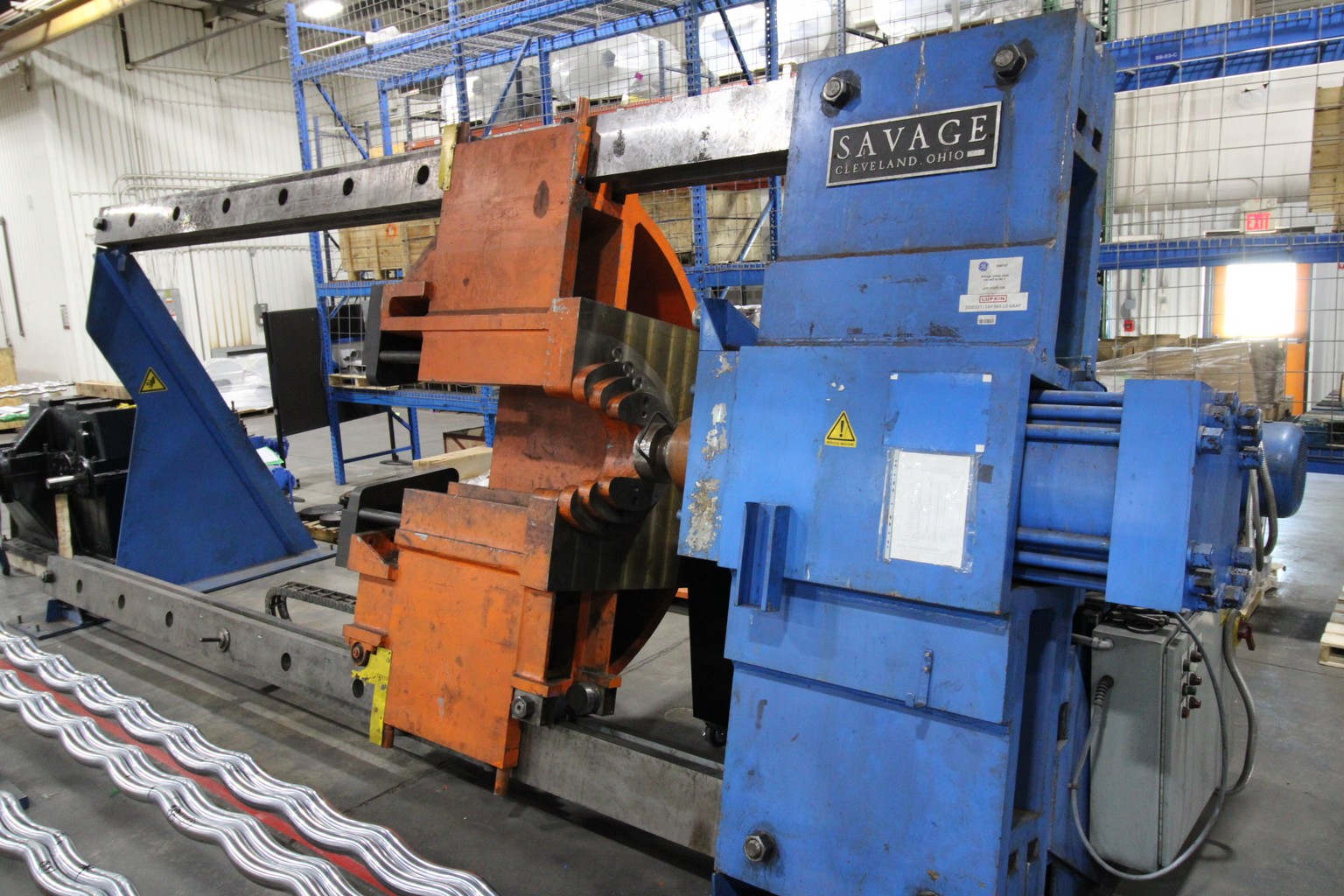

• Savage HF-400 Horizontal Forcing Wheel Press, new 2011, 400 T. pushing and 110 T. pulling cap., 72” wide between tension rails, 120” Daylight, 30 HP, 30″ cylinder stroke, 18″ cylinder bore dia., 10″ rod dia., 42,500-lb. machine weight, press adaptors and puller jaws for each machine, S/N 2665-A VIEW LOT #108
• Savage HF-400 Horizontal Forcing Wheel Press, new 2011, 400 T. pushing and 110 T. pulling cap., 72” wide between tension rails, 120” Daylight, 30 HP, 30″ cylinder stroke, 18″ cylinder bore dia., 10″ rod dia., 42,500-lb. machine weight, press adaptors and puller jaws for each machine, S/N 2665-B VIEW LOT #109
• (Note: custom material handling system also available for sale) VIEW LOT #109A

5-AXIS HOB SHARPENING TOOL GRINDER

• STAR PTG-1 5-Axis Hob Sharpening Tool Grinder, new 2012, PLC based, 7.87” max. work piece dia., 10” max. hob length, 10 HP, 10,000 RPM, high pressure coolant, Mist Buster filtration system, S/N2975 VIEW LOT #106


CNC VERTICAL MACHINING CENTER

• Dahlih MCV-1700 CNC Vertical Machining Center, new 2006, Fanuc 21i-MB CNC control, 40” x 75” tbl. size, 66.93”-X, 31.44”-Y, 29.53”-Z axis travel, Cat 50 taper, 20 HP, 6,000 max. RPM, box ways, 30 pos. ATC, S/N 3001090230 VIEW LOT #103

CNC KEYSEATERS

• (2) Leistritz Polymat 70/600 CNC Hydraulic Keyseater, new 2012, 32″ x 41″ tbl. size, 2.75″ max. key width, .0787″ min. key width., 27.56″ stroke, Siemens CNC control, hyd. pwr. unit, accessories included, (1) pit mounted and (1) in shipping crate, S/N 12.03.05; S/N 12.03.04 VIEW LOT #104 / VIEW LOT #105


VERTICAL MILLING MACHINE

• Bridgeport Series I Vertical Milling Machine, 9” x 48” tbl., 3-way pwr. feed, Acurite 2-axis D.R.O, 2-HP variable speed head, S/N HDNG5761M VIEW LOT #89

HERRINGBONE GEAR SHAPERS

• Farrel 5B Herringbone Gear Shaper, 66” max. blank dia., 18” max. face w/ herringbone, S/N 881B VIEW LOT #98

• Farrel 5 Herringbone Gear Shaper, 66” max. blank dia., 18” max. face w/ herringbone, S/N 847B VIEW LOT #99


GEAR HOBBER

• Barber Coleman 16-16 Gear Hobber, 16” max. work dia., 6 DP max. dia. In steel, 5” max. hob dia., 44” centers, 4.125” work spindle bore, S/N 1021812_1 VIEW LOT #97

ROLL MARKING MACHINE

• GEO T. SCHMIDT 175-10 MPC Roll Marking Machine, 7 tons max. ram pressure, ½” max. ram stroke, 7” max. cross slide stroke, 10” x 6” tbl. size, S/N 16994 VIEW LOT #96

ADDITIONAL EQUIPMENT

• TEMCO Rotary Parts Washer, 30” rotary tbl., wash cycle up to 60 mins. VIEW LOT #95

• Sunnen MBB-1660 Horizontal Hone, .06” to 6.5” dia. cap. x 1/8” to 16” long, S/N 4D1-96583 VIEW LOT #94

• Morrison K Keyseater, 1-1/4″ cap., 9″ max. length of cut, 15–40 strokes per min., 2 HP, w/related accessories, S/N K813881 VIEW LOT #93
• (2) KALAMAZOO S8D Industrial Sanders with Dust Collectors, 8″ x 60″, 7.5 HP, w/dust collection system, S/N 05220377; S/N 05220376 (New in crate) VIEW LOT #90 / VIEW LOT #91
• WIDE SELECTION OF LARGE CAPACITY MITUTOYO O.D. MICROMETERS AND COMPLETE SETS

• FOWLER TRIMOS HORIZON PREMIUM HPD-1500 Measurement and Setting Instrument , 59.05″ I.D. cap., S/N 1434 VIEW LOT #80A

• (3) MANARAS OPERA MDL. OGH 6432-0M00 OVERHEAD DOORS, mfg. 11/ 2021, new in box, 14’ long, ½ HP; (2) LNS MDL. SPRINT 552-565, bar feed systems S/N 240411-2010; S/N 240620-2013; STEELMAX PB-10 pipe beveling machine; (4) DEWALT MDL. DW758 DOUBLE END GRINDERS, TORQUE WRENCHES and more!
