** MACHINES ARE AVAILABLE IMMEDIATELY VIA PRIVATE NEGOTIATION**

** PRE-AUCTION OFFERS ARE INVITED **

FEATURED ASSETS:

CNC FLOOR TYPE HORIZONTAL BORING MILLS:

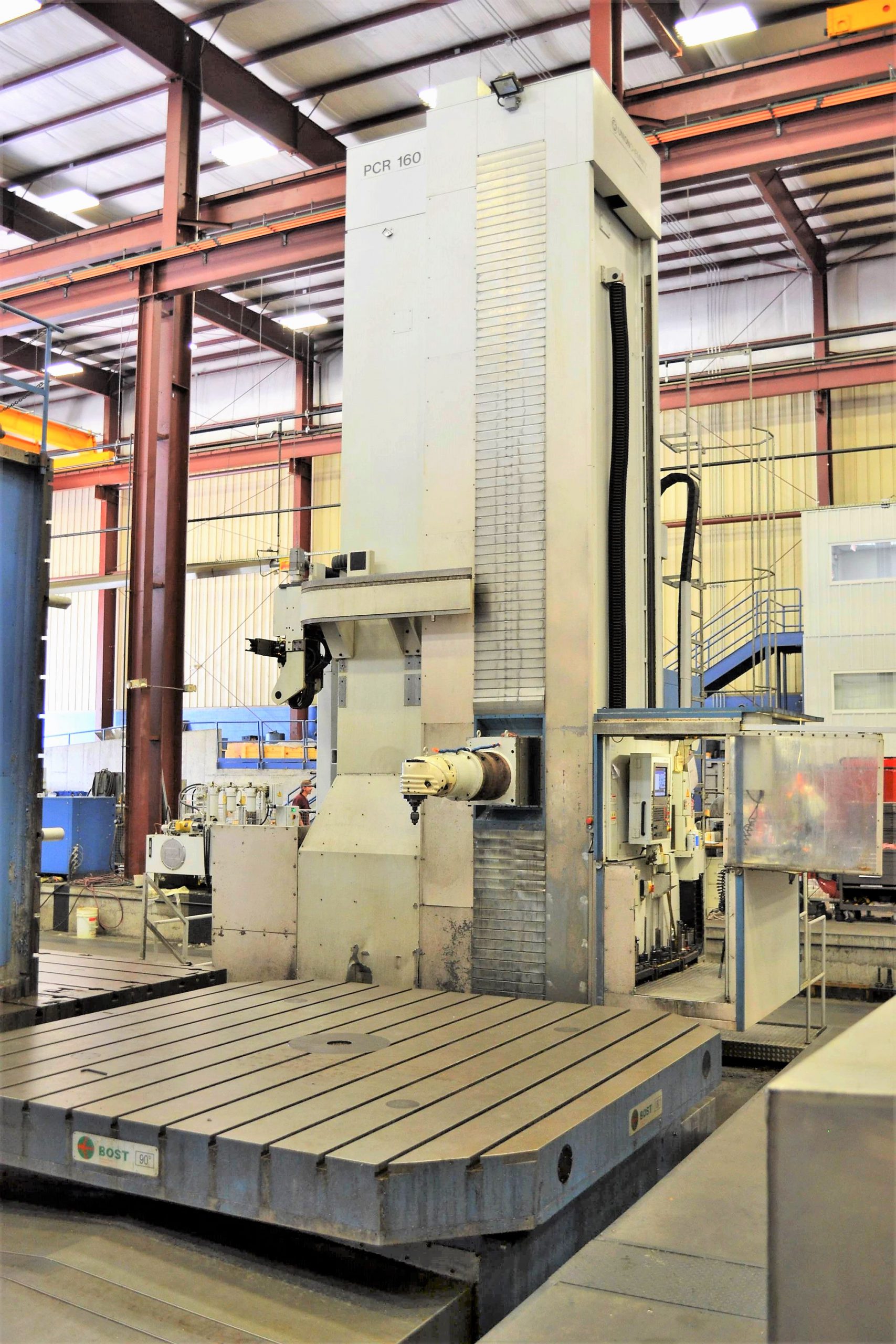

• 2012 Union PCR160 Plus CNC Floor Type Horizontal Boring Mill with Ram, X-590”, Y-236”, Z (Ram)-59”, W-27”, 157” x 157” Bost HT-120 MillTurn B-Axis Rotary Table, 118” V-Axis Table Infeeding, 250,000 Lbs. Table Capacity, Heidenhain iTNC 530 CNC Controls, 60 ATC (Horizontal/Vertical), Emena V4 Auto-Indexing Universal Head, Sempuco FK 5000/90X Right Angle Head, Pickup Station for Head Attachments, S/N 1400005  VIEW FULL DETAILS

CNC HORIZONTAL TURN/MILL LATHE:

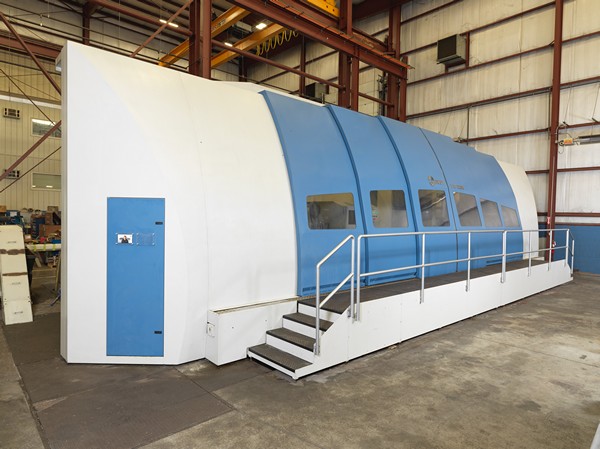

• 2012 Bost T4F 79” x 354” CNC Horizontal Turn/Mill Lathe with Y-Axis Milling Tower, 63” 4-Jaw Chuck, 78” Swing, 354” Between Centers, 36-300 RPM, 44,000 Lbs. Weight Capacity Between Centers (Unsupported), 95 HP Headstock Motor, C-Axis, B-Axis Head, +/- 90 Degrees Auto-Indexing, 8-3000 RPM Milling Spindle Speeds, 69 HP Milling Spindle Motor, HSK-125 Tooling, Sword Type Tool Holder, Boring Attachment, Siemens 840D CNC Control, 60 Position ATC, (1) 59” Large Steady Rest, (5) Roller Type Steady Rests, Renishaw RMP60 Probe, Heidenhain Linear Measurement System, 2012 VIEW VIDEO / VIEW FULL DETAILS

CNC VERTICAL TURNING CENTERS:

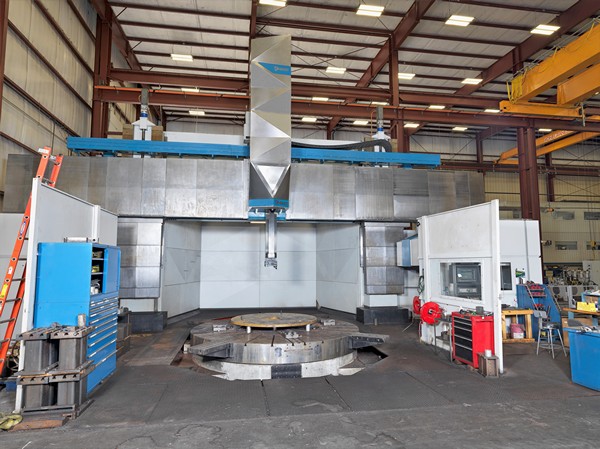

• 2012 Bost VTL 60 CY 157.48″/236.11″ CNC Vertical Turning Center with Live Milling, 157” Table Diameter, 236” Swing, 141” Turning Height, Y-Axis Milling, 8-118 RPM Table Speeds, 176,000 Lbs. Table Weight Capacity, 136 HP Table Motor, 78.74” Ram Stroke, Live Spindle Speeds to 3000 RPM, 49 HP Live Spindle Motor, Siemens 840D CNC Controls, Vertical & Horizontal Automatic Tool Changers, (20) ISO 50 Tools in Vertical ATC, (8) ISO 50 Tools in Horizontal ATC, (12) Positions for Turning/Boring, Table Extensions to 216” Diameter 8-Jaw, Adjustable Crossrail, Automatic Head Changing, Horizontal Right Angle Head, Renishaw Probe, 2012
• 2013 Ibarmia THC 22 Multiprocess 5-Axis CNC Vertical Turning & Milling Center, 62.99” Table, 98” Swing, Table Speeds to 300 RPM, 17,636 Lbs. Table Capacity, C-Axis .001 Degrees, X-Axis (Column) – 78”, Y-Axis (Head) – 59”, B-Axis Angle Head, B-Axis -15/+195 Degrees, 3000 RPM Live Spindle Speeds, HSK 100 Taper, 51 HP Live Spindle Motor, Siemens 840D CNC Control, 60 Position ATC, Renishaw RMP60 Probe, Paper Filtration System, High Pressure Coolant Thru Spindle, S/N 12768 VIEW FULL DETAILS

CNC HORIZONTAL BORING MILLS:

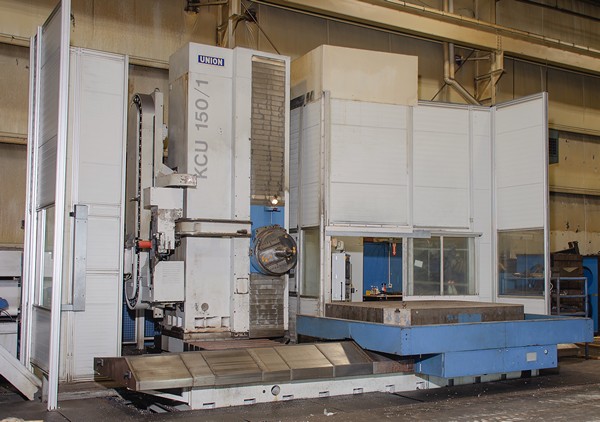

• 2008 Union KCU-150 HDT CNC Horizontal Boring Mill, 6” Spindle, 79” x 98” B-Axis Rotary Table, X-126”, Y-118”, Z-59”, W (Spindle) -30”, Spindle Speeds to 3000 RPM, 44,000 Lbs. Weight Capacity, Siemens 840D CNC Control, 60 Position ATC, CAT 50 Taper, Integrated CNC Facing Head with Pass Thru Spindle, Thru Spindle Coolant, Filtration System, 62 HP Spindle Motor, 2008 VIEW VIDEO / VIEW FULL DETAILS
• Union TC-130 CNC Horizontal Boring Mill, 5.1” Spindle, 63” x 79” B-Axis Rotary Table, X-98”, Y-98”, Z-30”, W-59”, Spindle Speeds to 3000 RPM, 22,000 Lbs. Weight Capacity, Heidenhain 426 CNC Control, 60 Position ATC, CAT 50 Taper, Thru Spindle Coolant, Filtration System, 67 HP Spindle Motor, 2001 VIEW VIDEO / VIEW FULL DETAILS

CNC UNIVERSAL MACHINING CENTER:

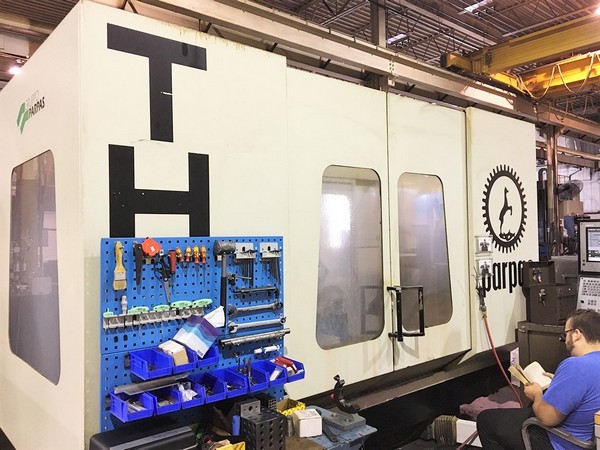

• 2009 Parpas THS 100 5-Axis CNC Universal Machining Center, 39” x 39” B-Axis Table, A/C Axis Universal Milling Head, X-59”, Y-39”, Z-47”, Spindle Speeds to 5000 RPM, 11,000 Lbs. Weight Capacity, Heidenhain iTNC 530 CNC Control, 24 Position ATC, CAT 50 Taper, Thru Spindle Coolant, Flood Coolant, Full Enclosure, 2008, S/N SETHS-0056 VIEW FULL DETAILS

ADDITIONAL EQUIPMENT:

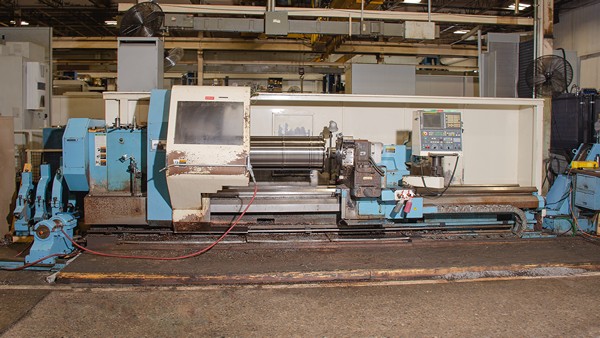

• Hankook Protec 9NC 37” x 157” CNC Lathe, Fanuc 21i-T CNC Control, 32” 4-Jaw Front & Rear Chucks, 9.8” Bore, Spindle Speeds 2-630 RPM, (3) Steady Rests, Boring Bar Attachment, Tailstock, Chip Conveyor, 35 HP Spindle Motor, 2002
• Kingston HR3000 30” x 120” Lathe, 24” 4-Jaw Chuck, 8-800 RPM Spindle Speeds, Trak 2-Axis Digital Readouts, (2) Steady Rests, Follow Rest, Taper Attachment, Inch & Metric Threading, Tool Post, Tailstock, 20 HP Spindle Motor VIEW FULL DETAILS
