FEATURED ASSETS:

CNC PRESS BRAKE

• Bystronic PR320 x 4100 Hydraulic Press Brake, Cybelec ModEva 12S 8-Axis CNC Control, 357 Ton, 161” OA, 147” BH, 22.24” Extended Stroke, 6-Axis CNC Back Gaug, Hydraulic Dynamic Crowning, Willa Upper Hydraulic Clamping, Lower Hydraulic Clamping, Light Safety System, Flush Floor Design, S/N: 7460005 [2007] NOTE: Machine is not under power.  According to the technician, a proportional valve will need to be replaced. Location: North Carolina VIEW VIDEO / VIEW LOT #14

SWISS TYPE SCREW MACHINE

• 2018 Swistek GT328DDY Swiss Type Automatic CNC Screw Machine, Fanuc OiTF CNC Control, 19.68” Swing over Bed, 8 Position Turret, Chip Conveyor, (4) Position Side Tools, (3) Position Face Tools, Low Hours [2018] Location: Pennsylvania VIEW VIDEO / VIEW LOT #4

CNC MACHINING CENTERS

• Haas VF6 CNC Vertical Machining Center, Haas CNC Control, X-64”, Y-32”, Z-30”, 10,000 RPM, #50 Taper, 30 Station Side Mounted Automatic Tool Changer, 30 HP, Chip Auger [2005] Location: Toronto, Canada VIEW LOT #24

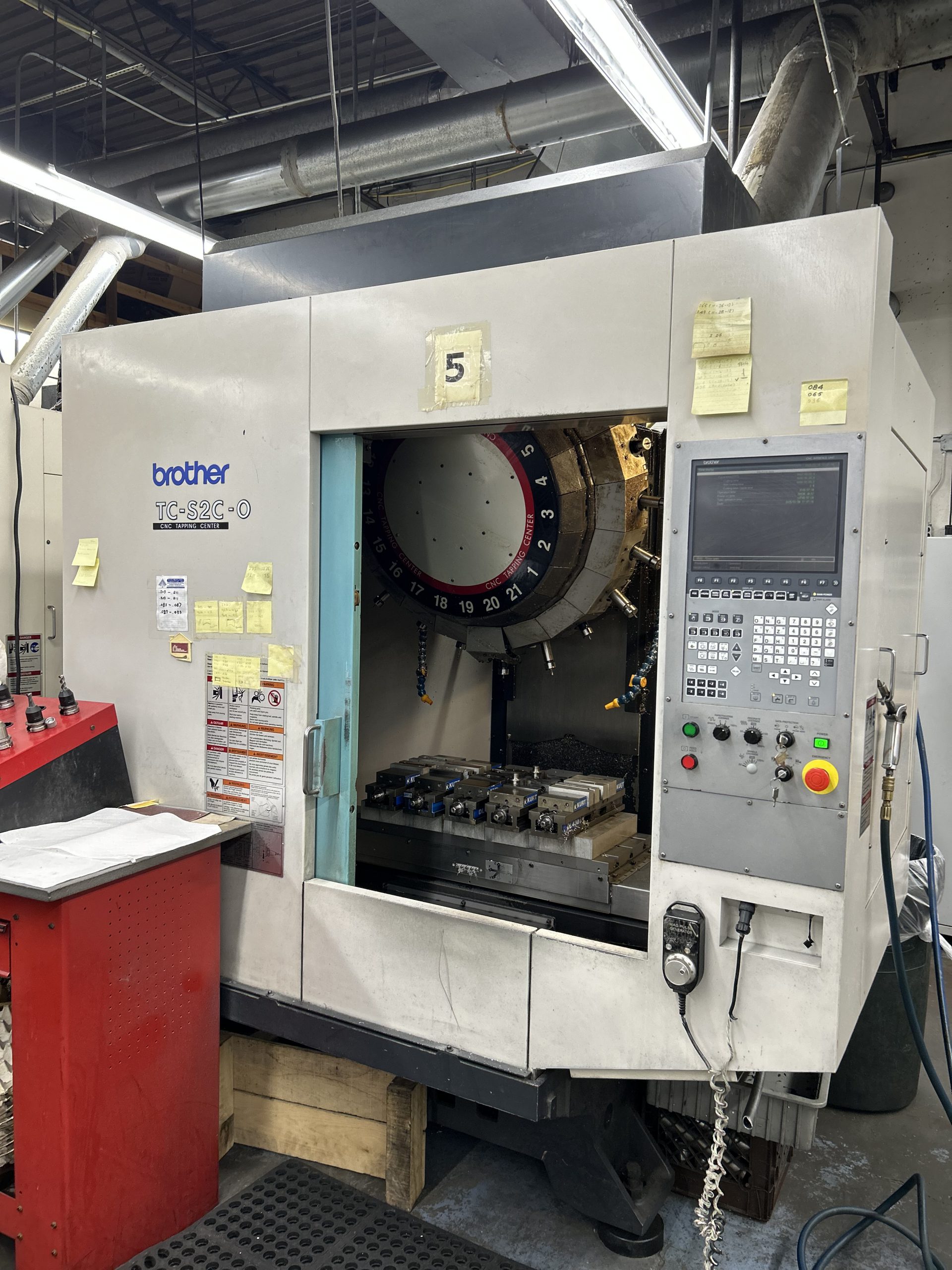

• (3) Brother TC-S2C-0 CNC Vertical Drill & Tapping Centers, Brother CNC-B00, X-27.6”, Y-15.7”, Z-11.8”, Table Size 31.5” x 12.6”, 21 Station Automatic Tool Changer [3 Available] Location: New York VIEW LOT #5 / VIEW LOT #6 / VIEW LOT #7

• Mazak Nexus 5000II CNC Horizontal Machining Center, Mazatrol Matrix CNC, X-28.7”, Y-28.7”, Z-29”, 19.68” x 19.68” Pallets, 0.001 Deg. Indexing, 18,000 RPM, 120 Station Automatic Tool Changer, Coolant Thru Spindle, Renishaw Part & Tool Probes, Chip Conveyor, Mist Collector, Extra Pallets and Tombstones [2007] Location: New York VIEW LOT #23

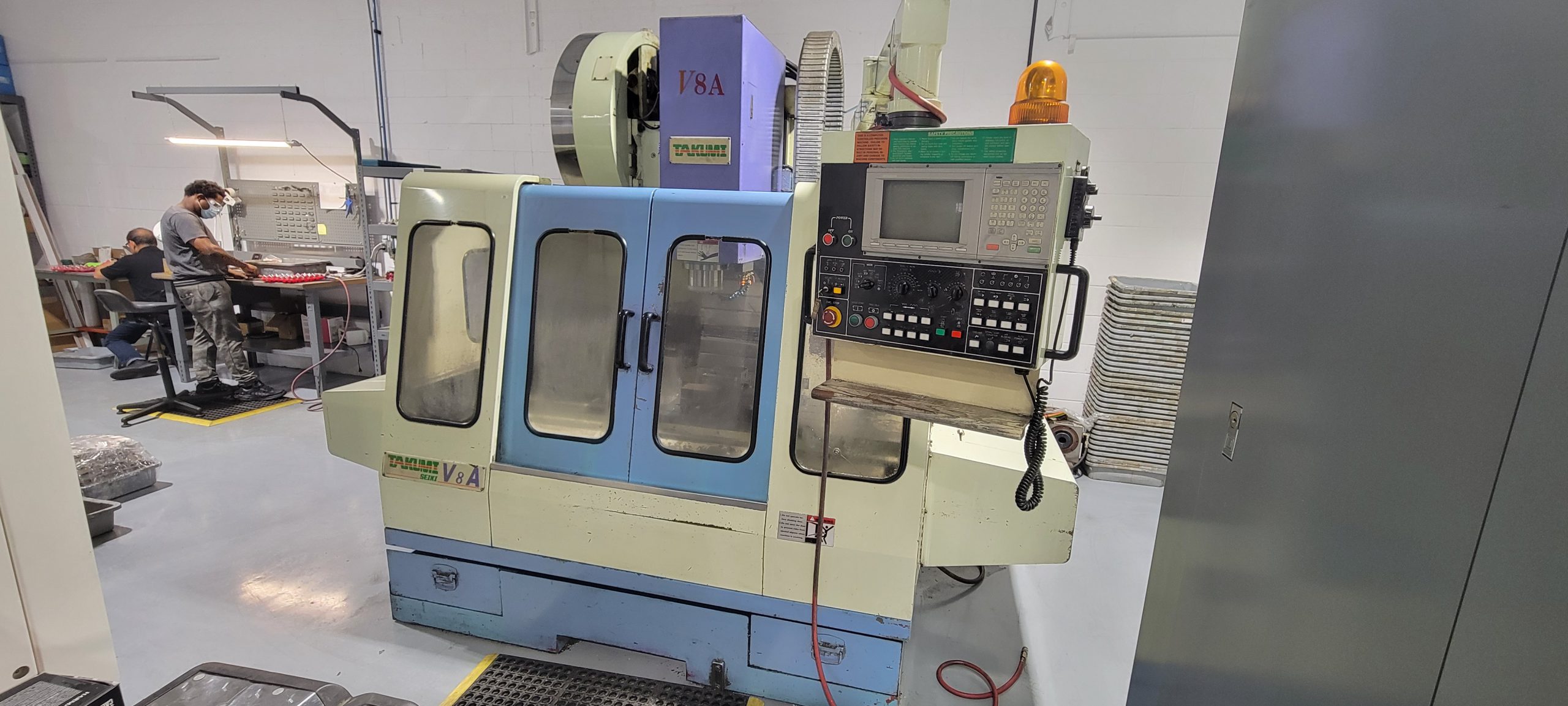

• Takumi V8A Vertical Machining Center, Mitsubishi Meldas 500 CNC Control, X-31.88”, Y-20.07”, Z-22.04”, 39.4” x 20.07” Table, 8,000 RPM, 24 Station Automatic Tool Changer, Location: Ottawa, Canada VIEW VIDEO / VIEW LOT #3

CNC LATHES

• Mazak SQT-200 MSY CNC Turning & Milling Center, Mazatrol PC-Fusion CNC, 20” Swing, Live Milling, Sub-Spindle, C-Axis, 5,000 RPM, 8” Chuck, Tool Pre-Setter, 12 Position Turret, Chip Conveyor, Location: New York VIEW LOT #21
• Mazak Super Quick Turn 15MS-Y Mark II CNC Turning & Milling Center, Mazatrol T Plus CNC Control, 20.78” Swing, Live Milling, Sub-Spindle, C-Axis, Y-Axis, 5,000 RPM, 8” Chuck on Main Spindle, 6” Chuck on Sub-Spindle, Automatic Tool Pre-Setter, 12 Position Turret, Chip Conveyor, Location: New York VIEW LOT #20
• Mazak Quick Turn 20 CNC Turning & Milling Center, Mazatrol T Plus CNC Control, 17.32” Swing, 19.68” Machining Length, 5,000 RPM, 8” Chuck, 8 Position Turret, Tailstock, Location: New York VIEW LOT #22

WATER JETS

• 2022 Flow Mach 500 4020 XD 6’5″ x 13′ 5-Axis CNC Water Jet Cutting System, Flow CNC, 13’1” x 6’6” Work Envelope, 5-Axis Cutting Head, 94,000 PSI, Flow Hyperjet 50 HP Pump, Ebbco Closed Loop Chiller, Abrasive Transfer System (ATS) Extractor, 500 Lb. Abrasive Hopper, [2022] Location: Georgia VIEW VIDEO / VIEW LOT #25
• Flow WMC2 4020 6’6″ x 13’1 CNC Water Jet Cutting System, Flow CNC, 13’1” x 6’6” Work Envelope, Dual PASER 3 Abrasive Jet Cutting Heads, 20XWD-55, Dual Intensifier Pumps, 60,000 PSI, 100 HP, Abrasive Bulk Transfer System, High Pressure Whip Plumbing Package, WMC CleanCut Material Support System, [2006], Location: Pennsylvania VIEW VIDEO / VIEW LOT #26

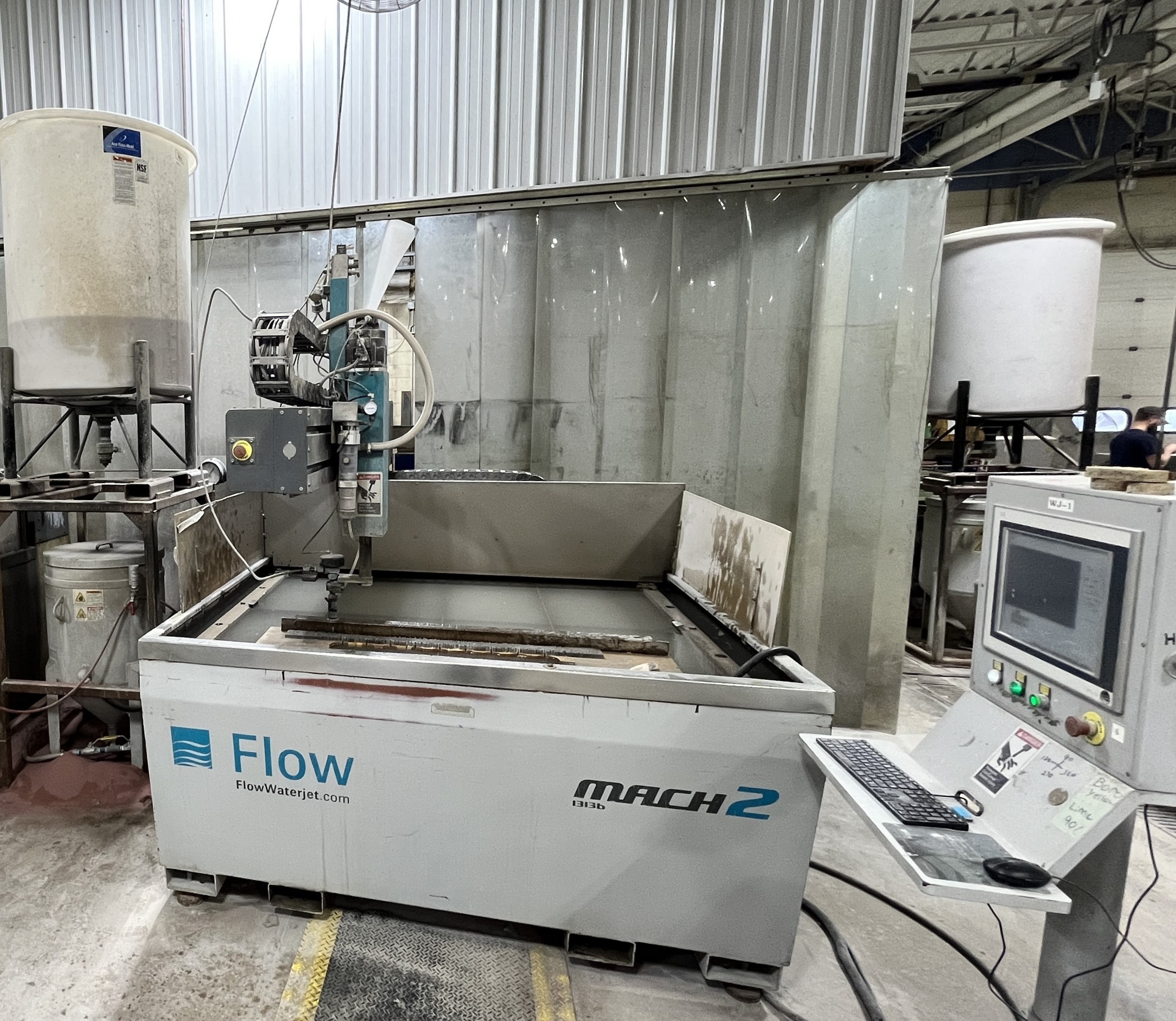

• Flow Mach 2 1313b CNC Water Jet Cutting System, Flowmaster PC Based CNC, 4’ x 4’ Work Envelope, Flow 30-SA Intensifier Pump, 60,000 PSI, 30 HP, 500 Lb. Abrasive Hopper 12.552 Hour, [2014], Location: Pennsylvania VIEW VIDEO / VIEW LOT #27
• Flow Mach 2 1313b CNC Water Jet Cutting System, Flowmaster PC Based CNC, 4’ x 4’ Work Envelope, Flow 30-SA Intensifier Pump, 60,000 PSI, 30 HP, 11,491 Hour, [2014], Location: Pennsylvania VIEW VIDEO / VIEW LOT #28

PRESS

• 2017 AMS Double Action 150 Ton Molding Press, 2,800 PSI Max Structural System Pressure, 316,500 Lbs Ultimate Load, 5’10” Daylight Opening, 10’1” Frame Height, 3’ Side Clearance, (4) Cylinders, 5 HP [2017] Location: New York VIEW LOT #15


LASERS

• Mazak 4000 Watt 6-Axis 3D Fabri Gear 300 CNC Tube & Pipe Laser, Mazak/Fanuc L-64 5-Axis CNC, 4000 Watt, 10.51” Round Stock, 8” Square Stock, X Axis Travel, 294”, Y-Axis Travel 50”, Z-Axis Travel 14.5” Panasonic Resonator, Automatic Feeding, Automatic Unloading, 24’6” In Feed/Out Feed, Chiller, Dust Collector, [2006], Location: North Carolina VIEW LOT #29

• Mazak Optiplex 3015 CNC Fiber Laser,Mazatrol PREview2 CNC Control, 4000 Watt, 60” x 120” Sheet Size, X-Axis 122.05”, Y-Axis 62.80”, Z-Axis 4.33”, , Automatic Pallet Changer, IPG Photonics YLS 4000 Resonator, Chiller, Robovent Dust Collector, 35,000 Hours, [2013], Location: Kansas VIEW LOT #31
• Mazak 6-Axis Space Gear 510 CNC Laser, Mazak/Fanuc L64  CNC Control, 4000 Watt, 60” x 120” Sheet Size, X-Axis Programmable Stoke 131”, Y-Axis Programmable Stroke 60”, Z-Axis Programmable Stroke 16.5”, A-Axis Stroke +/-360 Deg., B-Axis Stroke +/1 135 Deg., 4000 Watt Panasonic Resonator, 6-Axis Non-Contact Cutting Head, Rotary Axis for Cutting Tube, Chiller, Dust Collector, [2013], Location: Kansas VIEW LOT #30

SHEAR

• Accurshear ½” x 10’ Hydraulic Squaring Shear, 36” Back Gauge, 120” Blade, 50 HP, 18 SPM, New Set of Blades and New Finger Guards Installed [1997], Location: North Carolina VIEW LOT #16


MANUAL LATHE

• Jet 1340 Manual Lathe, 13” Swing, 40” Between Centers, 901800 RPM, Alloris Tool Post, 4-Jaw Manual Chuck, (2) 3-Jaw Manual Chucks, Assorted Collets, Inch/Metric Threading, 12” Face Plate, (2) Roller Type Steady Rests, Follow Rest, Location: New York VIEW VIDEO / VIEW LOT #1

MILL

• Supermax YCM-1-1/2 Vertical Mill, 9” x 42” Table, 32” Longitudinal Travel, 13” Cross Travel, 5” Quill Travel, 60-4200 RPM, Acu-Rite Digital Readout, Power Feed, Assorted Tooling, Location: New York VIEW LOT #2

IRONWORKER

• Geka Hydracrop 110/SD Hydraulic Ironworker, SemiPaxy Control System, 120 Ton, 24” Throat, 6” x 6” x ½” Angle Shear, Tooling, Location: Wisconsin VIEW LOT #17

SAW

• Hem Cyclone M Horizontal Band Saw, 16” x 22” Capacity, 1.25” x 16’ Blade, 60 Deg. Mitre, Hydraulic Vice Clamping, Variable Blade Speed, Built-In Coolant System, Location: Wisconsin VIEW LOT #18

PLATE ROLL

• Americor 3RSP 80/5 Plate Roll, 16 Ga. x 5’. 3-Roll, 3.15” Roll Diameter, Hydraulically Powered Rear Bending Roll, Hydraulic Drop End, Cone Bending Attachment, Location: Wisconsin VIEW LOT #12
• Imcar 4RH 4-Roll Plate Roll, 5/16” x 8’, 4-Roll, 8.7” Top Roll Diameter, Siemens CNC 4-Axis CNC Control, Hydraulic Drop End, Hardened & Polished Rolls, Location: Illinois VIEW LOT #13

THREADING ROLLER

• Tesker 230 Thread Roller, 2-1/2” Diameter Capacity, 40,000 Lb. Maximum Rolling Pressure, 30 HP Main Motor, 7-5/8” Maximum Diameter Dies, 6” Maximum Die Face Width, 2-1/2” Spindle Diameter, Spindle Speeds (Variable) 60-210 RPM, Extended Load/Unload, Hydraulic Pump & Tank, Spare Spindles, [2013], Location: Ohio VIEW LOT #33

WELDING ROBOTS

• 2022 Cloos/Bystronic 6-Axis CNC Welding Robot Micro Cell, 2-Station Work Piece Positioner, Cell Dimensions: 79” W x 109” D x 80” H, 280 Lbs. per Station, Cloos QRC 290 6-Axis Robot, Cloos QC2 Controller Unit, Color Touch Screen Teach Pendant, Cloos Qintron 400 Amp Power Supply, Cloos Wire Feeder, Auto Torch Cleaning System, Air Cooled Torch, [2022], Location: Wisconsin VIEW LOT #8
• OTC FD-V80 6-Axis Robot, 98.42” Horizontal Reach, 170.74” Vertical Reach, 6-Axis, 176 Payload, OTC FD21 CNC Control, [2020], Location, Ohio VIEW LOT #10

• OTC FD-V80 6-Axis Robot, 98.42” Horizontal Reach, 170.74” Vertical Reach, 6-Axis, 176 Payload, OTC FD21 CNC Control, [2020], Location, Ohio VIEW LOT #11

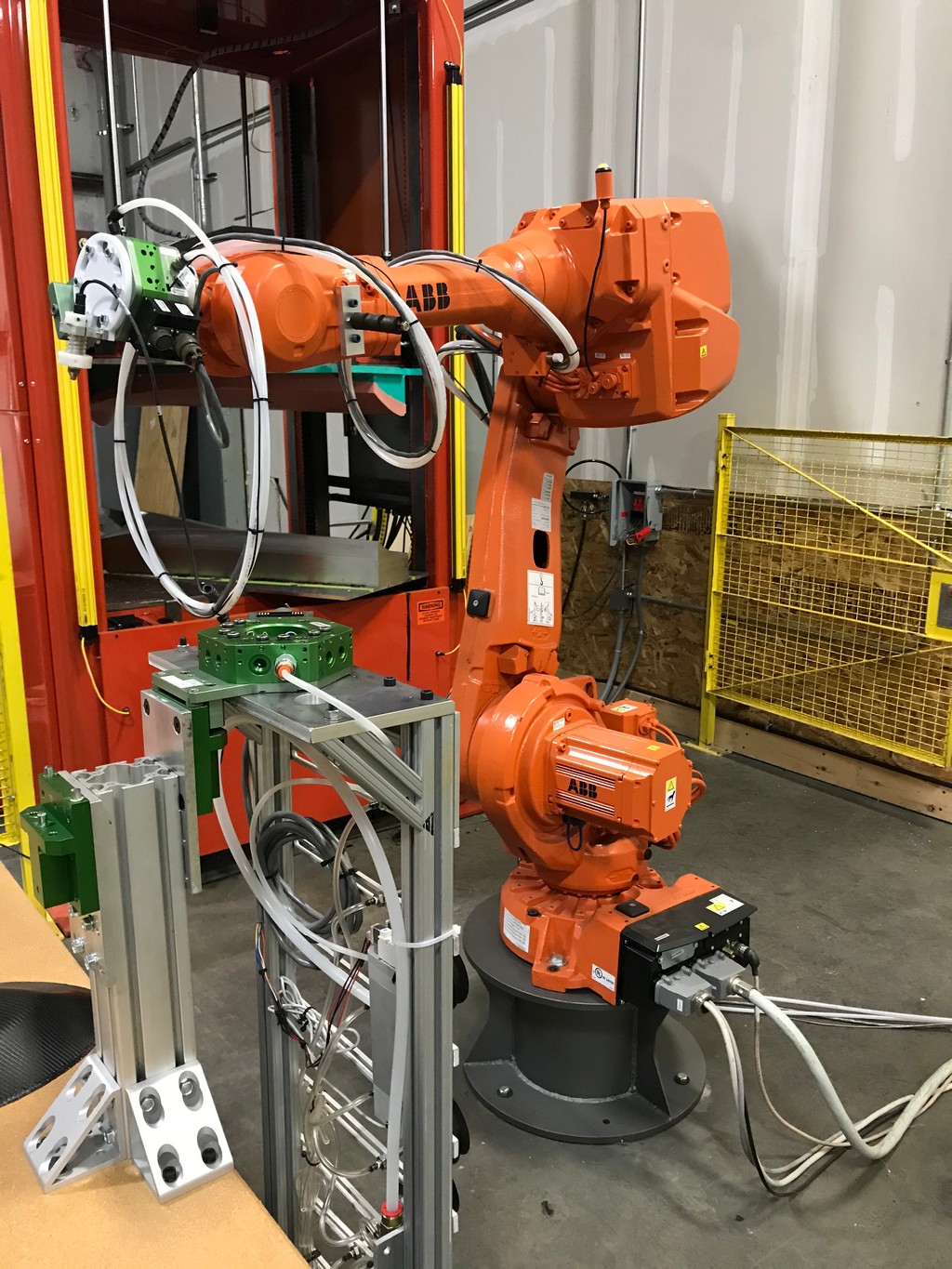

• ABB IRB 4600 6-Axis Welding Robot, 80.70” Horizontal Reach, 99 Lb. Payload, IRC5 Control, NEW Colombo Spindle, Location: New York VIEW LOT #9


CNC TURRET PUNCH PRESS

• Trumpf 25 Ton TC-500 CNC Punch And Contour Machine, 50” x 100” Travel, Bosch Trumagraph CNC Control, 18 Station Linear Tool Changer on X-Axis Rail, Programmable Tool Rotation, Location: Kansas VIEW LOT #19

PAINT BOOTH

• Parker Ionics Batch System Paint Booth, (3) Rapid Engineering Batch ovens Model # 121035, 12′ Wide Clear Width x 35′ Deep, (1) Parker Ionics – Q-flo 7200 powder booth, 12′ Wide Door, 16″ Wide Inside Dimension x 10′ Height, 20′ Inside Dimension deep, (2) Parker Ionics – GX8500A-L Spray unit, (2) Parker Ionics – GX132 Manual spray guns, (1) Parker Ionics – 385A control drawer with built in gun and hose purge, Two Karcher Industrial Heated Pressure Washer Units, Pressure 3000 PSI, 59Amps, Max Temperature 240F, NOTE: This paint system has never been installed and used, it is brand new VIEW LOT #32

CNC BORING MILLS & ROTARY TABLE

• Giddings & Lewis MC 70 7″ CNC Table Type Horizontal Boring Mill w/2-Pallet Shuttle, 7″ Spindle, #50 Taper, X118″, Y-115″, 60″ Spindle Travle, 84″ Saddle Travel, Pallet Sizes, 60″ x 84″ & 60″ x 96″, 50,000 Lb Table Load Capacity, 360,000 DEg. B-Axis Rotation, G&L 8000B CNC Control, 120 ATC, Ball Screws and Independent Servo Motors, Thru Spindle Coolant, Flood Coolant, Numeriprobe Part Probe System, 12-2200 RPM, 75 HP, Location: Ohio VIEW VIDEO / VIEW LOT #34

• Giddings & Lewis PC50 5″ CNC Table Type Boring Mill, 5″ Spindle, #50 Taper, X-120″, Y-84″, 62″ Saddle Travel, 36″ Spindle Travel, 120″ x 60″ Table, Fanuc 18i-M CNC (Retrofitted in 2009), 40 Station ATC, Heidenhain Scales, Through Spindle Coolant, Flood Coolant, 25-1120 RPM, 30 HP, Double Saddle Supports, Location: Ohio VIEW VIDEO / VIEW LOT #35

• Giddings & Lewis 60″ x 60″ Air Lift Rotary Index Table, 60″ x 60″ Table Size, 30,000 Lb Weight Capacity, Built in Scale with 1/2 Deg. Increments, Shot Pin Locking 4 x 90 Degrees VIEW LOT #36
