*** SALE IS SUBJECT TO FINAL BANKRUPTCY COURT APPROVAL ***

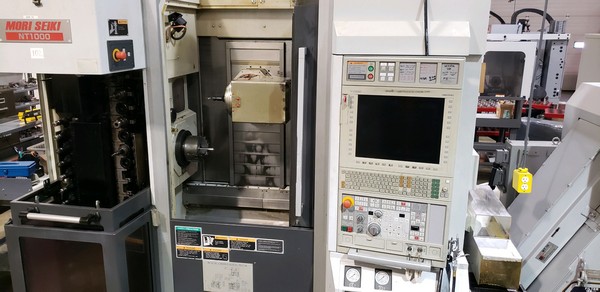

2010 Mori Seiki NT-1000S 7-Axis CNC Integrated Milling & Turning Center, S/N NT100JE0077

MSX-711 IV CNC Control
40-Position Tool Changer
Renishaw Probe

CAPACITY:

• Swing Over Bed ………………………………………….. 14.6″
• Swing Over Cross Slide …………………………….. 14.6″
• Turret 2 ……………………………………………………… 11.8″
• Distance Between Centers ……………………….. 35″
• Maximum Turning Diameter (Spindle 1) …. 14.6″
• Turret 2 ……………………………………………………… 8.3″
• Maximum Turning Length ………………………… 16.7″
• Bar Work Capacity ……………………………………. 2″
• X1-Axis Travel …………………………………………… 15″
• X2-Axis Travel ………………………………………….. 18.1″
• Y-Axis Travel …………………………………………….. /-4.1″
• Z-Axis Travel …………………………………………….. 18.1″
• Z2-Axis Travel …………………………………………… 24″

SPINDLE 1, MAIN SPINDLE:

• Max. Spindle Speed …………………………………… 6000 RPM
• Spindle Nose …………………………………………….. JIS A2-5
• Spindle Hole Diameter …………………………….. 2.4″
• Bar Capacity …………………………………………….. 2″
• Min. Spindle Indexing Increment ……………. 0.0001 Degree
• Spindle Motor …………………………………………… 15 HP

SPINDLE 2, SUB-SPINDLE:

• Spindle Speed ………………………………………….. 6000 RPM
• Bar Capacity ……………………………………………. 1.5″
• Spindle Motor ………………………………………….. 10 HP

TOOL SPINDLE, UPPER TURRET:

• Spindle Speed …………………………………………. 12,000 RPM
• Spindle Taper ………………………………………….. CAPTO C5
• Tool Capacity (ATC) ……………………………….. 36 ATC
• Tool Change Time ………………………………….. 1.2 Seconds
• B-Axis Indexing Increment ……………………. 0.0001 Degrees
• DIMENSIONS & WEIGHTS:

• Floor Space ………………………………………….. 95.5″ x 106.5″
• Machine Height …………………………………… 94.5″
• Machine Weight …………………………………… 19,360 Lbs.

EQUIPPED WITH:

• MORI SEIKI MSX 711 IV CNC Control
• 40-Position Automatic Tool Changer
• (2) 6,000 RPM Left & Right Chucks
• Renishaw Probe
• Parts Catcher
• Coolant System
• Chip Conveyor

32 SECO EDP 3GX Toolholders
