DAY 2: MACHINE TOOLS & MORE

CNC 5-FACE DOUBLE COLUMN VERTICAL MACHINING CENTER:

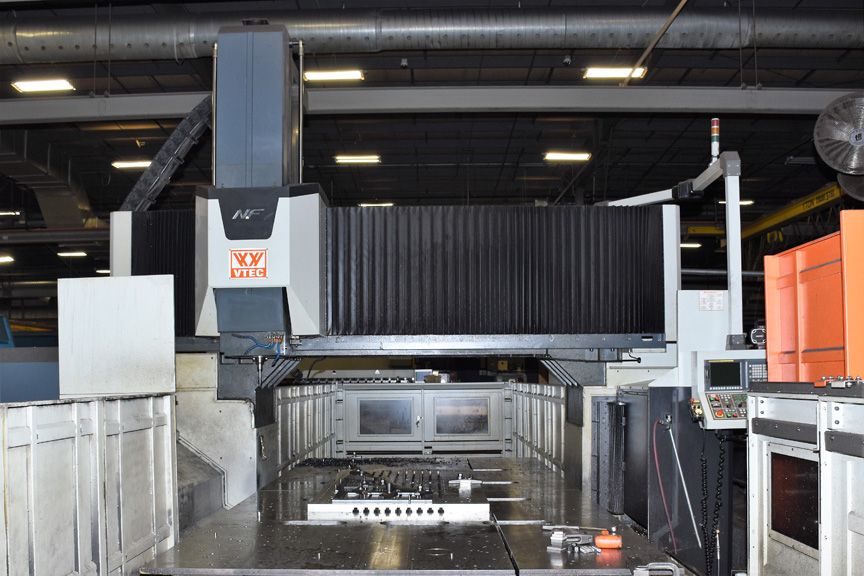

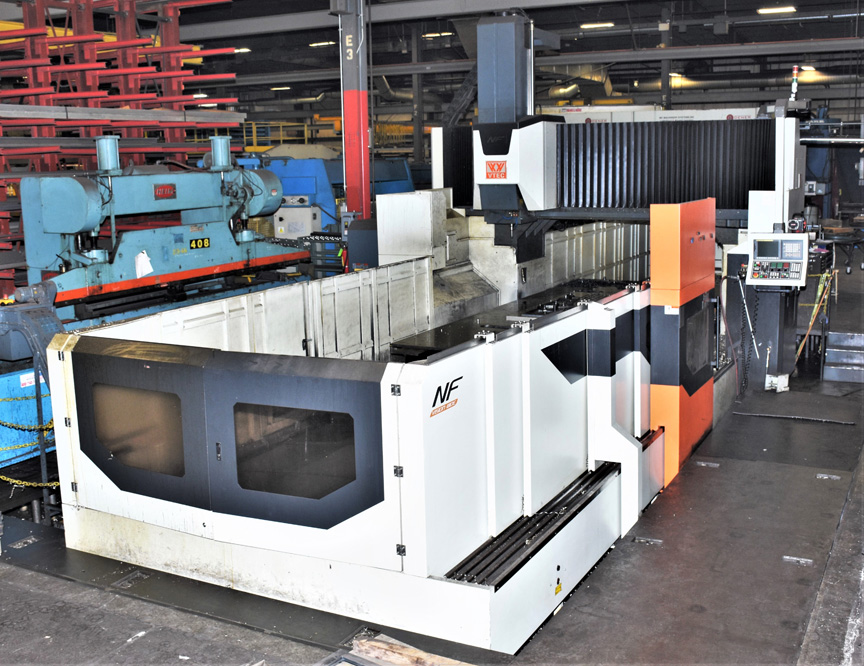

• 2015 VISION-WIDE V-TEC NF-6226 CNC 5-Face Double Column Vertical Machining Center, Fanuc 0iMD CNC Control, X-244.09”, Y-102.36”, Z-40.15″, 106.3″ Between Columns, 46” Max. Spindle Nose to Table, 236.22” x 96.45” Table, 39,600 Lb. Work Weight, Automatic Head Changer, 40 ATC, Spindle Speeds: 2-Steps to 4,000 RPM, Thru-Spindle Coolant, Hardened & Ground Box Ways, Chip Conveyor, S/N NF-0270, EQUIPPED WITH 34 HP / 3000 RPM Programmable 1-Degree Indexing Right-Angle Head

CNC HORIZONTAL BORING MILLS:

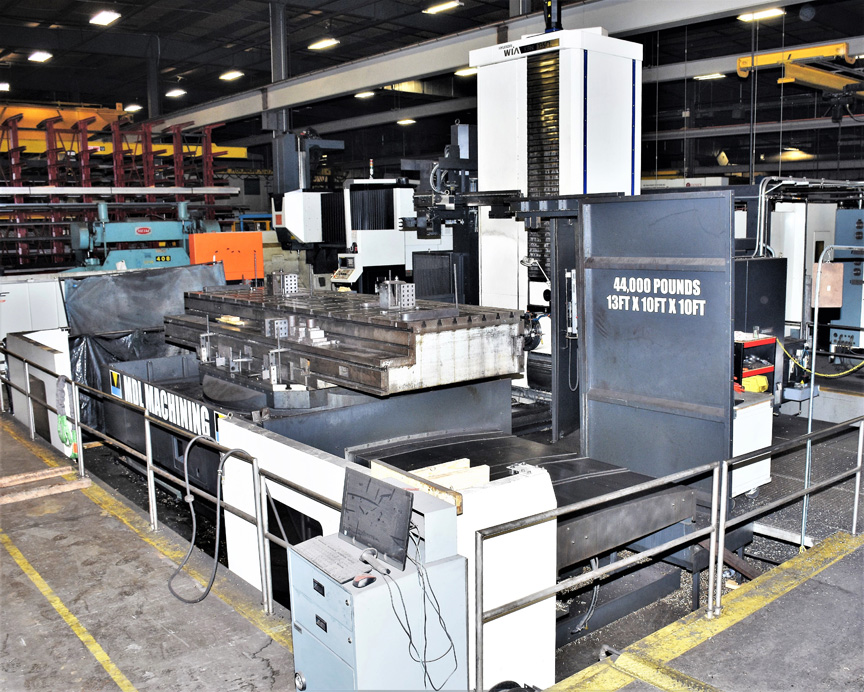

• 2011 5.31” HYUNDAI WIA KBN-135CL CNC Table Type Horizontal Boring Mill, Fanuc 31i-A CNC Control, 5.31” Spindle, X-157.48”, Y-98.42”, Z-27.56”, W-78.74”, 78.74″ x 70.86” 360,000 Position B-Axis Rotary Table, 44,000 Lb. Work Weight, 3-2500 RPM, 60 ATC, Thru-Spindle Coolant, CAT 50 Taper, Rigid Tapping, Chip Conveyor, 35 HP, S/N G3215-0045

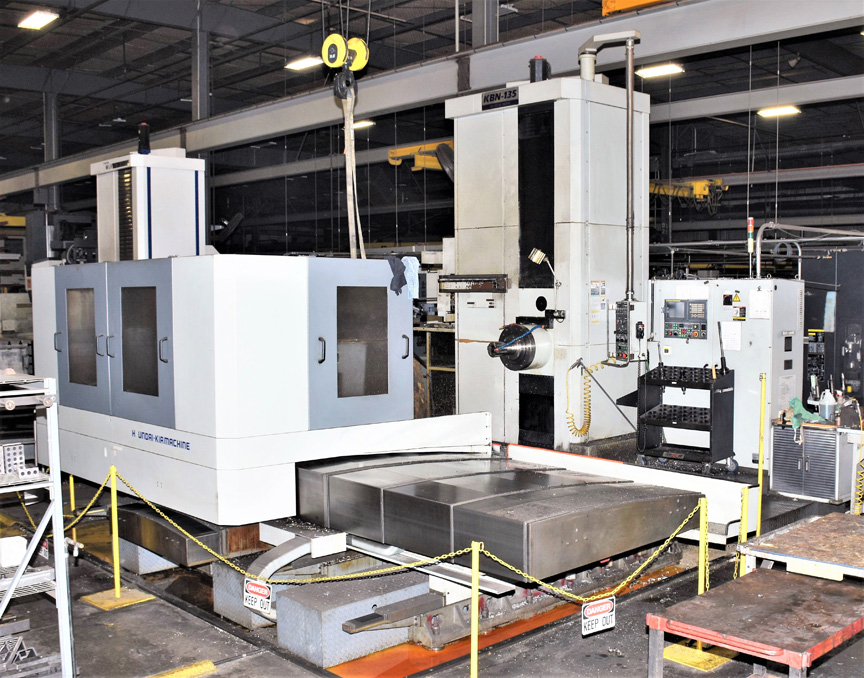

• 2006 5.31” HYUNDIA KIA KBN-135 CNC Table Type Horizontal Boring Mill, Fanuc 16i-MB CNC Control, 5.31” Spindle, X-118.11”, Y-78.74”, Z-27.56”, W-62.99”, 78.7″ x 70.86” 360,000 Position B-Axis Rotary Table, 22,000 Lb. Work Weight, 5-2000 RPM, 60 ATC, Thru-Spindle Coolant, CAT 50 Taper, Chip Conveyor, 30 HP, S/N 0096

ANGLE PLATES, ROTARY TABLE, T-SLOTTED TABLES:

• DEVLIEG Angle Plates, 24” Wide x 54” High x 30” Deep Base, S/N’s A91720 & B91720
• 60” PRATT & WHITNEY Vertical Rotary Table, S/N 29730
• 80”x72” High Angle Plate
• 90” Wide x 84” High x 42” Deep Base Angle Plate
• 170” x 40” T-Slotted Table
• 118” x 36” x 24” Sub Table
• 80”x72” High Angle Plate
• (2) 118” x 36” x 24” High Sided T-Slotted Tables

CNC HORIZONTAL MACHINING CENTERS:

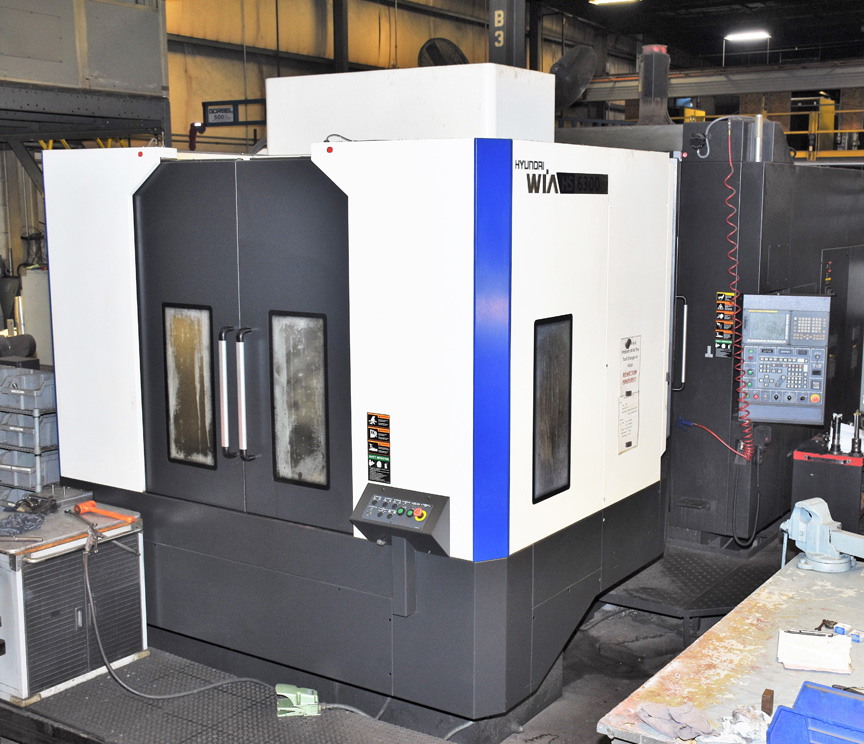

• 2012 HYUNDAI WIA HS6300 CNC Horizontal Machining Center, Fanuc 31iA CNC Control, Travels: X-41.3”, Y-34.4”, Z-34.4”, 2APC, 24.8” x 24.8” Pallets, 90 ATC, CAT 50 Taper, 8000 RPM, 30 HP Motor, Thru-Spindle Coolant, Chip Conveyor, S/N G3646-0277

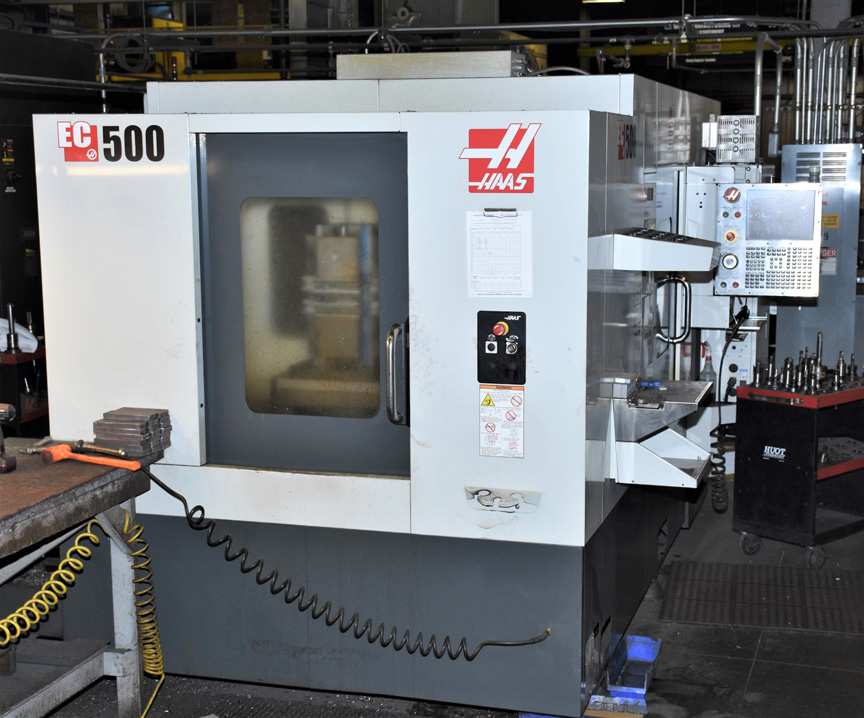

• 2012 HAAS EC500 4-Axis CNC Horizontal Machining Center, X-32″, Y-20”, Z-28”, 2APC, 19.7” x 19.7” Pallets, 0.001 Degree Pallet Rotation, 40 ATC, 12,000 RPM, 30 HP Motor, Probe, Chip Auger, S/N 2053758
• KITAMURA MyCenter HX400i 4-Axis CNC Horizontal Machining Center, Fanuc 16iM CNC Control, X-26”, Y-24”, Z-22”, 2APC, 15.7” x 15.7” Pallets, 0.001 Degree Pallet Rotation, 50 ATC, 14,000 RPM, Chip Conveyor, S/N 42546 [2002]

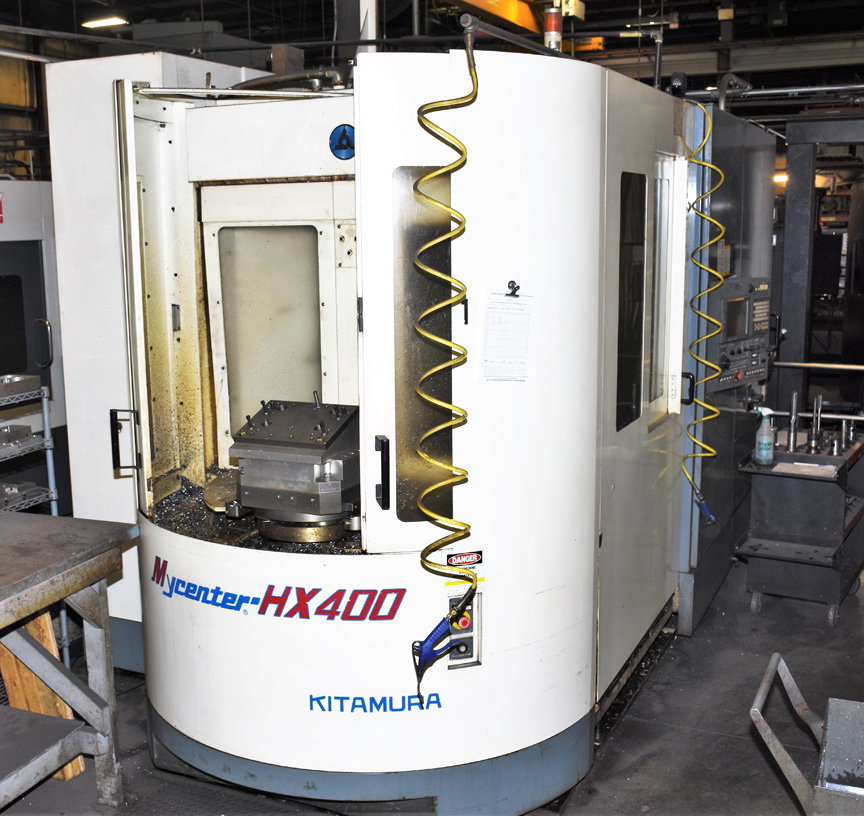

• KITAMURA MyCenter HX400 4-Axis CNC Horizontal Machining Center, Fanuc 16iM, Fanuc 16iM CNC Control, X-26”, Y-24”, Z-22”, 2APC, 15.7” x 15.7” Pallets, 0.001 Degree Pallet Rotation, 50 ATC, 13,000 RPM, Chip Conveyor, S/N 42469

CNC VERTICAL MACHINING CENTERS:

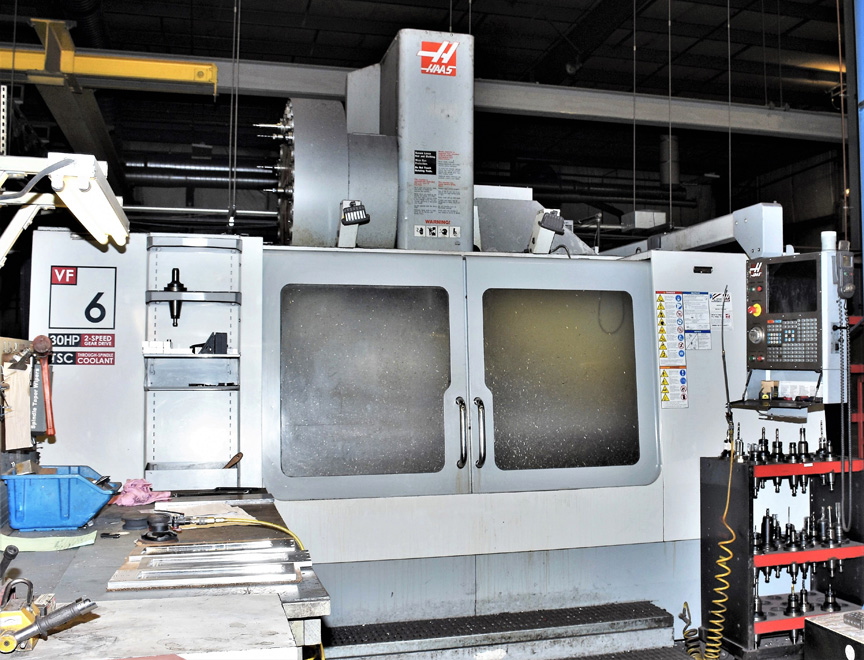

• 2009 HAAS VF-6/50 CNC Vertical Machining Center, X-64”, Y-32”, Z-30”, With 64” x 28” Table, 30 ATC, 7500 RPM, 30 HP Motor, CAT 50 Taper, Thru-Spindle Coolant, Chip Conveyor, S/N 1074137
• 2006 HYUNDAI KIA VX750M CNC Vertical Machining Center, Fanuc 18iMB CNC Control, X-61”, Y-29.5”, Z-28.3”, With 70.9” x 27.6” Table, 30 ATC, CAT 50 Taper, 8000 RPM, 4,409 Lb. Max. Work Weight, 30 HP Motor, Thru-Spindle Coolant, S/N VX750M0146

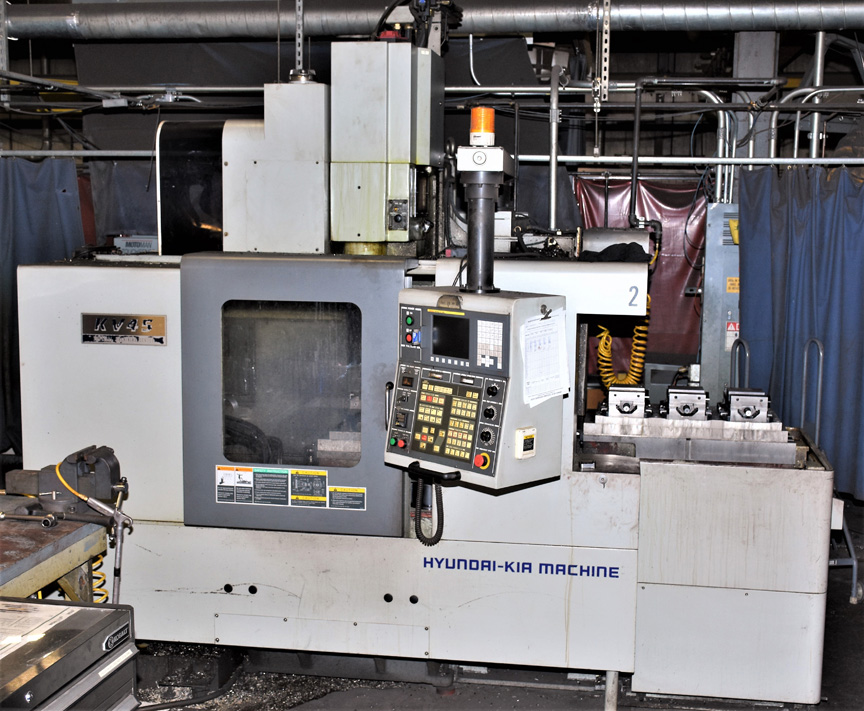

• (2) 2007 HYUNDAI KIA KV45 CNC Horizontal Machining Centers, Fanuc 0iMC CNC Control, X-31.5”, Y-19.7”, Z-19.7”, 2APC Shuttle, 45” x 18” Pallets, 30 ATC, 8000 RPM, 15 HP, Thru-Spindle Coolant, Chip Conveyor, S/N’s 0636, 0635

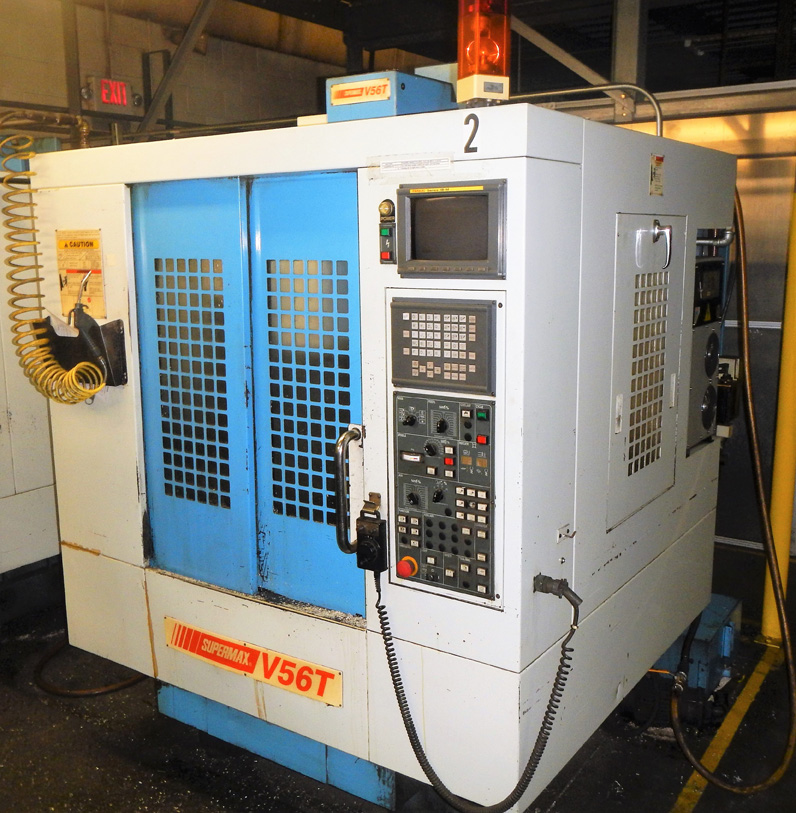

• (3) SUPERMAX YCM V56T CNC Vertical Machining Centers, X-22”, Y-16”, Z-20”, 16 ATC, 15,000 RPM, Fanuc 18M CNC Control, S/N’s: 904062, 903047, 903039
• KITAMURA MyCenter 3X CNC Vertical Machining Center, 10K RPM, 20 ATC, Yasnac CNC Control, S/N 11947

CNC DRILLING & TAPPING CENTER:

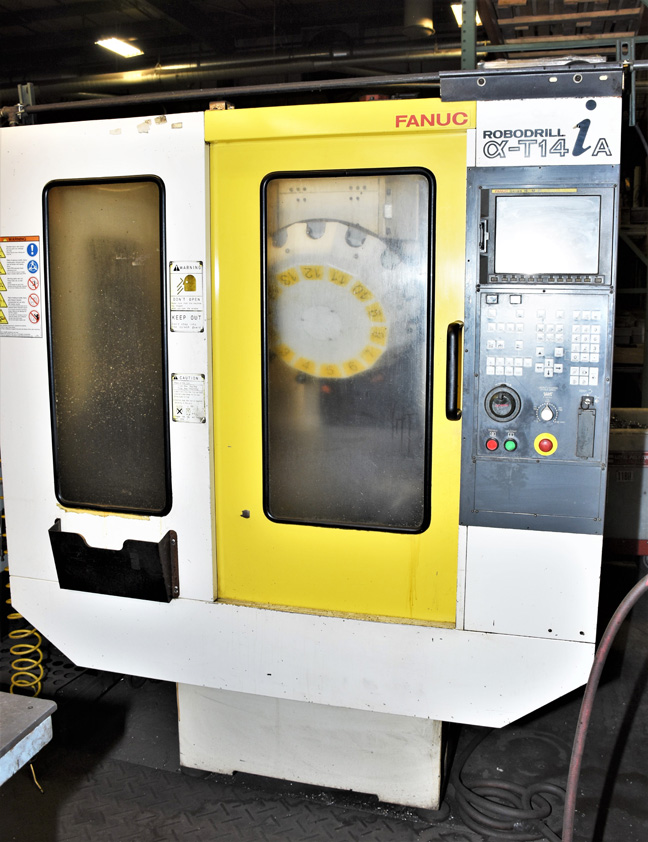

• FANUC Robodrill AT14iA CNC Drilling & Tapping Center, Fanuc 16iM CNC Control, 14-Position Turret, 15,000 RPM, S/N 99XTH618

CNC VERTICAL TURNING CENTERS:

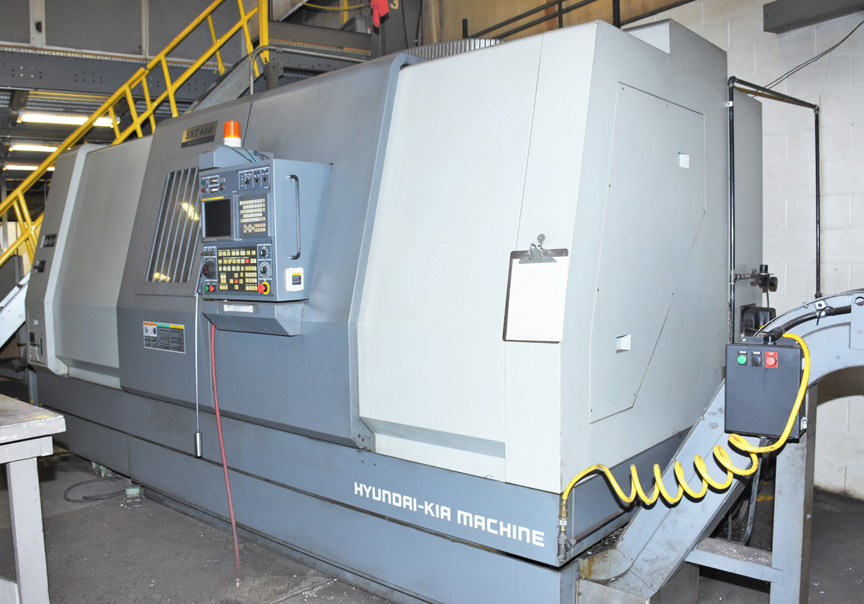

• 2006 HYUNDAI KIA SKT-460 CNC Turning Center, Fanuc 21iTB CNC Control, 34.5” Swing, 62” Max. Turning Length, 18” Chuck, 12-Station Turret, Tailstock, 50 HP, Steady Rest, Chip Conveyor, S/N 0213

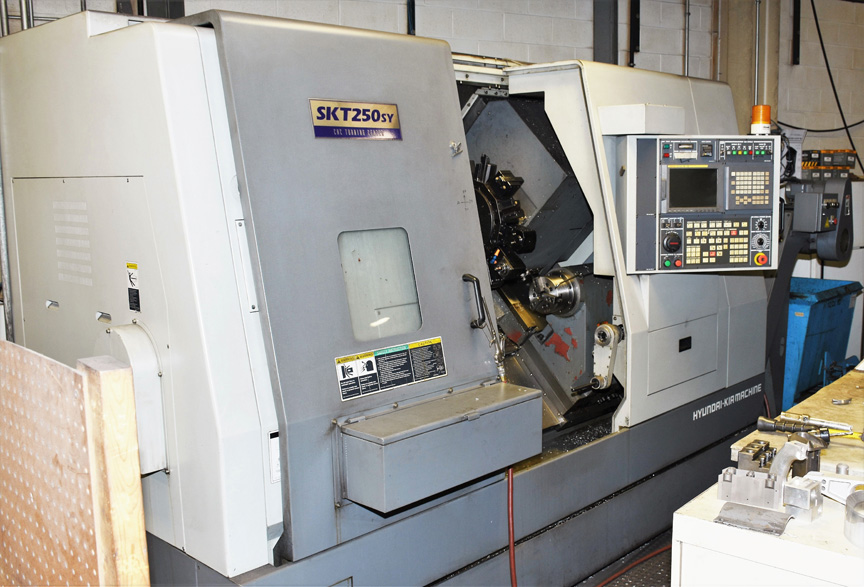

• 2006 HYUNDAI KIA SKT250SY CNC Turning Center, Sub-Spindle, C/Y-Axis, Live Milling, Fanuc 18iTB CNC Control, 25” Swing, 28” Max. Turning Length, 12-Station Turret, 10″ Chuck, 6” Sub-Spindle, Chip Conveyor, S/N G3725-0054

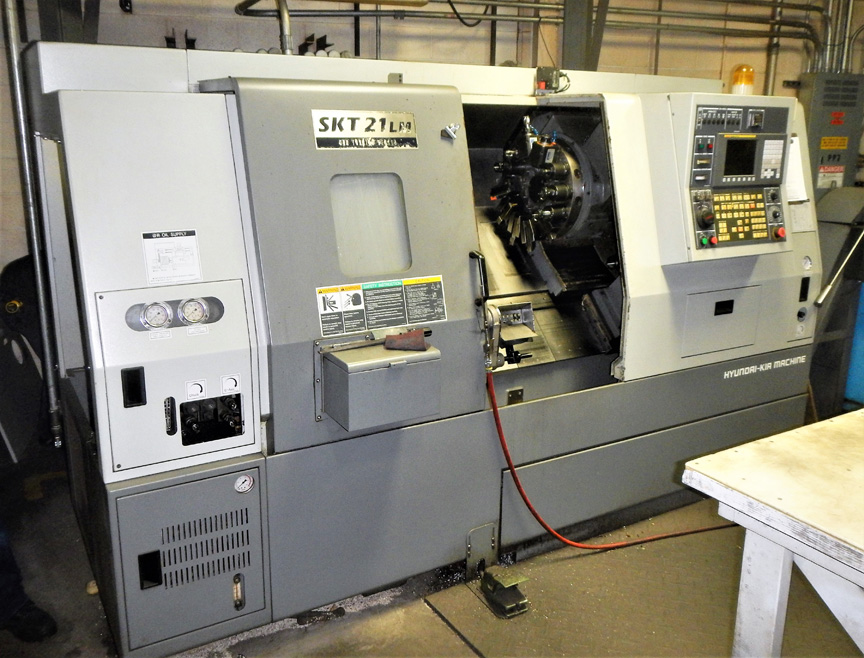

• 2006 HYUNDAI KIA SKT21LM CNC Turning Center, Live Milling, Fanuc OiTC CNC Control, 21.7” Swing, 21” Max. Turning Length, 8” Chuck, 12-Station Turret, Part Catcher, Chip Conveyor, S/N 0262

CNC WIRE EDM:

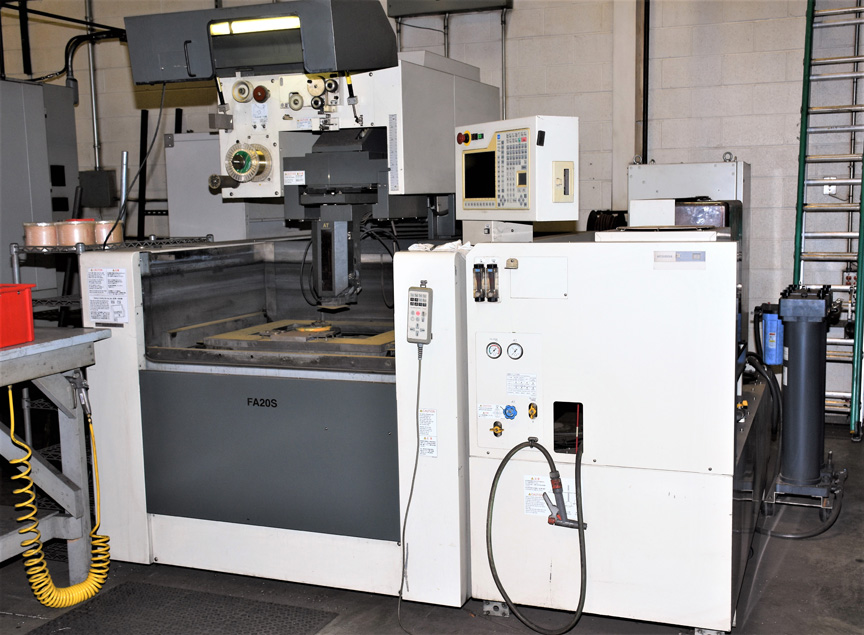

• 2006 MITSUBISHI FA20S CNC Wire EDM, 41.3” x 31.5” x 11.3” Max. Workpiece, 3300# Maximum Work Weight, Mitsubishi CNC Control, S/N J20M0796

TOOLROOM:

• TURN-PRO GS15V Vertical Knee Type Mill, 9”x49” Power Feed Table, 4200 RPM, S/N 131087
• TURN-PRO GS18V Vertical Knee Type Mill, 9”x54” Power Feed Table, 3HP, 4200 RPM, S/N 125130
• HARDINGE HC Chucker, Vari-Speed, 125-3000 RPM, S/N HC6604-T
• 6”x 18” DO-ALL G1 Surface Grinder, Direct Drive, S/N G1-45240
• 17” x 50” MORI SEIKI Lathe, Newall C80 DRO, Inch/Metric Threading, 1800 RPM, Steady Rest, S/N 8986
• 10” x 20” MONARCH “EE” Lathe, Vari-Speed, 0-3500RPM, Taper, S/N 46759
• ALSO: UNITEK Tap Disintigrator, CHICAGO Riviter, Flex-Arms, Large T-Slotted Tables, Angle Plates, Grinders, Polishers, Large Qty of Tool Holders, Vidmars, Perishable Tooling, Fixtures, Tombstones, Rotary Tables, Vises, Etc.

INSPECTION / QUALITY CONTROL:

• 2013 FARO ARM Platinum BFD-162 Portable CMM
• 2012 FARO ARM Edge Portable CMM with Laser Tracker
• BROWN & SHARP Minstral 7-10-5 CMM, 6-Pos. Probe Changer, 61” x 35” Granite Table
• STARRETT AGC-HGC2018-16 CMM, Quadra Chek 300
• MITUTOYO B706 CMM with Quadra Chek 300, 50” x 42” Granite Table
• 14” GAGEMASTER Series 20 Optical Comparator
• ALSO: Height Gages, Caliper Sets, Micrometer Sets, Pin Gage Sets, Hardness Testers, Etc.

AIR COMPRESSORS:

• KAISER SFC37 50 HP, 226 CFM, SN: 1132 (2010)
• KAISER ASD 30T 30 HP, ABT57 Dryer, Sigma Touch Controls, 134 CFM, SN: 1050 (2006)
• KAISER ASD 30T 30 HP, ABT57 Dryer, Sigma Touch Controls, 134 CFM, SN: 1036 (2006)
• KAISER TE141 AIR DRYER SN: 1395 (2010)
• GARDNER DENVER EBE99K32 30hp Screw-Type Air Compressor, Auto-Sentry Controls, S/N 37979

SHRINK WRAP MACHINES:

• (2015) TORNADO 80” TAB WRAPPER, SN: 101315TWT80
• LANTECH 1304 AUTO SHRINK, 48”x48” Pallet, 12’ Vertical, Wrap Face Adjustment, SN: SM002001

PLANT SUPPORT EQUIPMENT AND TOOLING:

• Denray 2872G DowndraftTables, Lay-out Tables, Skates, Mcullogh Mdl. 100SS Self Dumping Hoppers, Burr-King Belt Sanders, Welding Curtains, Pallet Rackings (Apprx 50 Sections), Hand & Power Tools, Tool Cabinets, Double Door Storage Cabinets, Large Qty of CNC Tooling, Tooling Carts, Vidmar Cabinets, Boring Heads, Collets, Vises, 50-Ton H-frame Press, Greenerd Arbor Press, Chicago CP450 Compression Riveter, Unitek 300 Tap Disintegrator, Metalx Stress Tester, Sand Blast Pot, 42” Bishamon Rotary Scissor Lift Table, 8000# Sheet Lifter, 10” Haas Rotary Table, Vises, Perishable Tooling, Tool Holders, Kurt “Carvlock” Tower, Pneumatic Flex Arms, Polishers, Lifting Chains & Straps, HUNDREDS OF LOTS!!

DAY 1: FABRICATING & MATERIAL HANDLING: VIEW HERE
