LASER, LARGE FLAT BED

• 2011 HANK WANG HK PS-6025 CNC Laser, Siemens 840D CNC Control, 8’ x 20’ Dual Pallets, PRC DC Type Fast Axial 6000 Watt CO2 Laser, 6,300 IPM Positioning Speed, Auto Height Sensing, Auto Focus Head, mfg. 2011, Serial No: PS65-109. Well Maintained by HK and PRC, Only 14,565 Hours.

PLATE PROCESSING MACHINES

• FICEP Typo C25 Punch / Drill / Plasma CNC Plate Machine, 98” x 236” plate size, 110 Ton Punch, 3.97” Max. Diameter Punch, 15 HP Drill Head Motor, 6 Station ATC, Drill/Tapping/Milling, .787” Max. Material Thickness, HT2000 Plasma Cutting, Hyd. Marking, Mfg. 2004, Serial No: 28626
• WHITNEY 3700 ATC Punch / Plasma CNC Plate Machine, Fanuc 16-P CNC Control, 40 Ton Punch, 63” X 120” Travel, 42 Station Tool Changer, 5” Max. Punch Diameter, .625” Max. Plate Thickness Punching, HT2000LHF Plasma, .750” Max. Plate Thickness Plasma Cutting, Fully Tooled, Serial No: 632-600-42607
• WHITNEY 647 Punch / Plasma CNC Plate Machine with PC800 Control Retro-Fit, 40 Ton Punch, Fully Tooled

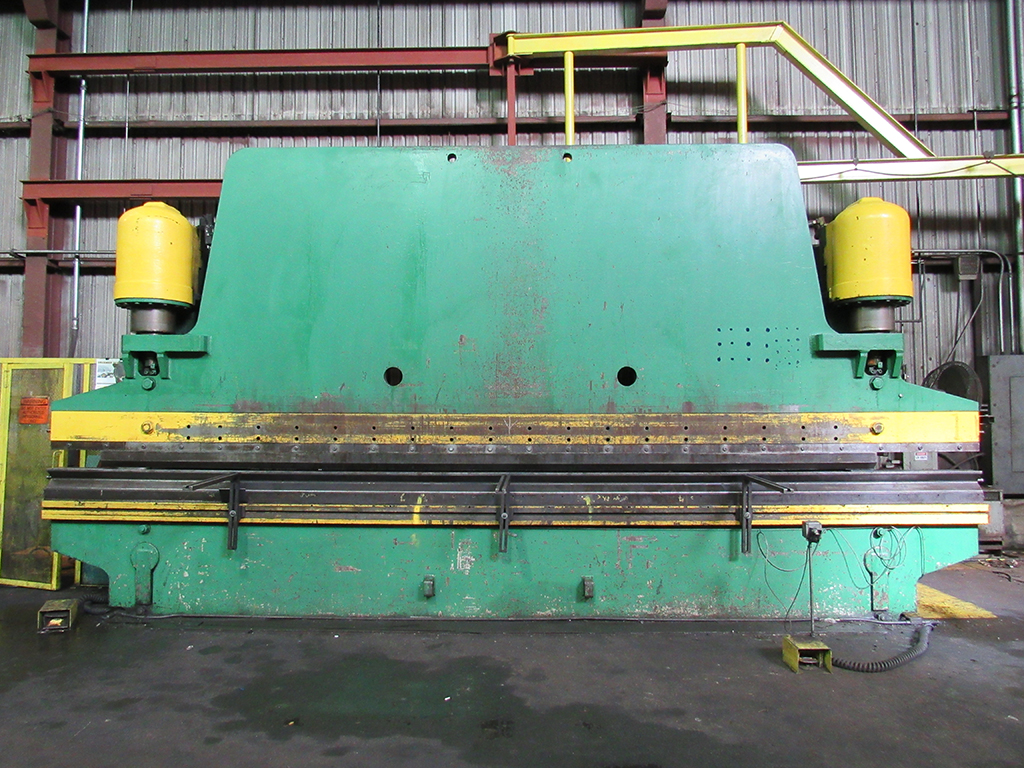

PRESS BRAKES, HYDRAULIC LARGE CAPACITY, LARGE FOUR-WAY DIES

• 1250 Ton ACCURPRESS 7-1250-24 Hydraulic Press Brake, 24’ Overall Bed Length, 20’4” Between Housings, 14” Stroke, 28” Open Height, 14” Closed Height, Power Back Gauge, Serial No: 362
• 1000 Ton ACCURPRESS 7-1000-24, 7 Axis CNC Hydraulic Press Brake, ETS 3000 CNC , 24 OA Bed Length, 20’9” Between Housings, 14” Stroke, with Titan 6-Axis Heavy Duty Back gauge (X1/X2, R1/R2, Z1/Z2), , mfg. 2008, Serial No: 9677
• 500 Ton PACIFIC K500-24, 24’ OA, 18’5” BH, 5/16” x 24’ Bend Capacity, 2’ Horns Each Side, (3) Speed Hydraulic Power Unit, 10” T-Slotted Bed, Ram Machined For Angles, Serial No: 6689
• 400 Ton CINCINNATI 400H x 12, 12’ OA, 10’6” BH, 10” Stroke, Serial No: 37126
• 175 Ton CINCINNATI 175CB x 12, 12’ OA, 10’6” BH, 10” Stroke, Automech CNC Back Gauge, Palm Button and Electric Foot Switch Controls, Serial No: 41444

PRESS BRAKE TOOLING

• BRAKE DIES, Large Quantity of Brake Dies, 4-Way Dies, Punches, Dies, Radius Punches, 24’ Adjustable Lower Die

SHEARS, LARGE CAPACITY, HYDRAULIC AND MECHANICAL

• CINCINNATI 4FL20, 20’ x 1/2” Hydraulic Plate Shear with 60” Power Back Gauge, 18” Throat, 12’ Left Hand Squaring Arm, Serial No: 38967
• PACIFIC 500R 16’ x 1/2” Hydraulic Plate Shear with 48” Power Back Gauge, (3) Front Support Arms, Rake Angle Adjustment to ¾” x 12’ Max. Capacity
• WYSONG 1238 12’ x 3/8” Mechanical Plate Shear with 48” Power Back Gauge, 6’ Squaring Arm, (2) Front Support Arms, Full Length Foot Treadle, Flush Floor, Serial No: P35-130

PLASMA/OXY FUEL CUTTING TABLE

• MESSER Titan 10’ x 25’ CNC Plasma W/Burny Phantom II CNC (Recent Retrofit), CMC Servo Pak K Series D80 Drives, HT2000 Plasma, 4 Oxy Fuel Heads, Water Cutting Table, Serial No: Titan 10/8LP-98-3722

ANGLE BENDING ROLL

• PULLMAX Z41 5” x 5” x 1/2” Angle Bending Roll

PLATE BENDING ROLLS

• WEBB 9L Initial Pinch Plate Bending Roll, ½” x 10’ Bending Capacity, 12” Roll Diameter, Air Drop End, Serial No: 5336
• LOWN Initial Pinch Plate Bending Roll

FORK TRUCKS

• TOYOTA 7FDU45, 9,150 Lb., 3 stage Mast, Diesel, Side Shift
• CATERPILLAR DP45 10,000 Lb., 2 stage Mast, Diesel, Side Shift
• CATERPILLAR DPL40, 9,000 Lb., 2 stage Mast, Diesel, Side Shift
• CLARK 8,600 Lb., 3 Stage Mast, Diesel, Side Shift
• CATERPILLAR 6,000 Lb., 2 stage Mast, Diesel, Side Shift
• CATERPILLAR 4,800 Lb., 3 stage Mast, Diesel, Side Shift

BAND SAWS

• HYD-MECH S-25A 18” x 27” Miter Cutting Horizontal Bandsaw, Auto Bar-Feed, Infeed Conveyor, Serial No: 90394303
• DOALL C-916 Horizontal Band Saw

AIR COMPRESSORS AND AIR DRYERS

• KAESER Air Center SM 15, 15 HP, Mfg. 2011, Serial No: 1031
• KAESER ASD 40, 40 HP, Mfg. 2012, Serial No: 1138
• KAESER Air Dryer

WELDERS/PLASMA CUTTERS

• LINCOLN CV-655 W/ LN-7Wire Feed
• LINCOLN CV-655 W/ LN-7Wire Feed
• LINCOLN CV-655 W/ LF-72 Wire Feed
• LINCOLN CV-300 W/LF-72 Wire Feed
• LINCOLN TIG 300/300
• LINCOLN C300 POWER WAVE
• HYPERTHERM Powermax 1250 Plasma Cutter

ADDITIONAL MACHINES, TOOL ROOM, TOMBSTONES, FIXTURES

Radial Arm Drills

Grinders

Welding Including Heavy T-Slot Weld Tables, Other Support Machinery

Tool Room with Perishable Tooling, Cutters, Maintenance Equipment, Shelving, Etc..

Huge Assortment of Usable & Scrap Steel Plates, Bars, Angles, Etc..

(3) Vehicles Including Bucket Truck, Flatbed & Pick-up Truck

More Equipment & Support

Plus Much More!!
