FEATURED ASSETS:

5-AXIS CNC BRIDGE MILL

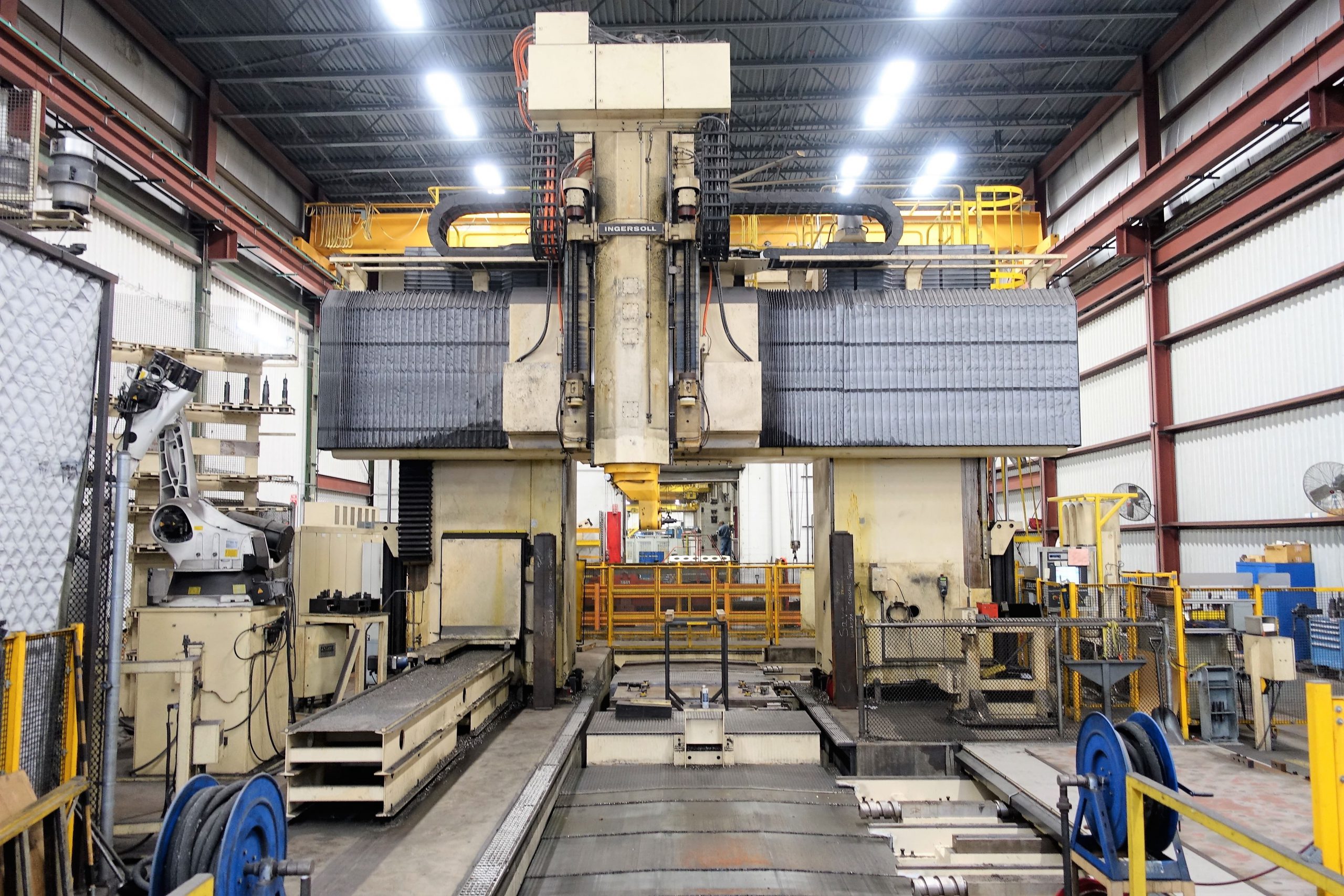

• 2007 Ingersoll Double Column 5-Axis Bridge Mill, Siemens 840D CNC Control, (2) 98.43″x 196.85″ Pallets, 44,000 Lb. Pallet Capacity, X-393.7″, Y-217.1″, Z-59”, 4-Station Automatic Attachment Changer with 2-Axis Orthogonal Twist Head, (2) Right Angle Milling Heads and Swivel Head, Feedrates IPM: X – 1181, Y – 1575, Y- 393.7, 291-Position Automatic Tool Changer with Kuku KR210 2000 Tool Robot, Hydraulic Power Unit, Chiller, Lubrication Service Panel, Renishaw Probe, Gun Drilling Attachment, Chip Conveyor, S/N 2N00023-1 VIEW REF #32608


CNC HORIZONTAL BORING MILLS

• Giddings & Lewis FT3500 CNC Horizontal Boring Mill, Fanuc 310i-Model B CNC Control, 6.1” Spindle Dia., X-171”, Y-82.67”, Z-49.2”, 60” x 112” Infeeding Rotary Table, Full B-Axis, 72” V-Axis (Table Infeed), Spindle Speeds 10-3500 RPM, 60-Position Automatic Tool Changer, Through Spindle Coolant, 50 Taper, Part & Tool Probing, (2) 72” x 92” T-Slotted Floor Plates, 50/75 HP Spindle Motor, S/N 485-0001-08 [NOTE: Only 2730 Spindle Hours!] VIEW REF #42978

• Giddings & Lewis H70-T CNC Horizontal Boring Mill, Fanuc Oi-MD CNC Control, 7” Spindle Dia., X-168”, Y-120”, Z-48”, W-99”, Spindle Speeds 5-1200 RPM, 170” x 72” T-Slotted Table, 70,000 Lbs. Table Capacity, 75/100 HP AC Spindle Motor, S/N 460-06-80 [NOTE: Complete Retrofit in 2022] VIEW REF #32957

• Giddings & Lewis G60-FX CNC Floor Type Horizontal Boring Mill, 6” Spindle Dia., X-408″, Y-91″, Z-48″, Spindle Speeds 12-2500 RPM, 80-Position Automatic Tool Changer, Thru Spindle Coolant, 50 Taper, Giddings & Lewis 8000M-B CNC Control, 50 HP Spindle Motor, S/N 455-81-96 VIEW REF #31859

• Giddings & Lewis MC60-FCX CNC Floor Type Horizontal Boring Mill, 6” Spindle Dia., X-432″, Y-79”/84″, Z-36″, W-Axis (Column Infeed) 30”, Spindle Speeds 12-2500 RPM, 80-Position Automatic Tool Changer, 50 Taper, Thru Spindle Coolant, Giddings & Lewis 8000M-B CNC Control, Right Angle Head, 40 HP Spindle Motor, S/N 455-53-90 VIEW REF #31886


CNC VERTICAL BORING MILL

• 144” Gray Series 300 CNC Vertical Boring Mill, (2) Rams, 144” Table Diameter, 151” Max Swing, 120” Max Height Under Rail, 96” Ram Stroke, Table Speeds 0.8-50 RPM, 100 Ton Table Capacity, Giddings & Lewis 8000 CNC Controls, Power Rail Elevation, 75 HP Table Motor, S/N 9927 VIEW REF #31395

ADDITIONAL EQUIPMENT

• Mori Seiki NT4300DCS/1000 CNC Milling & Turning Center, Mori Seiki F31i-A5 CNC Control, 25.9” Max Turning Diameter, 41.2” Max Turning Diameter, Spindle Speeds to 2,500 RPM, B-Axis Swivelling Milling Spindle, B-Axis +/- 120 Degrees, Milling Spindle Speeds to 12,000 RPM, High Pressure Coolant System, Chip Conveyor, 100-Position Automatic Tool Changer, S/N NT430111001 VIEW REF #43453

• Mori Seiki MT-4000B/2000 CNC Milling & Turning Center, Mori Seiki MSG-501 CNC Control, 23.5” 3-Jaw Chuck, 37” Max Swing, 103.1” Between Centers, 81.5” Max Turning Length, Spindle Speeds 15-1500 RPM, 50 HP, B-Axis Swivelling Milling Spindle, C-Axis, 120-Position Automatic Tool Changer, Tailstock, Chip Conveyor, S/N 7 VIEW REF #43452

• Cincinnati Milacron 24C-HD CNC Slant Bed Lathe, 26″ Swing, 60″ Z-Axis Stroke, 24″ Chuck, 4″ Bore, Acramatic 950 CNC Control, 1979 VIEW REF #22483
• 66″ Campbell G22 Twin Spindle CNC Vertical Universal Grinder, 66” Table Diameter, 82” Max Swing, 48” Max Height Under Rail, (2) Spindles, 1800-3600 RPM, 22” Ram Stroke, (6) 6” x 18” Table Magnets, Campbell 4-Axis CNC Control, S/N 652-83 VIEW REF #21954

CNC ROTARY TABLES

• 63” x 98” Eimeldingen 2-16-1600 CNC Rotary Table VIEW REF #28151

• Giddings & Lewis Model 360C 120″ x 120″ Infeeding B-Axis CNC Rotary Table VIEW REF #43427
