5-AXIS UNIVERSAL MACHINING/TURNING/GRINDING CENTER

• 2011 DMG DECKEL MAHO DMC 125 FD DuoBLOCK CNC 5 Axis Universal Machining/Turning/Grinding Center, s/n 1196-000030-3, w/ SIEMENS 840D CNC, Travels: 49.37” X, 49.37” Y, 39.37” Z, (2) 43.3” Dia. Pallets with 49” Sub Plates, 4400 Lb. Pallet Weight Cap., 0.001° Pallet Indexing, 20 RPM Pallet Speeds, -30°/+180° Spindle. Head Swivel, HSK 100A Spindle Taper, 12,000 RPM Spindle Speeds, 37.5 HP, Motor, 120 ATC, Full B-Axis Contouring Tables, Full A/C-Axis Swivel Spindle Head, 2-Station High Speed Pallet Changer, Coolant Thru Spindle, Paper Filtration System, Chip Conveyor

CNC VERTICAL TURNING CENTERS & BORING MILLS

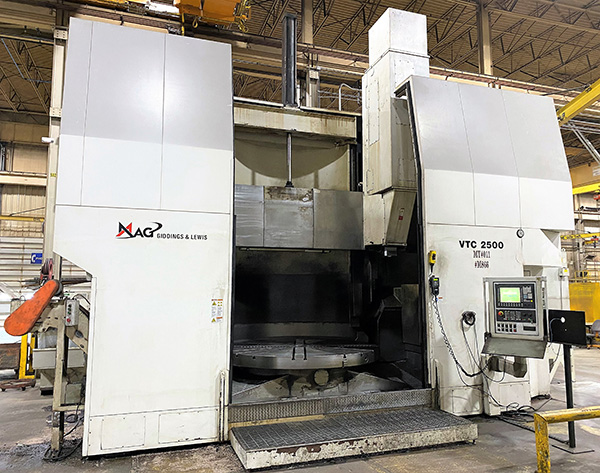

• 2007 GIDDINGS & LEWIS MAG VTC-2500 CNC Vertical Turning/Milling Center, s/n 525-0025, w/ SIEMENS 840D Control, 106.29″ Max. Turning Dia., 98.42″ Dia. Table, 1 to 200 Table RPM, 112 hp Table,  C-Axis-.001 Deg., Up to 4000 RPM Milling, 50 hp Spindle, 25-Station ATC, 12-Station Horizontal ATC, 787 IMP Rapid Traverse, Right Angle Milling Head, RENISHAW RMP 60 Part Probe, Tool Probe, High Pressure Through Spindle Coolant, Paper Filtration, Chip Conveyor, Hand Held Pendant VIEW VIDEO
• 2009 GIDDINGS & LEWIS MAG VTC-1600 CNC Vertical Turning / Milling Center, s/n 524-0093, w/ SIEMENS 840D Control, 78.74″ Max. Turning Dia., 62.99″ Dia. Table, 88.26” Height Under Ram, 68.89” Vertical Ram Travel, 3 Station Pallet Changer, 1 to 400 Table RPM, 100 hp Table, C-Axis – .001 Deg., Up to 4000 RPM Milling, 50 hp Spindle, 60-Station ATC, Right Angle Milling Head, Tool Probe, Through Spindle Coolant, Chip Blaster, Chip Conveyor VIEW VIDEO
• GRAY 144” CNC Vertical Boring Mill, s/n 9927, w/ G & L 8000 CNC Control, 151″ Max. Swing, 144″ Dia. Table, 120″ Under Rail, 2-Vertical Rams on Cross Rail w/ 96″ Vertical Travel, 75 hp Table, 0.8 to 50 Table RPM VIEW VIDEO
• GIDDINGS & LEWIS 108-VTC 108” CNC Vertical Boring Mill, s/n 57-0007-94, w/ G & L 8000 CNC Control, 12-Station ATC, 120″ Max. Swing, 108″ Dia. Table w/Comb. 4-Jaw Chuck, 96″ Under Rail, 62″ Vertical Ram Travel, 75 hp Table, 2.5 to 150 Table RPM, Hardened Ways, Coolant Thru Ram, Chip Conveyor, 1994 VIEW VIDEO

CNC HORIZONTAL BORING MILLS

• 6″ GIDDINGS & LEWIS H600-FX CNC Floor Type Horizontal Boring Mill, s/n 465-13-91, w/ G&L 8000M CNC Control, X-360″, Y-168″, Z-48″ Travels, 12-2200 RPM spindle speeds, 50 HP, 40 ATC, Thru Spindle Coolant, #50 ANSI Spindle Taper, 60” x 84” G & L Air Lift Rotary Table on Infeeding Slide, 96” x 144” G & L Air Lift Rotary Table on Infeeding Slides (Rotary Tables May be Sold Separately), 1991 VIEW VIDEO
• 6″ GIDDINGS & LEWIS G60TX CNC Table Type Horizontal Boring Mill, s/n 450-78-80, w/ G&L 800M CNC Control, X-168”, Y-120”, W-60”, Z-36” (Spindle Travel Beyond Perm Mounted Spindle Support), 72” x 168” Table, 72” x 108” Hydrostatic Rotary Table (May be Sold Separately) #50 ANS  Taper,  40 HP, 40 ATC, Chip Conveyor, Steel Way Covers VIEW VIDEO
• Giddings & Lewis 72” x 108” Hydrostatic Heavy Duty Rotary Table (Equipped on G&L 6″ HBM s/n 450-78-80)
• (2) Giddings & Lewis Air Lift Rotary Tables, 96″ X 144″ and 60″ X 84

TURNING CENTERS & VMCs

• 2011 OKUMA SPACETURN LB4000-EX-BBMY CNC Turning Center, s/n 158573, w/ OSP-P200LA CNC Control, 26.38” Swing Over Bed, 18.90” Swing Over Cross Slide, 59.06” Max Turning Length, 59.84” Between Centers, 0.001° C-Axis Indexing, 5.51” Y, 30-3000 RPM Spindle. Speeds, 4.41” Spindle Bore, A2-11 JIS Spindle Nose, 50/40 hp Spindle Motor, 45-6000 RPM Live Milling Spindle, 12-Station Turret, 5.91” Quill Stroke, MT5 Quill Taper, Tool Presetter, Tailstock, Chip Conveyor
• OKUMA Impact LU45-M Turning Center s/n 0204, w/ OSP-U100 Control, 33.07″ Swing Over Covers, 118.11″ Centers, 21.85″ Max. Turning Dia., 24” 3-Jaw Hydraulic Chuck, 5.12″ Bar Cap., 2400 RPM, 12-Station Upper Turret w/ Live Tooling, 10-Station Lower Turret, 60 HP Motor, Tailstock, Chip Conveyor, 1999 VIEW VIDEO
• 60” x 180” AMERICAN CNC Lathe, Model 6040×180, s/n 79039-74, w/ G&L 8000 CNC Control, 180″ Centers, 60” Swing, 55” 4-Jaw Chuck, 75 HP, 4-Position Tool Post, Chip Conveyor VIEW VIDEO
• 32” x 144” AMERICAN CNC Lathe, Model 3220Wx144, w/ G & L 8000 CNC Control, 144″ Centers, 36” Swing, 28” 4-Jaw Chuck, 40 HP, 4-Position Tool Post, Chip Conveyor VIEW VIDEO

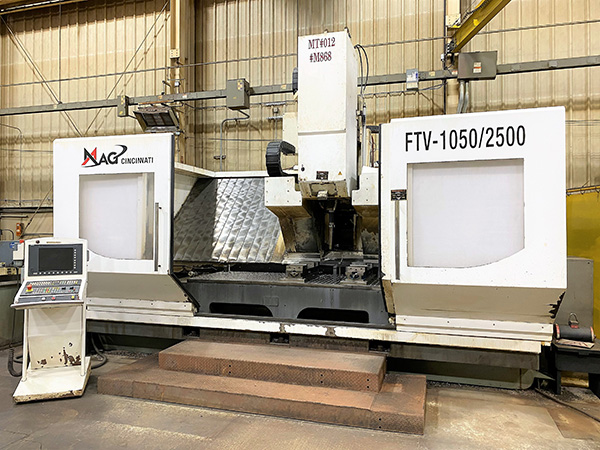

• 2007 CINCINNATI MAG FTV-1050/2500 Vertical Machining Center, s/n 7098-S00-KM0297, w/ SIEMENS 840 Control, 123.6” x 39.37” Table, Travels; X-100”, Y-39.56”, Z-31.5”, 36 ATC, 50 Taper, 30/50 hp, 17,600 Lb Table Cap., Coolant Thru Spindle, Chip Conveyor
• GIDDINGS & LEWIS 25V Vertical Machining Center, s/n 924-0050-93, w/ G&L 8000 Control, 80”x40” Table, Travels: X-80”, Y-40”, Z-40”, 40 ATC, 50 Taper, 4,000 RPM, Chip Conveyor VIEW VIDEO

MACHINE ACCESSORIES, TOOLING AND SUPPORT

Angle Plates – Various Capacities; Box Tables, 2,000 + Pieces HSK, KM80 and CAT 50 Tool Holders, KURT Vises, Indexing Heads, Clamping Hardware, Perishable Tooling, Carbide Inserts, Boring Bars, etc.

FABRICATING MACHINES

• 2008 ACCURPRESS 7100024 1,000 Ton Hyd. Press Brake, s/n 10084, w/ ETS PLC Control, 24’ Bed, 20’6” Between Housings, 14” Throat, 24” Open Height, 10” Closed Height, 12” Bed Width, 60 HP Hyd. Motor, Merlin Light Curtains
• CHICAGO DREIS & KRUMP 1000VC18 1,000 Ton Hyd. Press Brake, w/ 22’ Bed, 18’5” Between Housings, 18” Throat, 22’ x 30” T-Slotted Bed
• 2007 KINETIC K5000DA CNC Plasma/Drill Plate Processing Center, s/n KD5000DA-6250-242, w/ TORCHCUT 6 PC Based CNC Control, LCD Touch Screen, 488” x 128” Max. Cut Cap., High Speed Drilling Head, 4” Dia. Cap., 1.25” Tapping Cap., 40 hp Spindle Motor, 24 ATC, (2) HYPERTHERM HPR260XD Plasma Units – (1) Auto Beveler Torch, (1) Straight Line Torch, (2) Oxy-Ace Torches, Mist Tool Coolant, Laser Pointing, Water Table VIEW VIDEO
• 2007 MESSER TMC 4516 12’ x 47’ CNC Plasma/Oxy Cutting System, s/n TMC4516LP-07-4903, w/ MESSER Global CNC Control, 144” Maximum Cutting Width, 567” Effective Cutting Length, 672” Track Length, 144” x 544” Table Size, 8” Max Cutting Height, 1400 IPM Max Positioning Speed, 400 IPM Max Contouring Speed, w/ (1) Global Rotator Infinity Plasma Bevel Head, (4) Oxy Fuel Torch Stations w/ Messer OL300 OxyFuel Lifter, Hypertherm HPR400XD 400A Hyperformance Plasma Unit (Upgraded in 2010), Slagger Self Cleaning Downdraft Cutting Table, Auto Torch Spacing & Selection, Rack & Rail Cleaning System, Messer Donaldson Free Standing Dust Collector, Camera VIEW VIDEO
• BERTSCH 14-E Initial Pinch Plate Roll, s/n M-10206, 8’ X 1-5/32 Cap., 16” Dia. Rolls, Air Drop End, Joy-Stick Solid State Control
• HYD-MECH V-18 Auto Vertical Bandsaw, w/ 45 Deg. Left/Right Mitering Head, Power Clamp
• WA WHITNEY 765-000 150 Ton Hyd. Angle Shear, s/n 15982
• (3) WA WHITNEY Hyd. Punches – Various Tonnages and Throats

WELDING DEPARTMENT

• 1998 ARONSON G-1200 120,000 Lb Welding Positioner, s/n 707, w/ Power Rotation, 120”x120” Table
• ARONSON HD600CS 60,000 Lb Welding Positioner, s/n 7711, w/ Power Rotation, 96”x96” Table
• RANSOME 400P 40,000 Lb Welding Positioner, s/n 243079, w/ Power Rotation, 120”x120” Table
• RANSOME 250P 25,000 Lb Welding Positioner, s/n 6521394, w/ Power Rotation, 60”x60” Table
• RANSOME 200P 20,000 Lb Welding Positioner, s/n 2218573, w/ Power Rotation, 60” X 60” Table
• 1998 RED-D-ARC MARK-FIVE 6K 12,000 Lb Welding Positioner, s/n 52263, w/ Power Rotation, 48” X 48” Table
• RANSOME 12X12 Welding Manipulator, w/ LINCOLN NA-5 Sub-Arc Welding System, LINCOLN DC1000 Welder

NELSON TR 850 Stud Welding System; LINCOLN PRECISION TIG 275 Tig Welder; LINCOLN WELDANPOWER 225 G7 Generator Welder; (14) LINCOLN IDEALARC DC600 Mig Welders, w/ DOUBLE HEADER DH-10 Wire Feed, Boom; (10) LINCOLN IDEALARC DC600 Mig Welders, w/ LN-7 Wire Feed, Boom;(2) LINCOLN IDEALARC DC600 Mig Welders; (2) LINCOLN IDEALARC DC400 Mig Welders, w/ LN-7 Wire Feed, Boom; LINCOLN IDEALARC DM 500/500 AC/DC Arc Welder; LINCOLN IDEALARC DC400 Arc Welder; (2) THERMAL DYNAMICS HYPERTHERM POWERMAX 1250 Plasma Cutters; THERMAL DYNAMICS HYPERTHERM POWERMAX 185 Plasma Cutter

MACHINE TOOLS

• MITTS & MERRILL 2-HFRD-KS Hydraulic Keyseater, s/n KM-7517, 12” Stroke, 1.25” Max. Key Width, 4-29 FPM Cutting Speed, .002-.010 Feed
• MITTS & MERRILL 9B Hydraulic Keyseater, s/n KM-7512, 60″ Stroke , 5″ Max Key Width, 8″ Largest Post, 4-23 FPM Cutting Speed
• 30” x 144” CINCINNATI Model DH Plain Cylindrical Grinder, s/n 3550P5 5Z-0003, 30” Swing, 144” Centers, w/ Allen Bradley Panelview Plus 1000 PLC Control, SBS SB-5500 Balancing System, Paper Filtration System, Rebuilt By Machine Tool Research

DAKE 150 Ton Traveling Column Hyd Straightening Press, w/ 24’x8’ Table; LOGEMAN Bros. 200 ton Hyd. Shop Press, s/n 8108; ENERPAC 100 Ton Hyd. Shop Press; MONARCH 18” 7BP Lathe, s/n 17094, 20.5” Swing, 72” Between Centers, 17-700 RPM, Tool Post, Tailstock; CARLTON 8’ Radial Arm Drill, 9” Column, 10-1000 RPM; OOYA RE5 3500 11’ Radial Arm Drill, s/n 766555, w/ 30” Column; CARLTON 3’ Radial Arm Drill, w/ 11” Column; GALLMEYER & LIVINGSTON No 55 Hyd. Surface Grinder, s/n S-55254; VAN NORMAN No. 38 Milling Machine, s/n 38ME-4132-456, 16” x 72” Table, 50-2000 RPM; DOALL 16-3 Vertical Bandsaw, s/n 50-56495; EVERETT 16-DM Chop Saw, s/n 16-4862; ALSO; CINCINNATI Tool & Cutter Grinder, OLIVER Drill Point Grinder, HAMMOND & BALDOR Pedestal Grinders, Belt Sanders, Chucks, Rotary Tables, Machine Vises, Bench Vises, and More

ROLLING STOCK

• 2008 BOBCAT S175 Skid Steer Loader, s/n A3L520730, Sold Separately – Snow Blade and Forks Attachment
• (2) KOMATSU FG25ST-16 5,000 Lb LPG Forklifts, s/n A234349, Side Shift, 48” Fork Length, OH Protection
• HYSTER E35HSD 3,500 Lb Electric Forklift, s/n A219N03022E
• 2007 JLG 450AJ  4WD Articulating Boom Lift, s/n 030010516, 45’ Max Platform Height, 25’ Horizontal Reach, 550 Lb Platform Capacity
• (4) JLG 1930 Electric Scissor Lifts as new as 2013
• 2006 MINUTEMAN POWER BOSS TSS/82 Electric Power Sweeper, s/n 15953066
• TENNANT M20 Electric Power Scrubber, s/n 3705
• WALKER MTCHS Commercial Snowblower, s/n 107285

FACTORY SUPPORT EQUIPMENT

CUDA H20-4860 Front Load Parts Washer, s/n 10434450-1000180, w/ 5,000 Lb Turntable Cap., 200 GPM; PARKER HANNIFIN Hyd. Hose Crimper & Clamping Dies, Hyd. Fitting, Hyd. Hose; RIDGID Power Threaders; GREENLEE Equipment; VIDMAR Ball Bearing Multi-Drawer Cabinets, STRONGHOLD Cabinets, KNAACK Gang Boxes Tool Chests, Electric and Pneumatic Hoists, Gantry and Jib Cranes, Dumping Scrap Hoppers, Electric and Pneumatic retractable Hose Reels, Hardwood Work Benches, Shop Cabinets, Shop Carts, Hand Tools, Power Tools, HD Tables, HD Saw Horses, Welding Supplies, Oxy-Ace Torch Sets, Ladders, Lift Carts, Shop Carts, Pallet Jacks, Safety Ladders; Tool Boxes; Rolling Gantries; Electric Pallet Jacks; Pallet Jacks; Spill Kits & Platforms; Stock Carts; STORES & MAINTENANCE CRIB Including Large Assortment of Bearings, Hardware, Motors, Consumables, Switches, Contactors, Breaker Boxes, Fuses, Belts, Boards, Motors, Bearings, Valves, Hoses, Ballasts, Lights, Chain, Gears, Cylinders, Filters, Sprockets, Cams, Solenoids and More

CLICK HERE TO VIEW DAY 2 ONLINE AUCTION DETAILS
