** PRE-AUCTION OFFERS INVITED ON MAJOR ASSETS **
Contact: Adam Herman, 631-249-5566, [email protected]
CLICK HERE TO VIEW LIVE WEBCAST AUCTION PREVIEW VIDEO
FEATURED ASSETS:
HEAVY DUTY LATHES:
- Skoda SR2000 x 12M Heavy Duty Lathe, 78.74” Swing, 472” Between Centers, (2) Carriages, 63” Swing Over Carriages, 78.74” 4-Jaw Chuck, Spindle Speeds 1.7-280 RPM, 110,230 Lbs. Weight Capacity (Unsupported), Steady Rests, Operator Station on Each Carriage, Power Tailstock, Inch/Metric Threading on Front Carriage, Taper Turning with Power Compound, 3-Way Bed, Carriage to Pass Steady Rest & Tailstock, Updated Electrics in 2018 with new SPEDESTER DC Digital Drive and 150 HP Baldor Main Motor, S/N 21507 (Boring Bar May Be Sold Separately) VIEW VIDEO
- VDF Wohlenberg V1400B Heavy Duty Lathe, 53.14” Swing, 252” Between Centers, 45” Swing Over Carriage, Inch/Metric Threading, 48” 4-Jaw Chuck, Spindle Speeds to 710 RPM, (3) Steady Rests, 3-Way Bed, Remote Pendant, 60 HP, S/N 3740 VIEW VIDEO
- Gurutzpe TimeMaster Super BT Heavy Duty Lathe 10,000/800, 62.99” Swing Over Bedways, 393.70” Between Centers, 39.37” 4-Jaw Chuck, Spindle Speeds 2.8-400 RPM, Inch/Metric Threading, (3) Steady Rests, Follow Rest, Boring Bar, Pendant Controls, 50 HP, S/N 5-15 VIEW VIDEO
- Dainichi DM102 x 700 Manual Lathe, , 40.25” Swing, 275” Between Centers, 24” 4-Jaw Chuck Spindle Speeds 8.5–630 RPM, Inch/Metric Threading, (4) Steady Rests, 25 HP, S/N 17992 VIEW VIDEO
- Dainichi DLG-SHB Manual Lathe, 24.8” Swing, 196” Between Centers, 15.74” Over Carriage, Spindle Speeds 9–800 RPM, Inch/Metric Threading, Taper Attachment, 18” 4-Jaw Chuck, Teledyne Gurley Pathfinder 2-Axis Digital Readout, (3) Steady Rests, 15 HP, SN 17690 VIEW VIDEO
ROLL GRINDERS:
- Herkules WSB450 CNC Roll Grinder, Fanuc 18i-T CNC Control, 63” Swing, 275.59” Between Centers, 3.34” – 63” Grinding Diameter, 32.67” Center Height, 200 – 800 RPM Wheelhead Speed, 29.52” Max. Grinding Wheel Diameter, 30.70” Wheelhead Infeed, Tailstock, (4) Open Rests, Paper Filtration System, Superfinishing Attachment, 44,090 Lbs. Weight Capacity (with Steady Rests), 26,000 Lbs. Weight Capacity (Unsupported), 47 HP, S/N 38875, Remanufactured & Retrofit by Machine Tool Promotions in 2001 VIEW VIDEO
- Farrel TWRG 72″ x 376″ Double Wheel Swing Rest Roll Grinder, 55″ Max. Roll Diameter on Center Line, 72″ Max. Roll Diameter Above Center Line, 352″ Roll Nominal Face Length, 376″ Grinding Wheel Traverse Length, 20″ x 3″ Max. Grinding Wheel Size, 15 HP Grinding Wheel Motor, 25 HP Headstock Motor, 25-1600 RPM Grind Speeds, .375-24 RPM Roll Speeds, Electric Crowning w/ Updated Electronics, Stone Grinding on Front and Rear, Variable Crown Roll Drive Unit, Belt Grinding Attachment, (2) Neck Rest and Neck Rest Gibs, Coolant System, S/N 85A1105 [Location: 10 Industrial Highway, Lester, PA]
CNC SLANT BED LATHE:
- Dainichi Model B 95 x400 CNC Lathe, 36” Swing x 157” Between Centers, 12-Station Vertical Turret, Tailstock, Steady Rest, Fanuc 6T CNC, S/N 20038
CNC & MANUAL TABLE TYPE HORIZONTAL BORING MILLS:
- TOS Varnsdorf WHN13 CNC Horizontal Boring Mill, Fanuc 16M CNC Control, 5.12” Spindle Diameter, #50 Taper, Travels: X-137.79”, Y-78.74”, Z-49.21”, W-31.49”, 71” x 86.6” Built-In B-Axis Rotary Table, Speeds 5-1200 RPM, Remote Pendant, 50 HP VIEW VIDEO
- Nomura BN-110WR CNC Horizontal Boring Mill, Fanuc 6M CNC Control, 4.33” Spindle Diameter, #50 Taper, X-78.74”, Y-60”, Z-55.12”, W-19.68”, 55” x 63” Built-In Rotary B-Axis Rotary Table, Speeds 10-1220 RPM, 25 HP
- Giddings & Lewis 70-E4-T, 4” Spindle Diameter, #50 Taper, Travels: X-108”, Y-60”, Z-30”, W-44”, 48” x 120” Table, 6.9 – 1320 RPM, Power Drawbar, Pendant, Acu-Rite 3-Axis Digital Read Out, #50 Taper, 20 HP, S/N: 400-97-67
CNC & MANUAL VERTICAL BORING MILLS:
- Webster Bennett Series “S” CNC Vertical Boring Mill, Fanuc 21i-T CNC Control, 78.74” Table Diameter w/4-Face Plate Jaws, 86.61” Maximum Workpiece Diameter, 62.99” Maximum Height Under Rail, 3.7 – 98 RPM Table Speeds, 39.37” Cross Rail Adjustment, 75.98” Maximum Height Under Turret, 37.40” Turret Slide Travel, 56.3” Maximum Horizontal Travel of Turret (From Center of Table), 5-Position Turret Head, 75 HP Table Drive Motor VIEW VIDEO
- Monarch VLN-14 Vertical Boring Mill, GE 2000 NC Control, 57” Table Diameter, 65” Maximum Turning Diameter, 68” Maximum Swing, 39” Maximum Height Under Rail, 2.7 – 242 RPM Table Speed, 39” Ram Stroke, 54” Horizontal Ram Travel, 12-Station Automatic Tool Changer, 50 HP Table Drive Motor
- Bullard 36” Dynatrol VTL, 5-Position Turret & Side Head, 36” 4-Jaw Chuck, 39” Swing with Side Head, 48” Swing with Side Head Below Table, 30.5” Maximum Height Under Rail, Table Speeds (20) 8.15 – 300 RPM, 26” Turret Stroke, Pendant Controls, TDA Inch/Metric Threading Attachment, 30 HP Table Drive Motor, S/N 31933 VIEW VIDEO
FOUNDRY EQUIPMENT:
- 1998 Inductotherm 1500 KW 70 HZ Furnace System with (2) 7.5 Ton Furnaces, Complete System with Preheat
- 1998 Gudgeon Model TF3000 3000# Per Hour Thermal Reclamation System
- Pangborn Mechanical Reclaim System with G/K VM120 Vibramill, Related Bucket Elevators, Rotoconditioner, Sand Cooler, Transporter
- 6’ x 10’ Shakeout
- (2) Dependable Fordath Continuous Mixers with Pumps and Controls
- Palmer M50 Continuous Mixer With Feed Bucket Elevator and Hopper
- Quiptech 2000# Mold Handler
- (3) 48”-58” Geared Lip Pour Ladles
- North American Gas Fired Ladle Preheat System with Blower
- Pangborn Sand Reclamation Systerm [1980]
- Shake out Table
METALS LAB:
- Applied Research Technologies MA 433 Metal Analyzer
- RIEHLE Tensil Tester, 120,000 lbs. capacity, SN R-68060
- LECO GP 25 Tester
- Ecomat 5 Grinder/Polisher
- Rockwell Wilson Hardness Tester
- Buehler Ecomet 5 Grinder Polisher
- Buehler Specimen Mount Press
- Nikon Micrometrics Mircoscope
ADDITIONAL EQUIPMENT:
- Wheelabrator 96” Rotary Shot Blast System, S/N A121501, with Dust Collection System
![SOLD](https://www.prestigeequipment.com/wp-content/uploads/2019/09/SOLD3.jpg)
- Landis Threader, Model 1 ½ L, 1.7-212 RPM, 9” Chuck, S/N 230
- Schenck H2B Balancer, 20,000 Lbs. Capacity
- Carlton Radial Drill
- KR Wilson 75-Ton Hydraulic H Frame Press
- South Bend 16” x 72” Lathe
- (2) Burnham 200 HP Boiler Systems
- McGraw-Edison/Onan 60 0DYA-1 5R/196I0J Portable Generator
- (1) Chatillon 50,000 Lbs. Crane Scale & (1) Digital Crane Scale
- DoAll C1212M Horizontal Saw w/ Material Clamp and Roller Exit Conveyor
- DoAll Vertical Bandsaw
- Dual Head Flange Rolling Machine
- Okuma LC-20 CNC Slant Bed Lathe, Okuma OSP 5000L-G CNC Control
- Monarch VMC 150 CNC Vertical Machining Center, Fanuc 6 CNC Control, 84″ x 36″ Table, Travels: X-74″, Y-30″, Z-36″, Spindle Speeds 30-6000 RPM, S/N 87523
- Giddings & Lewis Right Angle Head, Model A
- Ingersoll Rand R90ie Air Compressor, 125 HP, S/N VF1169U11258
- Schaett E3000YE Electric Stand Up Fork Lift
- GMC Dump Truck, Case Excavator with Magnetic Lifting Attachment, Dresser Model 510B Diesel Payloader
- Large Quantity of Micrometers, Height Gauges, Vernier Calipers, Bore Gauges, Precision Squares & Levels, Hardness Testers

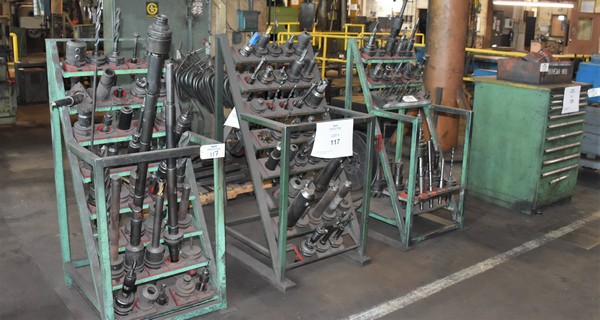

- Incredible Offering of 40 and 50 Taper Tooling, Angle Plates, (50+) Lista Cabinets, Carbide Inserts, Woodworking Shop, Pallet Jacks, Saws, Kurt Vices, Rigging Straps & Chains, Welders, Flameproof Cabinets, Grinding Department, Air Compressors, Shop Support and More!
