110 MM Doosan DBC-110 CNC Table Type Horizontal Boring Mill
Model:
DBC-110 II
Age:
2015
Ref#:
43734
Prestige Equipment is the world's leading provider of 110 MM Doosan DBC-110 CNC Table Type Horizontal Boring Mill & machine tools & fabricating equipment. Take a look at our wide selection of new and used CNC Table Type Horizontal Boring Mills (HBM) for sale.
Product Specifications
Features:
✓

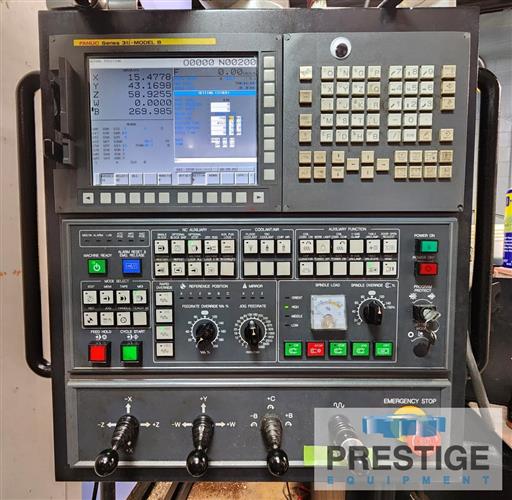

Fanuc 31i-A CNC Control
✓
Built In B-Axis Rotary Table
✓

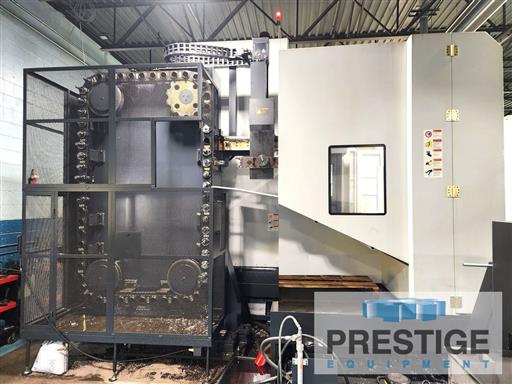

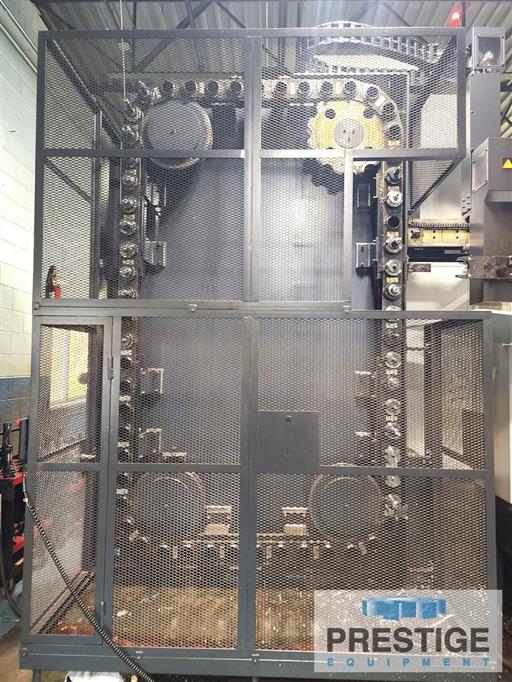

60-Station Automatic Tool Changer
✓
Coolant Through Spindle
✓

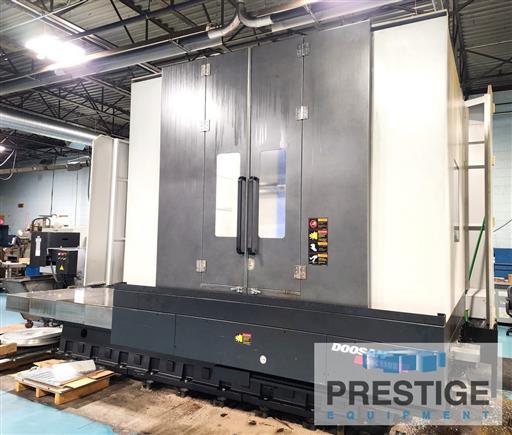

Full Enclosure
Product Specifications
CAPACITY:

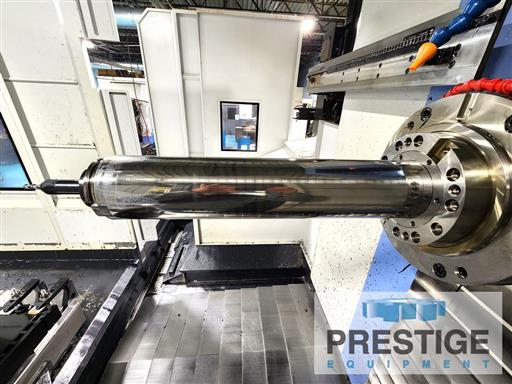

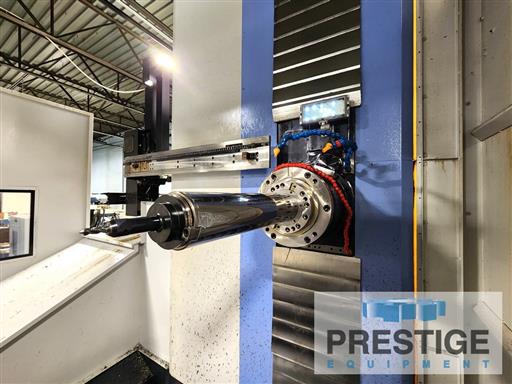

Spindle Diameter
110 MM
Spindle Taper
#50
Vertical Headstock Travel,Y-Axis
2000 MM
Table Cross Travel, X-Axis
2500 MM
Spindle Travel, W-Axis
550 MM
Column Infeed Travel, Z-Axis
1500 MM
Distance Spindle Center to Table Top
0 MM -1999 MM
Spindle Nose to Table Center
577 MM -2050 MM

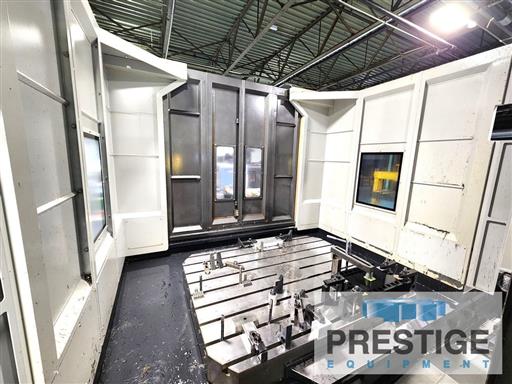

Table Size, B-Axis
1400 MM x 1798 MM
Rotary Table Weight Capacity
10000 KG
B-Axis Table Rotation
.001 Degree
Maximum Spindle Speeds
4,000 RPM
Rapid Traverse Rate (All Axes)
12000 MM/MIN
Cutting Feedrate (X/Y/Z Axes)
6025 MM/MIN
Overall Height
4862 MM
Floor Space
6980 MM x 7658 MM
Estimated Machine Weight
36000 KG
Equipped With:
Fanuc 31i-A CNC Control
B-Axis Built In Rotary Table
60-Station Automatic Tool Changer
Coolant Thru Spindle
Chip Conveyor
Full Enclosure
30 KW Main Motor
NOTE:
Machine is in Pristine Condition!
Inspect Under Power In USA Plant!

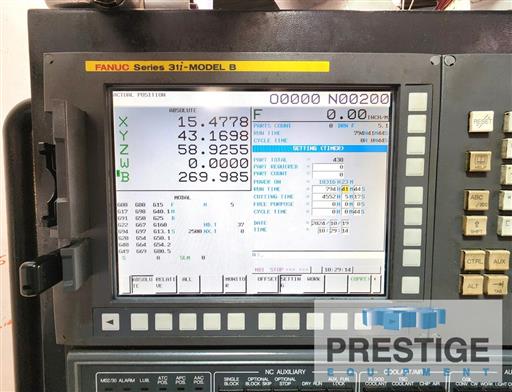

Hours:
18,188 Power On
4,522 Cutting Time Hours
746 Run Time Hours
Features:
✓
Fanuc 31i-A CNC Control
✓
Built In B-Axis Rotary Table
✓
60-Station Automatic Tool Changer
✓
Coolant Through Spindle
✓
Full Enclosure
