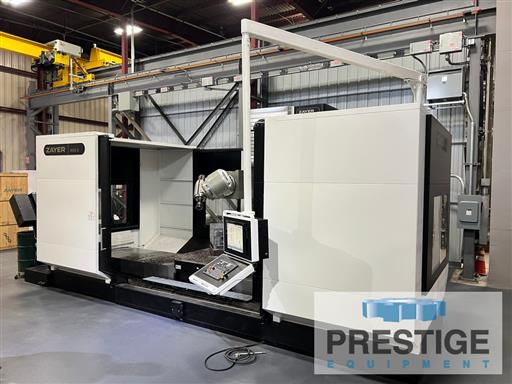

Zayer XIOSG 1500 6-Axis CNC Universal Milling Machine
Model:
XIOSG - Ram Type
Age:
2022
Ref#:
32053
Prestige Equipment is the world's leading provider of Zayer XIOSG 1500 6-Axis CNC Universal Milling Machine & machine tools & fabricating equipment. Take a look at our wide selection of new and used CNC Table Type Horizontal Boring Mills (HBM) for sale.
Product Specifications
Features:
✓
Mitsubishi M850W 6-Axis CNC Control
✓
Wireless Handwheel
✓

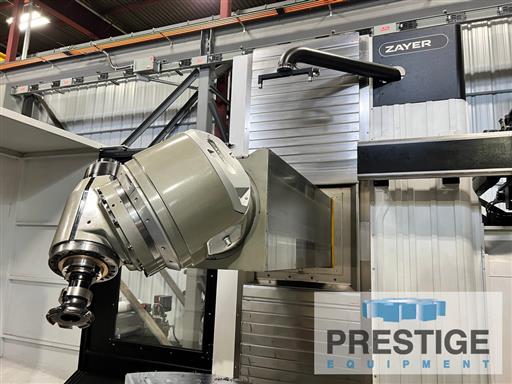

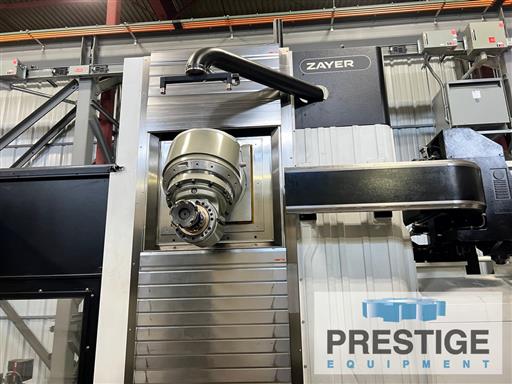

(No. 45) Full Continuous 2-Axis Universal Head
✓
40-Station Automatic Tool Changer
✓
Through Spindle Coolant, 6-37 Bar, 1000 PSI
✓
Tool Pre-Setter & Part Probe
✓
Dual Chip Conveyors
✓
Chip & Splash Enclosure
Product Specifications
CAPACITY:
Longitudinal Table Travel (X-Axis)
3000 MM
Vertical Travel Of Headstock (Y-Axis).. 1600 MM
1600 MM
Cross Travel Of Head (Z-Axis)
1500 MM
Table Size (T-Slotted)
1500 MM X 1500 MM
Number of Axis
6
Table Indexing, Continuous
.001 degrees
Spindle Taper
#50 Big Plus
Spindle Speeds (Inf. Variable)
6,000 RPM
Head Indexing, A-Axis Continuous
.001 degrees
Head Indexing, B-Axis Continuous
.001 degrees
Feeds, Up To
29997 MM/MIN
Rapids
34976 MM/MIN
Spindle Motor
31 KW (32KW)
Equipped With:
Mitsubishi M850W 6-Axis CNC Control
Wireless Handwheel
(No. 45) Full Continuous 2-Axis Universal Head
40-Station Automatic Tool Changer
Through Spindle Coolant, 6-37 Bar, 1000 PSI
Tool Pre-Setter & Part Probe
Dual Chip Conveyors
Chip & Splash Enclosure
NOTE:
Brand New, In-Stock In North America, Available Immediately!
Under Power for For Comprehensive Demonstration
Included:
Installation, Training & 1-Year Warrantee
Available at Additional Cost:
(No. 30) Full Continuous 2-Axis Universal Head
Call to Learn the Difference between the No. 30 & No. 45 Heads!
Both Heads Are In stock and Available Immediately!
Features:
✓
Mitsubishi M850W 6-Axis CNC Control
✓
Wireless Handwheel
✓
(No. 45) Full Continuous 2-Axis Universal Head
✓
40-Station Automatic Tool Changer
✓
Through Spindle Coolant, 6-37 Bar, 1000 PSI
✓
Tool Pre-Setter & Part Probe
✓
Dual Chip Conveyors
✓
Chip & Splash Enclosure
