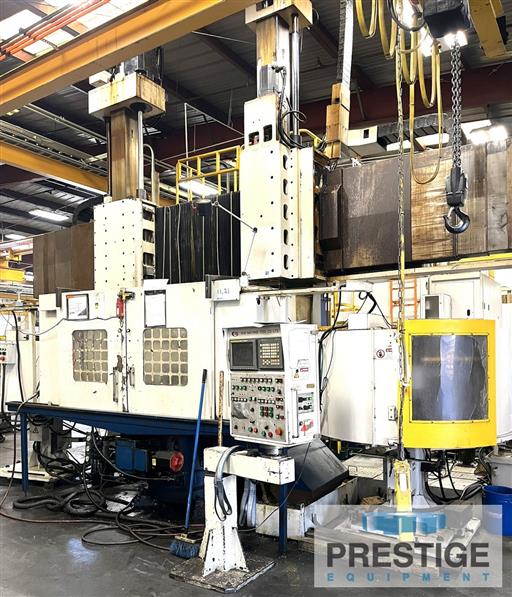

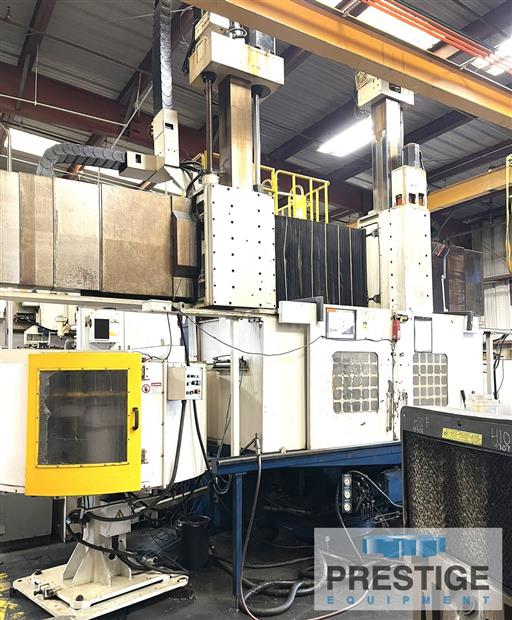

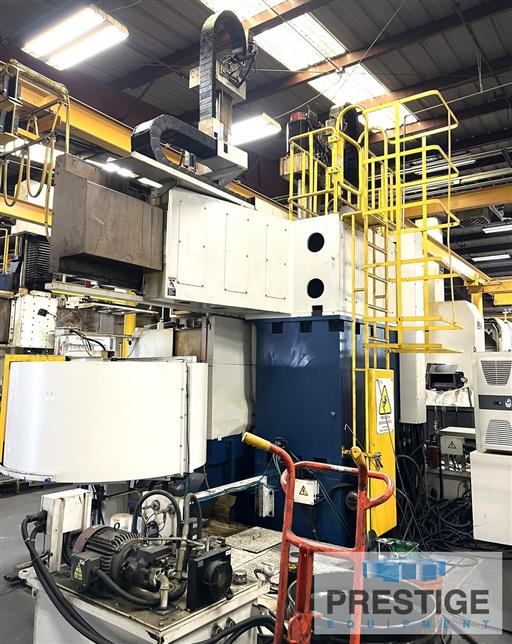

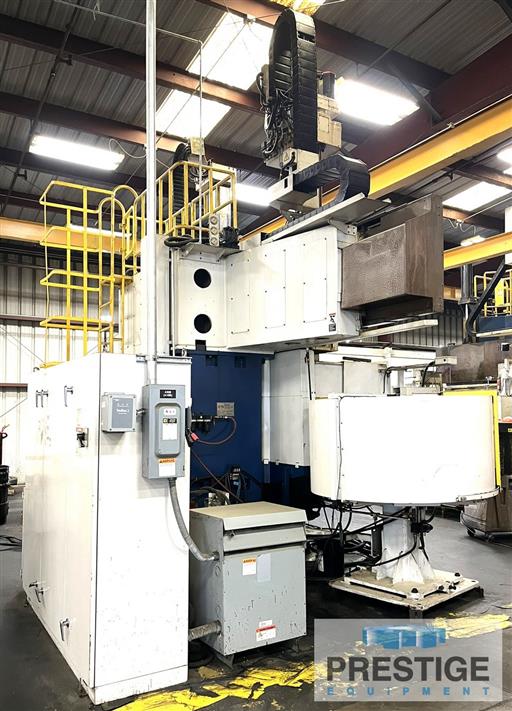

HNK NT-14/16FD CNC Vertical Lathe
Model:
NT-14/16FD
Age:
N/A
Ref#:
43872
Prestige Equipment is the world's leading provider of HNK NT-14/16FD CNC Vertical Lathe & machine tools & fabricating equipment. Take a look at our wide selection of new and used CNC Vertical Boring Mills (VBM) for sale.
Product Specifications
Features:
✓

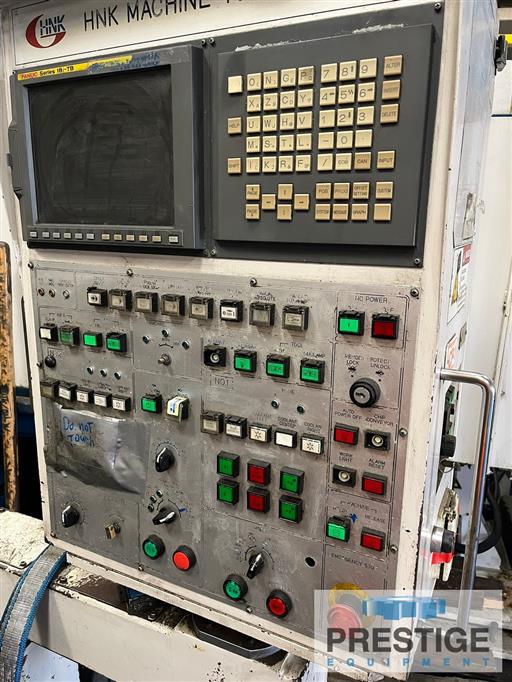

Fanuc 18T CNC Control
✓
(2) Vertical Rams
✓
(2) 12 Position Automatic Tool Changer
✓
Full Chip & Coolant Guards, Chip Conveyor
Product Specifications
Specifications:
Table Diameter
1400 MM
Maximum Swing
1600 MM
Maximum Turning Diameter
1600 MM
Maximum Turning Height
35.43
Ram Horiz. Travel, X-Axis Travel
1600 MM
Ram Stroke, Z-Axis
900 MM
Ram Cross Section
220 MM x 220 MM
Table Speeds, 2-Ranges
.9-360 RPM
Table Motor
37 KW / 45 KW
Machine Footprint
4877 MM x 3886 MM
Machine Height
4699 MM
Machine Weight
30980 KG .
Machine Electics
220/3/60
Equipped With:
Fanuc 18T CNC Control
(2) Vertical Rams
(2) 12 Position Automatic Tool Changer
Full Chip & Coolant Guards, Chip Conveyor
1 KW Main Motor
Features:
✓
Fanuc 18T CNC Control
✓
(2) Vertical Rams
✓
(2) 12 Position Automatic Tool Changer
✓
Full Chip & Coolant Guards, Chip Conveyor
