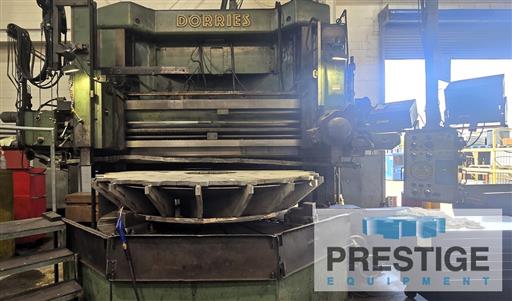

98" Dorries SD 250 Manual Vertical Boring Mill
Model:
SD 250
Age:
N/A
Ref#:
44261
Prestige Equipment is the world's leading provider of 98" Dorries SD 250 Manual Vertical Boring Mill & machine tools & fabricating equipment. Take a look at our wide selection of new and used Manual Vertical Boring Mills (VBM) for sale.
Product Specifications
Features:
✓
98.42" Face-Plate Type Chuck w/ 3 Jaws
✓

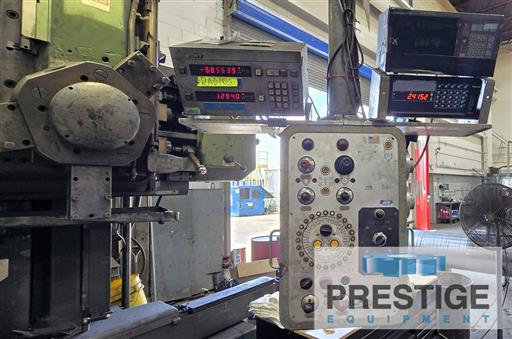

Sony Digital Readouts
✓
5-Position Turret Head
✓
Ram Head
✓
Side Head
✓
Operator Pendant Control
✓
Power Elevating Rail
Product Specifications
SPECIFICATION:
Table Diameter
98.42"
Maximum Part Swing
110.23"
Max. Swing w/ Side Head
100.39"
Max Height Under Rail
64.96"
Cross Rail Vertical
47.24"
Ram Stroke
39.37"
Turret Vertical
29.52"
Horizontal Travel of Side Head
29.52"
Table Speeds (24)
2.1 - 112 RPM
Table Weight Capacity
25,000 Lbs
Table Motor
75 HP
Equipped With:
98.42" Face-Plate Type Chuck w/ 3 Jaws
Sony Digital Readouts
5-Position Turret Head
Ram Head
Side Head
Operator Pendant Control
Power Elevating Rail
NOTE:
Inspect in Plant Under Power
Features:
✓
98.42" Face-Plate Type Chuck w/ 3 Jaws
✓
Sony Digital Readouts
✓
5-Position Turret Head
✓
Ram Head
✓
Side Head
✓
Operator Pendant Control
✓
Power Elevating Rail
