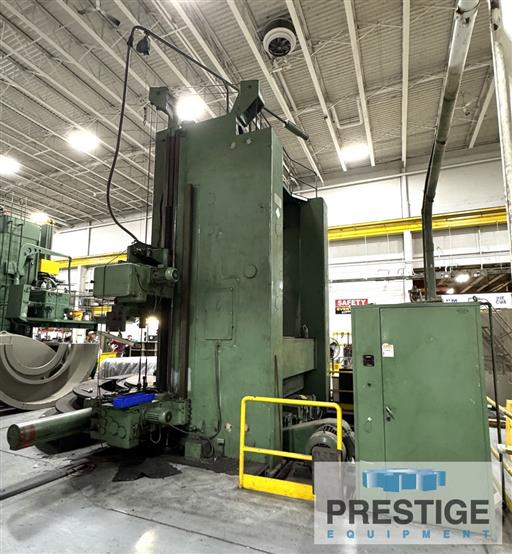

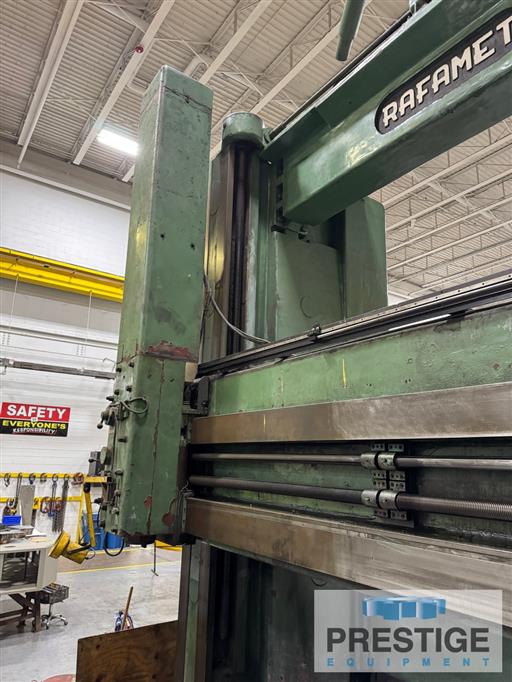

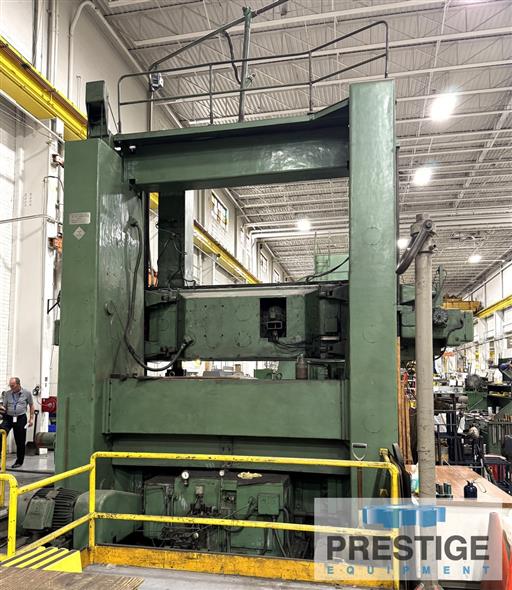

Rafamet 126" Vertical Boring Mill, 2-Rams, Side Head
Model:
KCFB-320
Age:
1974
Ref#:
44266
Prestige Equipment is the world's leading provider of Rafamet 126" Vertical Boring Mill, 2-Rams, Side Head & machine tools & fabricating equipment. Take a look at our wide selection of new and used Manual Vertical Boring Mills (VBM) for sale.
Product Specifications
Features:
✓

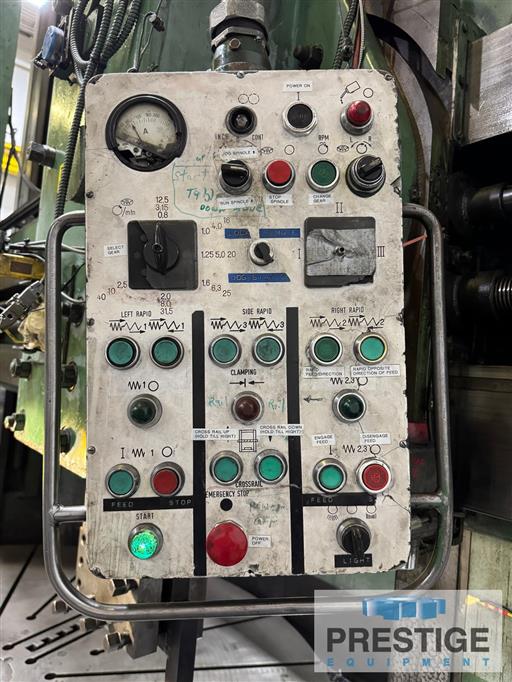

Pendant Controls
✓

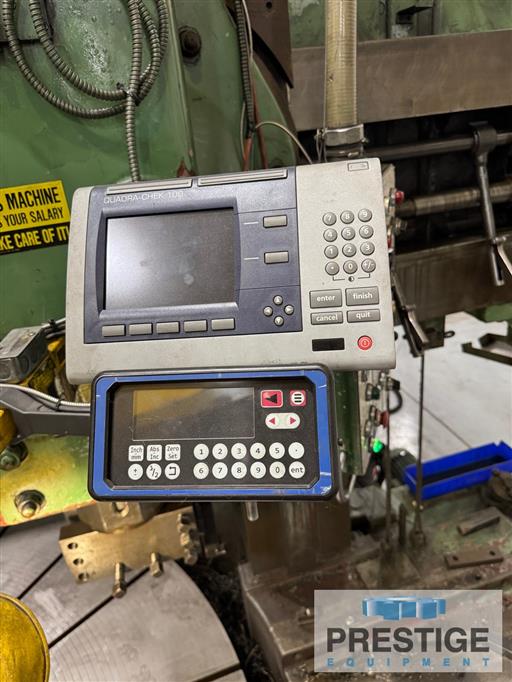

2-Axis Quadra Check Digital Readouts
✓
2-Swiveling Rams
✓
Right Hand Side Head
✓

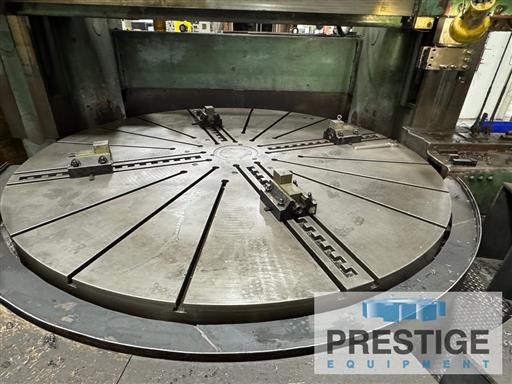

126" Face Plate Type Chuck with 4-Top Jaws
✓
Threading & Taper Turning
✓
74 HP Main Motor
Product Specifications
Serial Number
126240
Specifications:
Table Diameter
125.98"
Maximum Turning Diameter
137.79"
Maximum Height Under Rail
98.45"
Ram Stroke
39.47"
Ram Swivel
+/- 30 Degrees
Minimum Distance Between Rams
20"
Table Speeds (18)
.8-40 RPM
Feeds (18)
.0049-.2188 IPR
Threading, Inch
1-11 TPI
Threading, Metric
2-20 MM
Table Load Capacity
55,000 Lbs
Machine Weight
170,000 Lbs
Floor Space L-R x F-B
259" x 245"
Overall Height
304"
Equipped With:
Pendant Controls
2-Axis Quadra Check Digital Readouts
2-Swiveling Rams
Right Hand Side Head
126" Face Plate Type Chuck with 4-Top Jaws
Threading & Taper Turning
74 HP Main Motor
Note:
Left Ram is Not Operational
Features:
✓
Pendant Controls
✓
2-Axis Quadra Check Digital Readouts
✓
2-Swiveling Rams
✓
Right Hand Side Head
✓
126" Face Plate Type Chuck with 4-Top Jaws
✓
Threading & Taper Turning
✓
74 HP Main Motor
