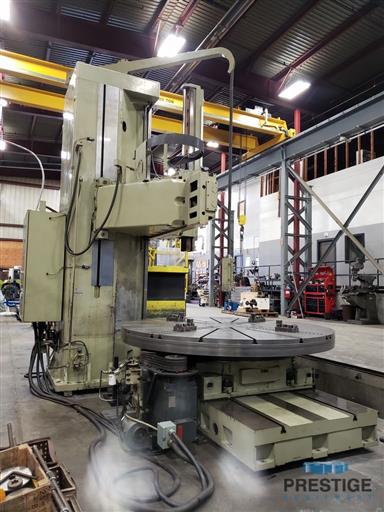

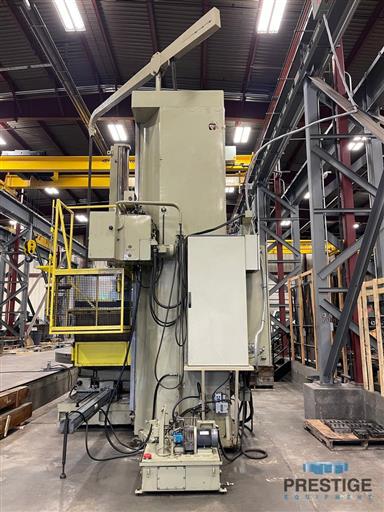

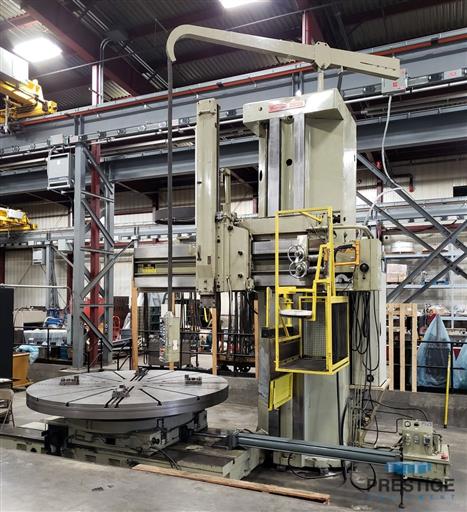

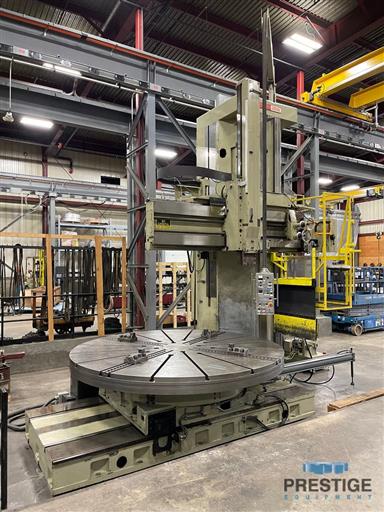

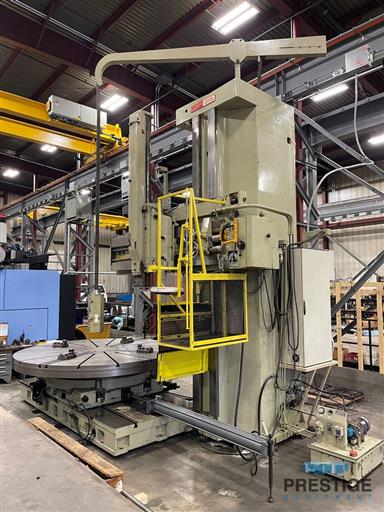

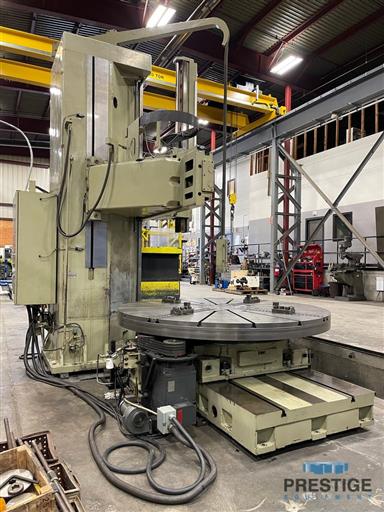

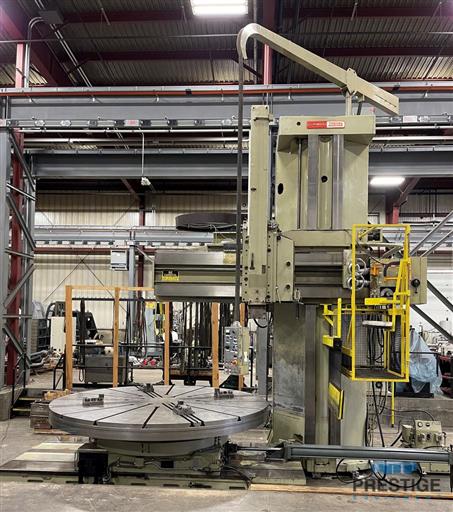

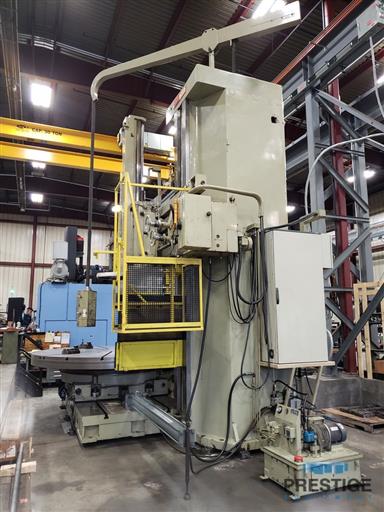

Toshiba TSS30/55A 2997 MM /5486 MM Openside Vertical Boring Mill
Model:
TSS30/55 Openside
Age:
N/A
Ref#:
31310
Prestige Equipment is the world's leading provider of Toshiba TSS30/55A 2997 MM /5486 MM Openside Vertical Boring Mill & machine tools & fabricating equipment. Take a look at our wide selection of new and used Manual Vertical Boring Mills (VBM) for sale.
Product Specifications
Features:
✓

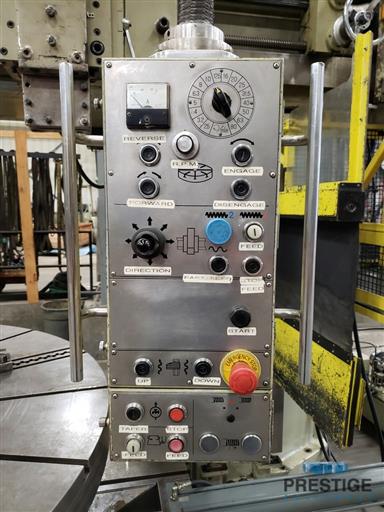

Full Pendant Control w/ Joystick
✓
2997 MM Face Plate Type Chuck with 4-Top Jaws
✓
Threading
✓
Digital Readout
✓
Operator Platform
✓
Variable Speed Table
✓
Table on Infeed Slide for extended travel
✓
Hydraulic Table Positioning
✓
63 KW (63 KW) Main Motor
Product Specifications
CAPACITY:
Table Diameter
2997 MM
Maximum Swing
5499 MM
Maximum Swing For Center Turn
3988 MM
Maximum Height Under Rail
2784 MM
Height Under Tool
2601 MM
Cross Rail Travel
1346 MM
Ram Stroke
1245 MM
Ram Tilt (+/-)
+/- 30 Degrees
Table Speeds (16)
1.25-80 RPM
Feeds
.0008-.8 IPR
Threading Range:
Threading Range , Metric
1-16 mm
Machine Footprint
8509 MM x 6604 MM
Machine Height
6807 MM
Machine Net Weight
34019 KG
Equipped With:
Full pendant Control w/ Joystick
2997 MM Face Plate Type Chuck with 4-Top Jaws
Threading
Digital Readout
Operator Platform
Variable Speed Table
Table on Infeed Slide for extended travel
Hydraulic Table Positioning
63 KW (63 KW) Main Motor
Note:
Inspect Under Power!
Offer includes Disassembly and Loading to Trucks!
Features:
✓
Full Pendant Control w/ Joystick
✓
2997 MM Face Plate Type Chuck with 4-Top Jaws
✓
Threading
✓
Digital Readout
✓
Operator Platform
✓
Variable Speed Table
✓
Table on Infeed Slide for extended travel
✓
Hydraulic Table Positioning
✓
63 KW (63 KW) Main Motor
