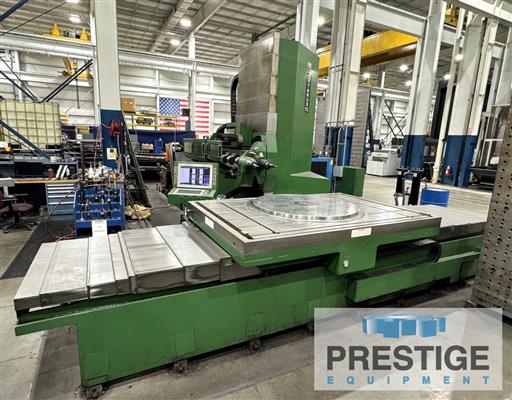

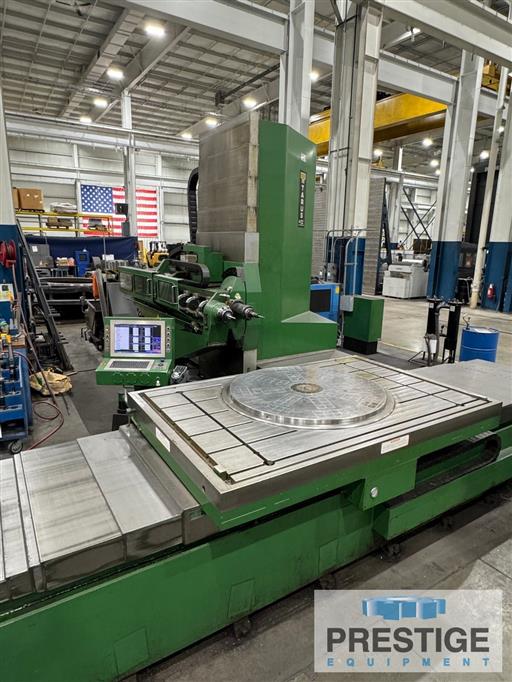

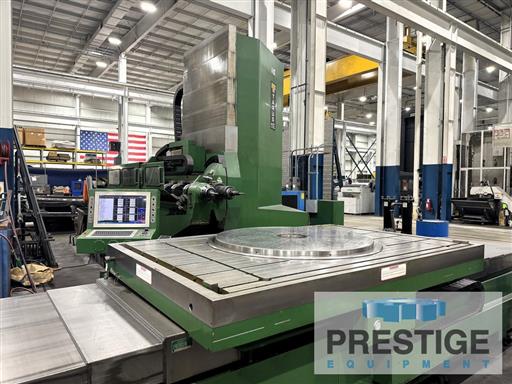

Tarus GDTTC510-6XRT CNC Deep Hole Gun Drilling Machine

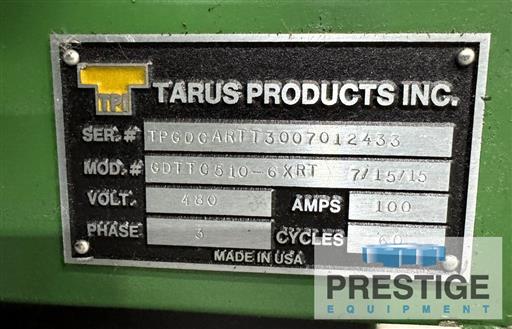

Model:
GDTTC510-6XRT
Age:
2015
Ref#:
44756
Prestige Equipment is the world's leading provider of Tarus GDTTC510-6XRT CNC Deep Hole Gun Drilling Machine & machine tools & fabricating equipment. Take a look at our wide selection of new and used Gun Drills for sale.
Product Specifications
Features:
✓
Tarus Aldebaran CNC Control
✓
1339 MM Built In Magnetic Rotary Table
✓
Tilting Head
✓
Cat 50 Auxiliary Milling Spindle
✓
High Pressure Coolant System
Product Specifications
SPECIFICATIONS:
Max. Drilling Diameter
51 MM
Maximum Drill Stroke
2372 MM
X-Axis Travel, Table Travel
3302 MM
Y-Axis Travel, Vertical Head Travel..... 1524 MM
1524 MM
Z-Axis Travel, Column In & Out.......... 1168 MM
1168 MM
B-Axis Table Rotation
360,000 Positions
Head Tilt, Infinite..................... +/- 15 Degrees
+/- 15 Degrees
T-Slotted Table Size
1575 MM x 2438 MM
Built-In Magnetic B-Axis Rotary Table
1340 MM
Table Weight Capacity
27216 KG
Drilling Spindle Speeds, Inf Variable
To 3,394 RPM
Auxiliary Spindle Milling Speed
To 2,000 RPM
Spindle Motor
25 KW
Equipped With:

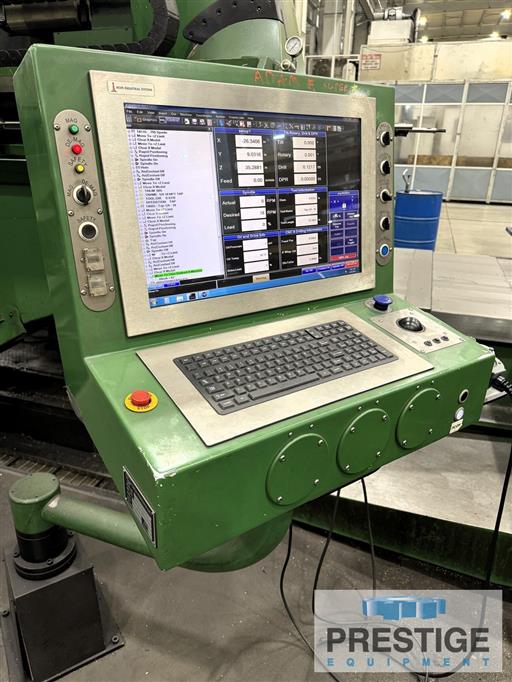

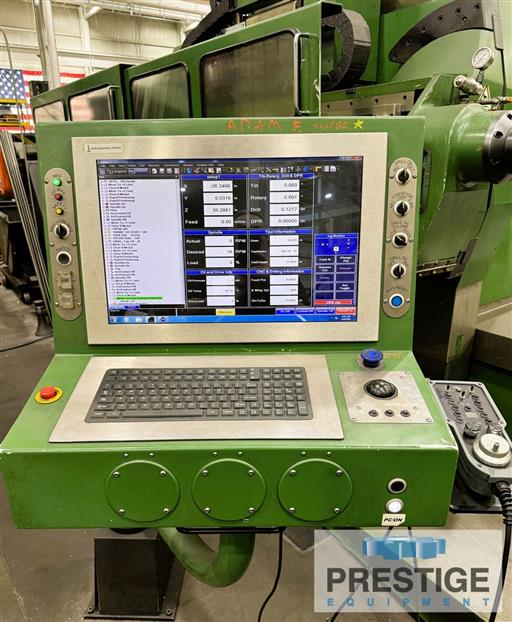

Tarus Aldebaran CNC Control

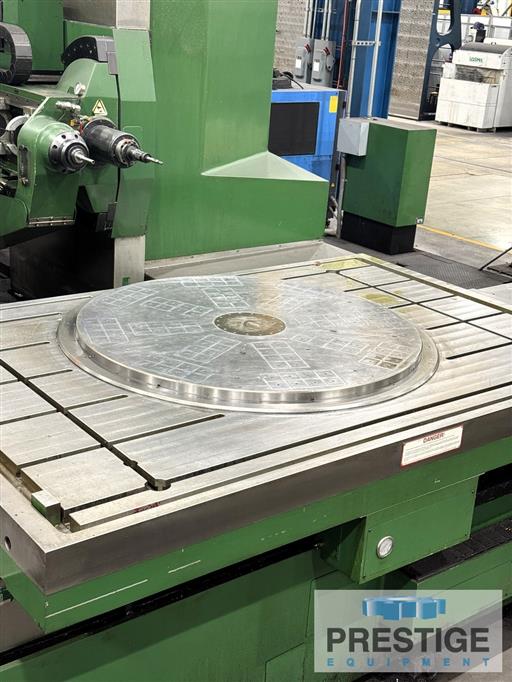

1339 MM Built In Magnetic Rotary Table (Full B-Axis)
Tilting Head +/- 15 Degrees

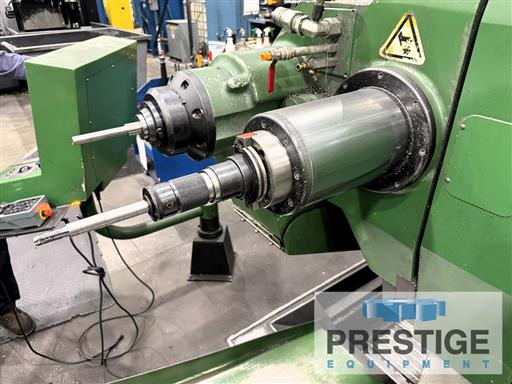

Cat 50 Auxiliary Milling Spindle
High Pressure Coolant System

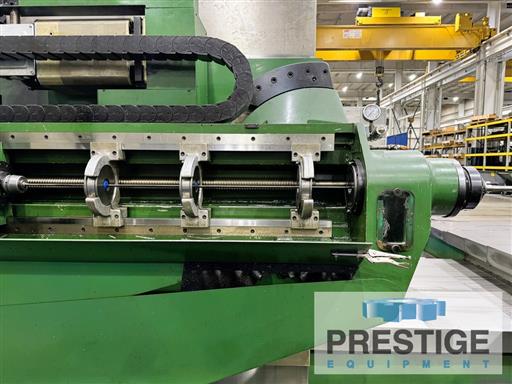

3 Whip Guides

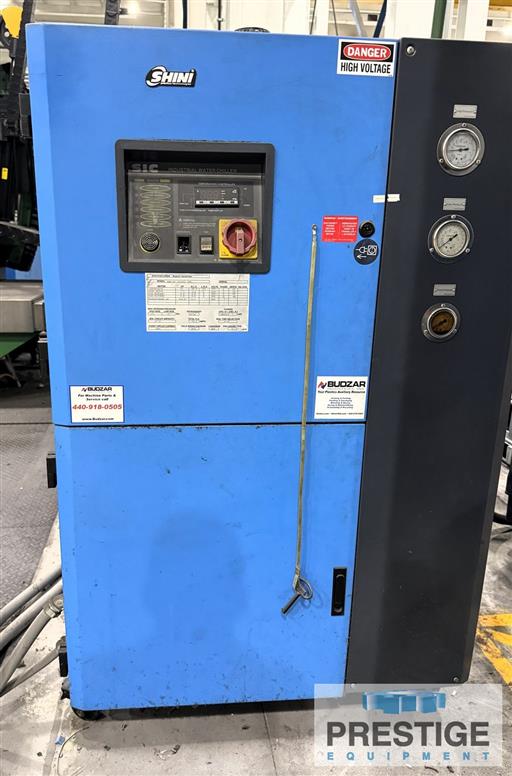

Coolant Chiller
Precision Ground Ball Screws
Box Way Construction
Telescopic Steel Way Covers
CNC Machining, Tapping, Chamfering and Thread Milling

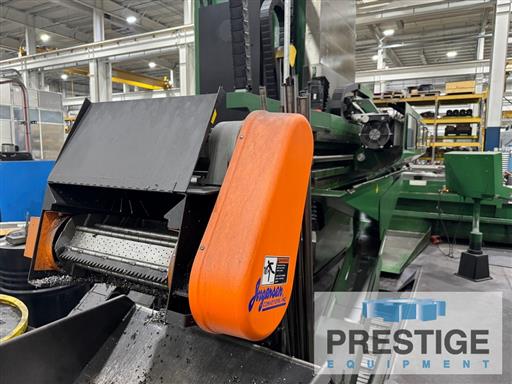

Jorgensen Chip Conveyor
Auction Message:
To Be Sold at Auction 4/9 - Surplus to Strohwig Industries
View The Auction
Features:
✓
Tarus Aldebaran CNC Control
✓
1339 MM Built In Magnetic Rotary Table
✓
Tilting Head
✓
Cat 50 Auxiliary Milling Spindle
✓
High Pressure Coolant System
