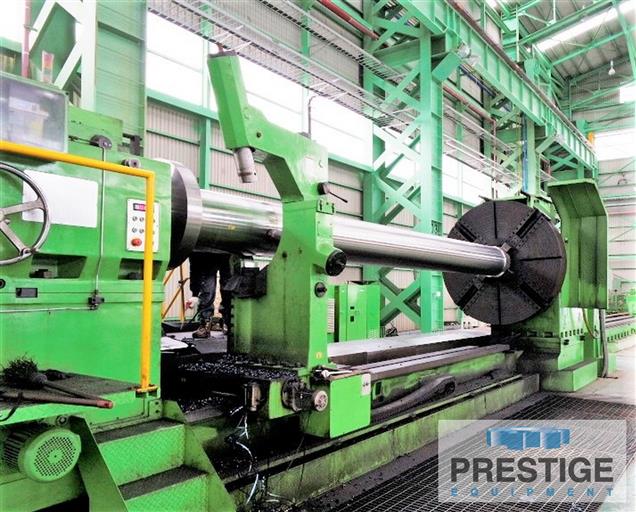

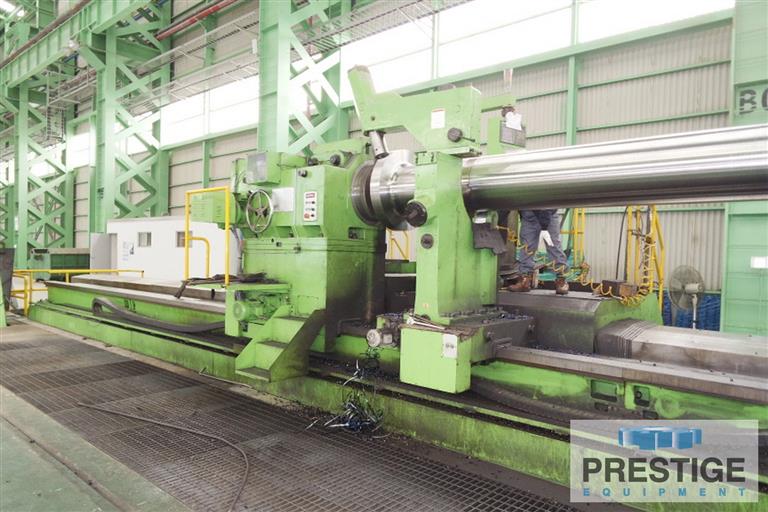

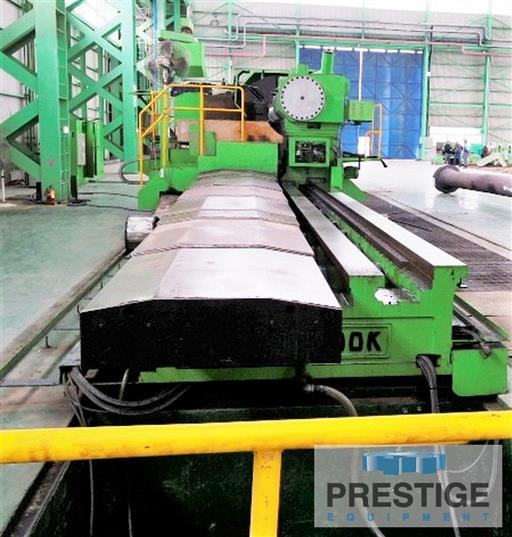

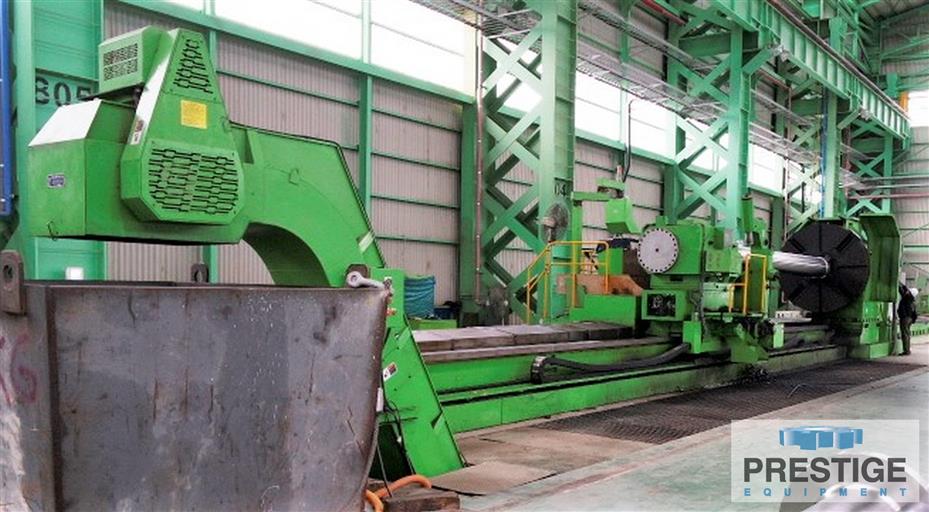

Prestige Equipment is the world's leading provider of 2184 MM x 14986 MM Hankook R70W Heavy Duty CNC Roll Lathe & machine tools & fabricating equipment. Take a look at our wide selection of new and used Manual & CNC Flat Bed Lathes for sale.
Product Specifications
Features:
✓

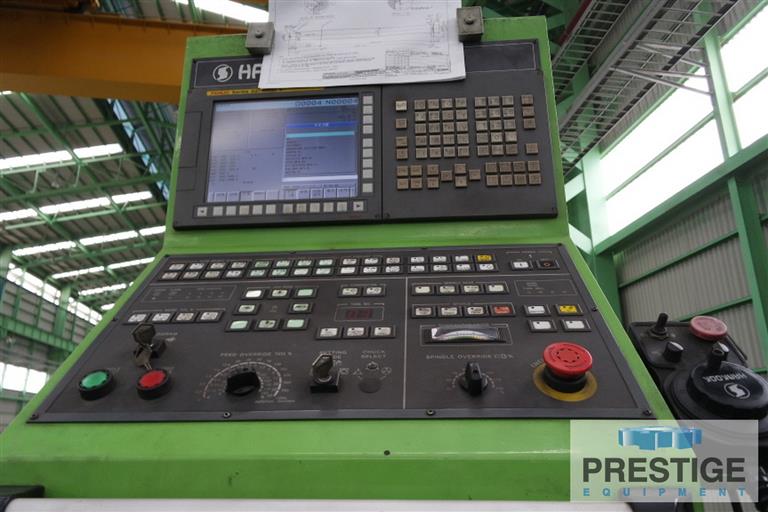

Fanuc 32iT CNC Control
✓
4-Way Bed - Carriage Can Pass Steady Rests And Tailstock!
✓
70 Ton Weight Capacity
Product Specifications
Serial Number
41J09077
CAPACITY:
Maximum Swing Over Bedways
2250 MM
Maximum Swing Over Cross Slide
1800 MM
Distance Between Centers
15000 MM
Rapid Traverse (X-axis)
3988 MM/MIN
Rapid Traverse (Z-axis)
6680 MM/MIN
Spindle Speeds:
Spindle Motor
160 KW
Max Spindle Torque
86,400 Ft. Lbs
Max Load Between Centers
69989 KG
Equipped With:
FANUC 32iT CNC Control

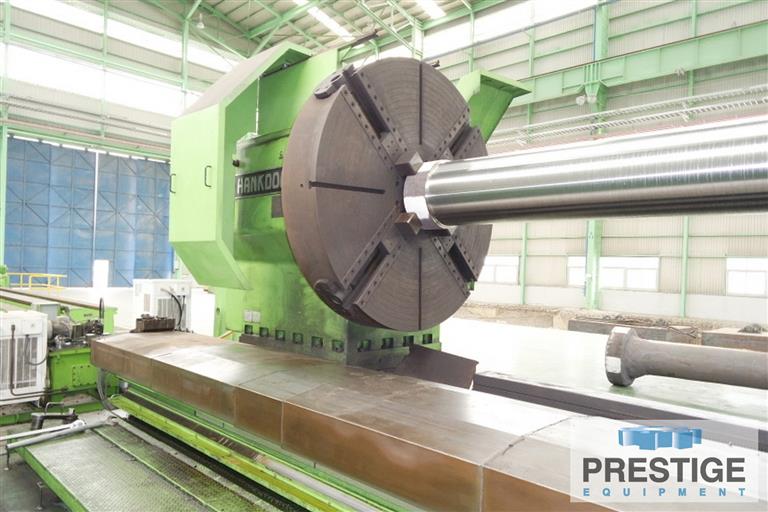

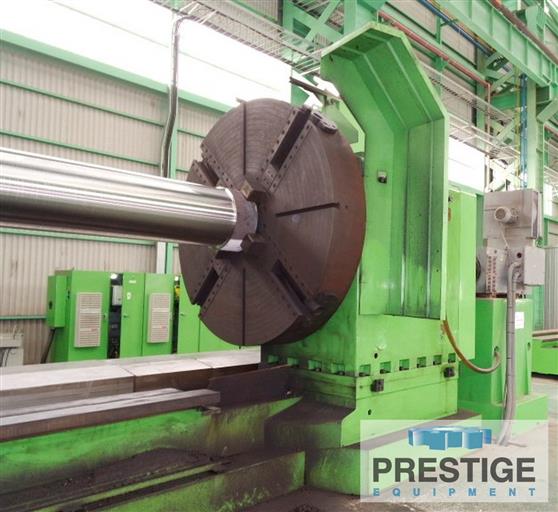

4-Jaw Chuck
Telescoping Steel Way Covers
Steady Rest
4-Way Bed
Note:
Carriage Can Pass the Steady Rests and Tailstock!
Features:
✓
Fanuc 32iT CNC Control
✓
4-Way Bed - Carriage Can Pass Steady Rests And Tailstock!
✓
70 Ton Weight Capacity
