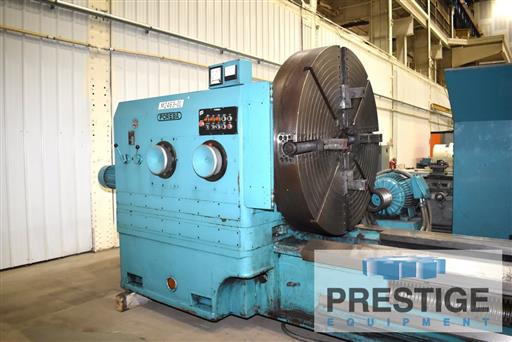

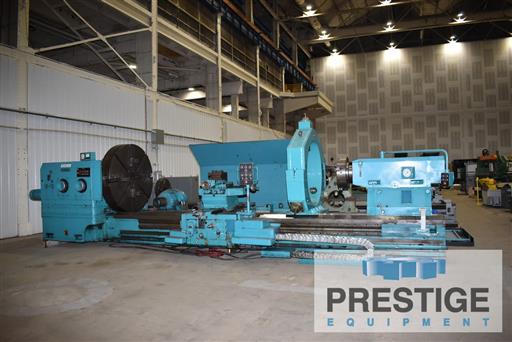

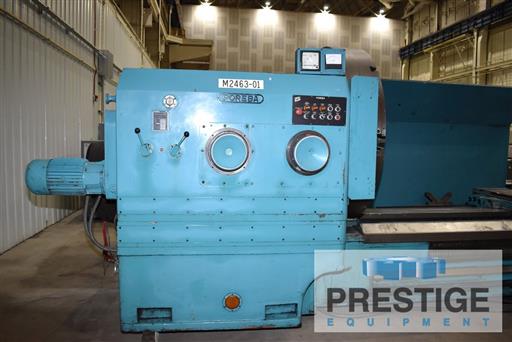

Poreba 63" x 200" TCG-160 Heavy Duty Manual Engine Lathe

Model:
TCG-160 x 5M
Age:
1983
Ref#:
32138
View Video
Prestige Equipment is the world's leading provider of Poreba 63" x 200" TCG-160 Heavy Duty Manual Engine Lathe & machine tools & fabricating equipment. Take a look at our wide selection of new and used Manual & CNC Flat Bed Lathes for sale.
Product Specifications
Features:
100 HP Spindle Motor
40 Ton Weight Capacity
Inch/Metric Threading
50" Dia. Steady Rest
Product Specifications
SPECIFICATIONS:
Maximum Swing Over Bedways
62.99"
Maximum Swing Over Cross Slide
51.18"
Distance Between Centers
196.8"
Width Of Bed
63"
Spindle Bore
4.13"
Spindle Speeds (24)
1.6-200 RPM
Diameter of Spindle Front Journal
10.25"
Longitudinal Feeds (20)
0.007-0.2 IPR
Cross Feeds (20)
0.0035-0.1 IPR
Rapid Traverse
158 IPM
Metric Threading
1 to 129
Inch Threading
30 to 1/8
Tailstock Quill Diameter
11.02"
Tailstock Quill Travel
23.62"
Weight Capacity Between Centers
66,000 lbs
Weight Capacity With One Steady Rest
77,000 lbs
Weight Capacity With Two Steady Rest
88,000 lbs
Equipped With:

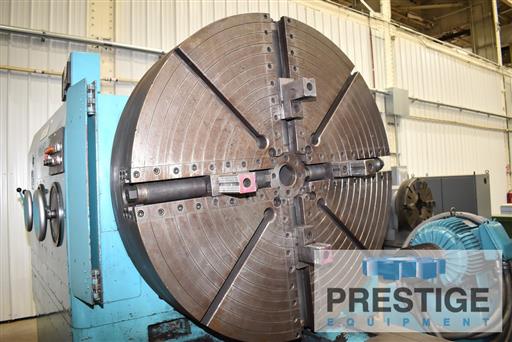

63" 4-Jaw Chuck
Inch/Metric Threading
Power Compound for Taper Turning

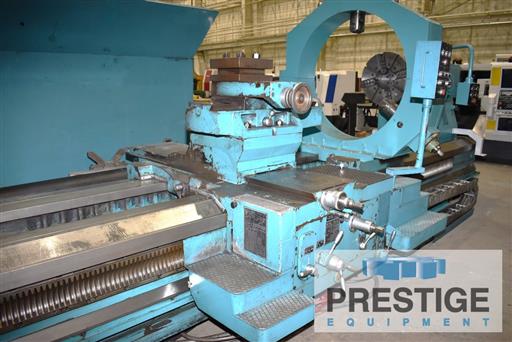

Pendant Station on Carriage
4-Way Tool Post
Hardened Ways
50" Dia. Steady Rest
24" 4-Jaw Chuck in Tailstock
Built In Live Center Tailstock w/ Locking Capability
Power Tailstock Quill
Power Tailstock
100 HP Main Spindle Motor
NOTES:
Features:
100 HP Spindle Motor
40 Ton Weight Capacity
Inch/Metric Threading
50" Dia. Steady Rest
