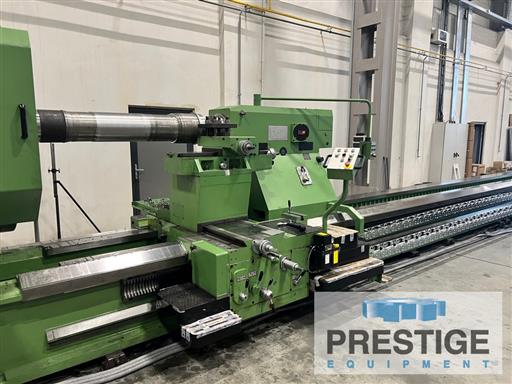

Poreba TCG-200 x 14M Heavy Duty Conventional Lathe

Model:
TCG-200/14M
Age:
N/A
Ref#:
32414
Prestige Equipment is the world's leading provider of Poreba TCG-200 x 14M Heavy Duty Conventional Lathe & machine tools & fabricating equipment. Take a look at our wide selection of new and used Manual & CNC Flat Bed Lathes for sale.
Product Specifications
Features:
New Electrics 2024
1600 MM 4-Jaw Independent Chuck
75 KW Main Motor
Inch/Metric Threading
29937 KG Unsupported Weight Capacity
Product Specifications
CAPACITY:
Maximum Swing Over Bedways
2000 MM
Maximum Swing Over Carriage
1680 MM
Distance Between Centers
14000 MM
Spindle Speeds
0.8-160 RPM
Spindle Speeds, Number
24
Spindle Speed Ranges
3
Spindle Bore
105 MM
Spindle Torque, Maximum
63,000 Nm
Width of Bed
1500 MM
Longitudinal Feed Rates
0.007-6.29 IPR
Overall Feed Rates
331 MM/MIN
Rapid Traverse
4000 MM/MIN
Threading, Metric
1-192 MM
Threading, Inch
.125-30 TPI
Front Bearing Diameter
320 MM
Tailstock Diameter
280 MM
Tailstock Quill Travel
200 MM
Tailstock Quill Rapid Traverse
300 MM/MIN
Tailstock Rapid Traverse On Bed
1500 MM/MIN
Weight Capacity Between Centers
29937 KG
Weight Capacity with One Steady Rest
34927 KG
Weight Capacity with Two Steady Rest
39916 KG
Equipped With:
1600 MM 4-Jaw Independent Chuck

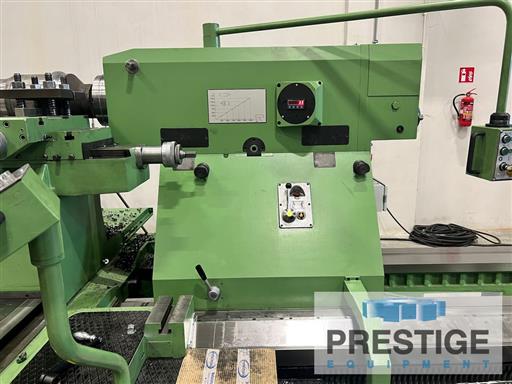

Operator Controls On Carriage
Inch/Metric Threading
Power Compound
6-Way Power Rapid Traverse

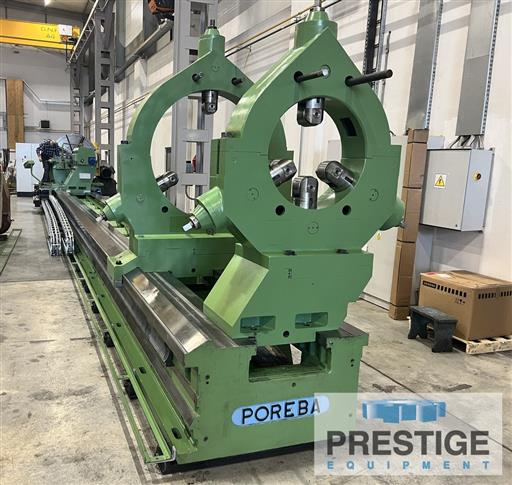

(1) 250 MM - 599 MM Roller Type Steady Rest
(1) 700 MM - 1100 MM Roller Type Steady Rest
Power Tailstock and Quill
Hardened & Ground Replaceable Bedways
Hardened and Ground Gears & Spline Shafts
Heavy Duty Meehanite Casting
75 KW Main Drive 440 Volt
NOTE:
New Electrics 2024
NOTE:
Delivery 7 Months From Order
Refurbished:
new cable conveyor (Kabelschlepp) for the apron and tailstock) the conveyors must be new,
new paiting, green (RAL 6011)
1 set of leveling pads (no foundation bolts)
cleaning all units of the lathe (headstock, apron, tailstock, carriage and bed),
new bronze worm and bearing on this axis for the apron
1 set of new V belts,
new cross spindle and nuts and new spindels for top slide,
new bearings on the tailstock spindle in 5 class,
centers 60 deg. for the headstock and tailstock,

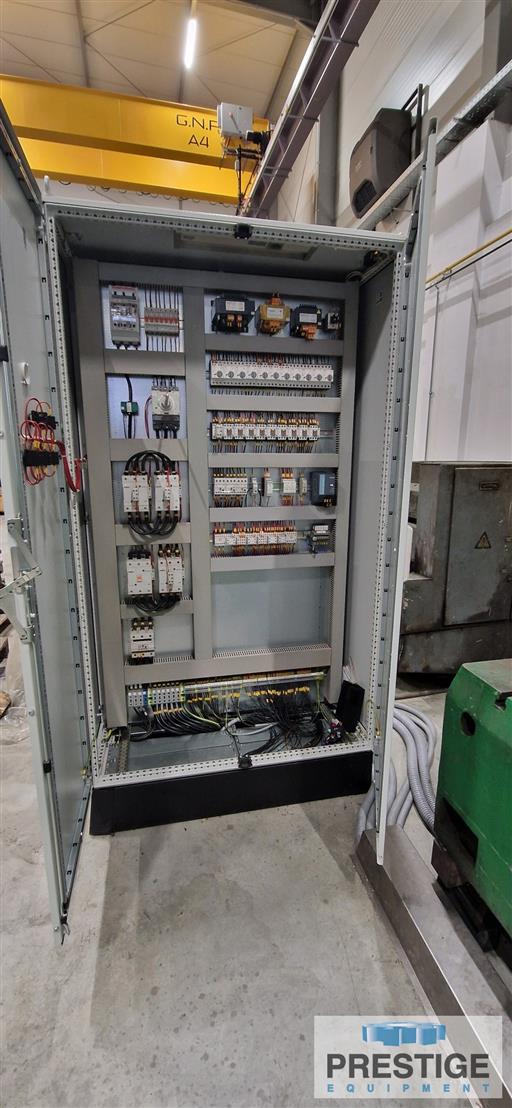

new electrical cabinet with new equipment with 460V transformer in the cabinet
new wires between cabinet and machine,
new wipers for the cariagge and tailstock,
geomerty acc. ISO 1708
Features:
New Electrics 2024
1600 MM 4-Jaw Independent Chuck
75 KW Main Motor
Inch/Metric Threading
29937 KG Unsupported Weight Capacity
